Product modifications
•
The product has been designed, manufactured and certified as defined by ELATEC.
Any product modifications not expressly approved by ELATEC, including – but not limited to – modifications of antennas
or other radio-related components, is not allowed and will void the warranty and all approvals granted to the product.
If you are unsure about any part of the safety information above, contact ELATEC support.
Any failure to observe the safety information above will be considered misuse and will void the warranty. ELATEC is not responsible
for any damage or injuries resulting from any misuse of the product.
4 TECHNICAL DATA

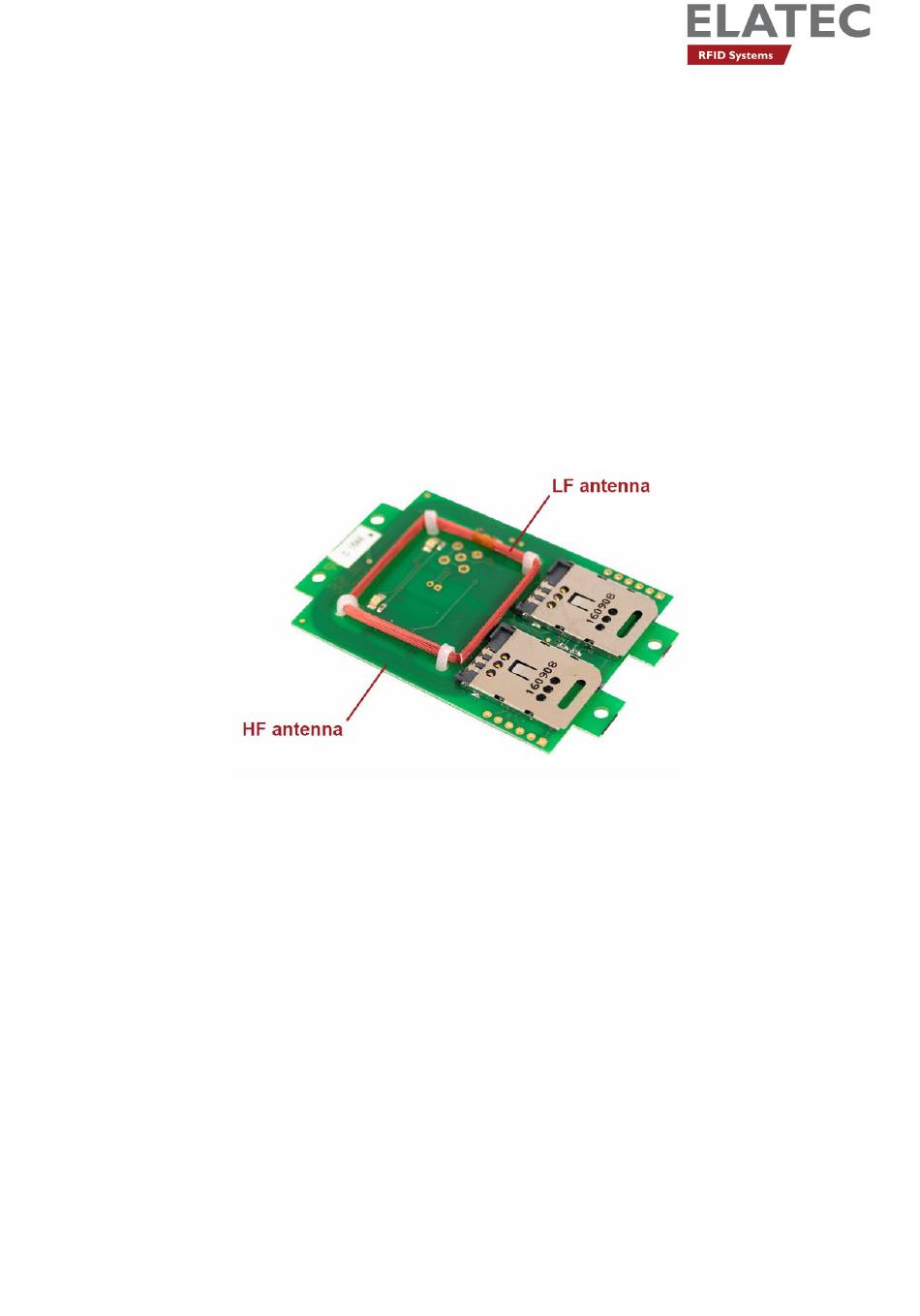

The reader module is equipped with the following antennas:
HF antenna (13.56 MHz)
Dimensions: 44 x 46 mm / 1.73 x 1.81 inch
Number of turns: 3
LF antenna (125 kHz)
Dimensions: 29 x 32 mm / 1.14 x 1.26 inch
Number of turns: 164
For more information, refer to the related product data sheet or other technical documents.
© 2021 ELATEC GmbH – TWN4 MultiTech M user manual DocRev1 – 07/2021
TWN4 MultiTech M
Page 5 of 10
