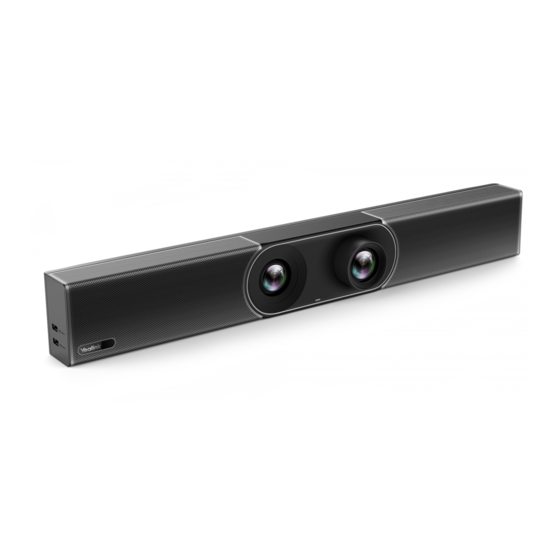

Yealink MeetingEye 600 Quick Start Manual
Video conferencing endpoint
Hide thumbs
Also See for MeetingEye 600:
- Administrator's manual (281 pages) ,
- User manual (55 pages) ,
- Manual manual (6 pages)
Subscribe to Our Youtube Channel
Related Manuals for Yealink MeetingEye 600
Summary of Contents for Yealink MeetingEye 600
- Page 1 Yealink Network Technology CO., LTD Yealink MeetingEye 600 Video Conferencing Endpoint Quick Start Guide V1.0 English |...
-
Page 2: Package Contents
We recommend that you use the accessories provided or approved by Yealink. The use of unapproved third-party accessories may result in reduced performance. Use the Yealink original power adapter (48V/0.7A) to charge the endpoint only. The use of the third-party power adapter may cause the damage to the endpoint. - Page 3 2. Wall Mounting the bracket to mount your endpoint on a wall. The mounting height affects your camera view. The recommended height is 1.6m above the ground. T4×30 screws Hole depth: 30mm Hole diameter: 6mm...
-
Page 4: Wireless Sharing
3. Adjusting the Camera Tilt 15° 15° Endpoint Connections 1.8m 3m Ethernet Cable HDMI Cable Power Adapter Display Wireless Sharing WPP20 Wireless Presentation Pod For more information on WPP20 wireless presentation pod, refer to Yealink WPP20 Wireless Presentation Pod Quick Start Guide. -
Page 5: Remote Control
Remote Control Cable Ties Installation Network Environment Bandwidth Requirements Video Resolution Recommended Bandwidth Full HD 4K30/1080P60 People 1080P60+Content 1080P60 Both downlink bandwidth and uplink bandwidth should meet above requirements. The bandwidth mentioned above is based on a two-way call. Bandwidth in head office should be increased along with the growing number of connected branch offices. - Page 6 Traditional Deployment Do one of the following to deploy the endpoint: Option1: Assign a static public IP address to your endpoint. Option2: If you deploy the endpoint in an Intranet (behind the firewall), assign a static private IP address to it and do port mapping on the firewall. Option3: Deploy the endpoint using intelligent traversal.
-
Page 7: Configuring Static Nat
Troubleshooting Connectivity Testing After installation and deployment, you can test the endpoint by dialing the Yealink Demo Room (117.28.251.50 or 117.28.234.45 ). If you can’t dial out successfully, please contact your IT administrator to check the network. Configuring Static NAT... - Page 8 MeetingEye 600...
- Page 10 15° 15° Display...
- Page 14 We are not liable for problems with accept any interference received, including interference that may cause undesired Yealink device arising from the use of this product; we are not liable for operation.
