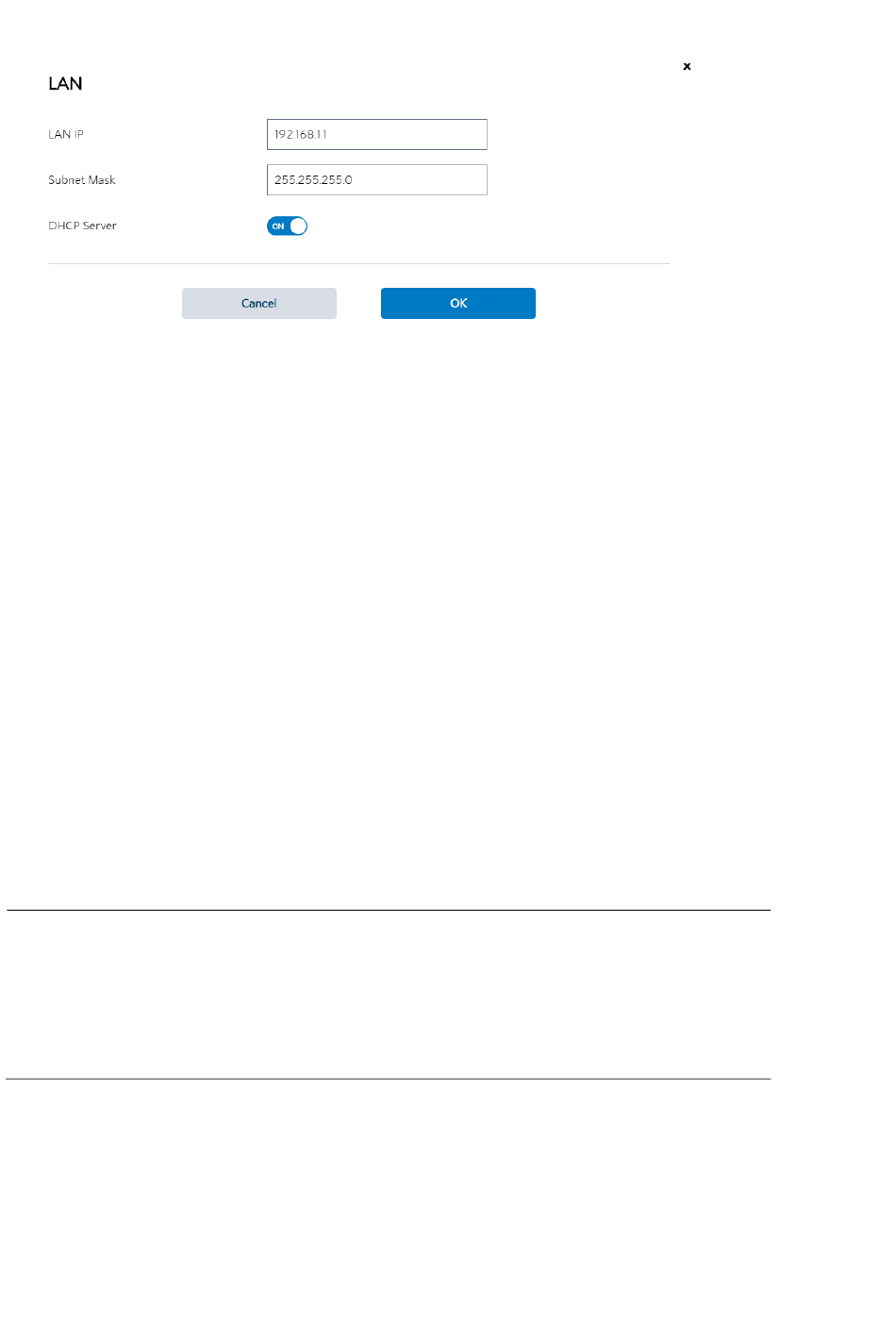

Steps to modify LAN IP settings:
1. From the navigation panel, go to Basic > Router.
2. LAN IP: The LAN IP address of the WiFi Router. Its default value is 192.168.1.1. In
IP-based networks, packets are sent to the network devices' specific IP addresses.
3. Subnet Mask: Subnet mask of WiFi Router. Its default value is 255.255.255.0
4. DHCP Server: DHCP (Dynamic Host Configuration Protocol) is mostly used to
allocate IP address for LAN-side devices. And a DHCP server can inform LAN-side
devices of DNS server's address, default gateway IP and etc. This WiFi Router can
allocate 253 IP addresses at most.
NOTE:
It's recommended for administrator to select DHCP Server for
LAN IP setting. If not, administrator has to assign IP address to LAN-side
device manually.
5. Click OK.
19
