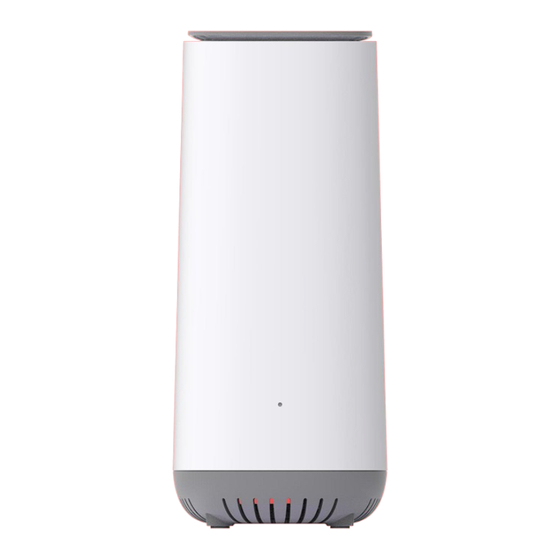

Askey EAI2326 User Manual

Enterprise wi-fi 6 router
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Guide
Enterprise Wi-Fi 6 Router
EAI2326

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EAI2326 and is the answer not in the manual?

Questions and answers

Related Manuals for Askey EAI2326

Summary of Contents for Askey EAI2326

  • Page 1 User Guide Enterprise Wi-Fi 6 Router EAI2326...

  • Page 2: Table Of Contents

    1. What’s in the box .................1 2. Getting to know your Router ............2 3. Installation ..................4 3.1 Setting up the Wi-Fi Router ..................5 3.2 Setup requirements ....................5 4. Configure your AP ................6 4.1 Login to the Web User Interface ................6 4.2 Quick Setup ........................

  • Page 3: What's In The Box

    AC power adapter.  Quick Start Guide.  Ethernet cable  If any items are missing or damaged, please contact your dealer. Please keep original packing materials in case you need to return the product for repairing. Model Number EAI2326...

  • Page 4: Getting To Know Your Router

    Press and hold for 5 seconds Reset to factory defaults. Router Press and release WPS paring. Extender Press and hold for 5 seconds Mesh onboarding. [WPS] Press and release, then [Reset] Mixed Switch to Extender. Press and hold for 5 seconds Model Number EAI2326...
  • Page 5 Reset to factory defaults. Mesh Solid GREEN Broadband connected. Router SYSTEM Solid BLUE Mesh connected. Extender Solid YELLOW Poor Mesh signal. Solid No Internet or Mesh disconnected. Cycling between BLUE GREEN WPS paring. Flashing BLUE Mesh onboarding. Model Number EAI2326...

  • Page 6: Installation

    3. Installation 1. Plug the power cord into the POWER jack and the ISP network cable into the WAN port. 2. Press the router’s power switch on, then head to 4. Configure your Router setup your Wi-Fi Router. Model Number EAI2326...

  • Page 7: Setting Up The Wi-Fi Router

    • Ethernet RJ-45 (LAN) port • Or IEEE 802.11a/b/g/n/ac/ax wireless capability • An installed TCP/IP service • Web browser such as Internet Explorer, Firefox, Safari, or Google Chrome Model Number EAI2326...

  • Page 8: Configure Your Ap

    2. Open a web browser and enter the AP’s default address http://192.168.50.1 (mesh router mode) in the address bar. 3. Log into the Web UI using the default username: admin and password. The default password was printed on the label. Model Number EAI2326...

  • Page 9: Quick Setup

    Quick Setup Operation Mode Setup Please go to Network > Operation Mode page to setup operation mode. Model Number EAI2326...
  • Page 10 WAN Port with Ethernet WAN. Mesh Router connect RE with Ethernet LAN cable. When Ethernet Mesh set up successful, the Extender will turn solid blue. Then you can remove the Ethernet cable of the Extender and Extender will set up Wi-Fi Mesh. Model Number EAI2326...
  • Page 11 Move Wi-Fi Clients to Rooms Administrator can move Wi-Fi clients in waiting room to rooms. After approved by administrator to rooms, the Wi-Fi clients will get room subnet IP and can get access to internet. Model Number EAI2326...
  • Page 12 Model Number EAI2326...
  • Page 13 Enable Blocked devices in Approved Devices, the device will be unable access to internet. Configure parental control rules Add parental control rules to rooms, all the devices in this room can only access the website (in specific time) as configured. Model Number EAI2326...
  • Page 14 Grant room authority to other rooms. For example, grant Business Room access to Printer Room, then all the devices in Business Room can get access to devices in Printer Room. But on the country, the devices in Printer Room can’t get access to the devices in Business Room. Model Number EAI2326...

  • Page 15: Technical Specification

    • Operating Temperature: 0°C to 40°C Conditions • Operating Humidity: 10% to 95% non- condensing • Storage Temperature: -40°C to 80°C • Storage Humidity: 5% to 95% non-condensing Antenna type • 4 x internal dual-band Wi-Fi antenna Mounting • Desktop Model Number EAI2326...
  • Page 16 • 2.4GHz HT40/VHT40/HE40: -94dBm @MCS0 • 5GHz VHT20/HE20: -95dBm @ MCS0 • 5GHz VHT40/HE40: -93dBm @ MCS0 • 5GHz VHT80/HE80 : -89dBm @ MCS0 Max Number of • Up to 128 per radio Clients SSIDs • Up to 4 per radio Model Number EAI2326...
  • Page 17 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 21 cm between the radiator & your body. ASKEY INTERNATIONAL CORPORATION (AIC) 4017 Clipper Court, Fremont CA 94538, USA TEL:+1-510-415-2767 Model Number EAI2326...
