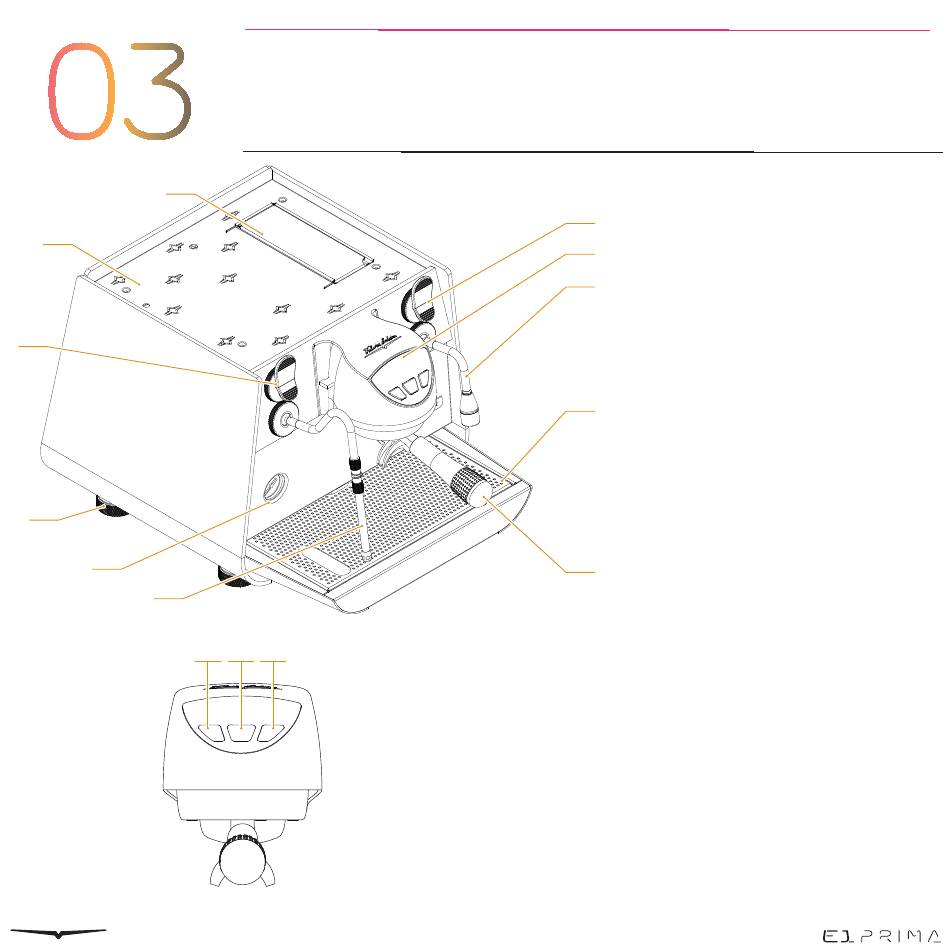

MACHINE DESCRIPTION

1B 1C
E AG L E O N E P R I M A | L I B R E T TO I ST R UZ I O N I - U S E R H A N D B O O K - M A N U E L D 'I N ST R U CTI O N S | 47
Hot water knob
1
2 Infusion group
1
Hot water wand
3
Water collection pan
4
2
Filter-holder
5
6 Steam wand
3
Pressure gauge
7
Machine foot
8
9 Steam knob
10 Cup warmer
Tank
11
4
5
Coffee delivery button
1A
dose 1
Coffee delivery button
1B
dose 2
Coffee delivery button
1C
dose 3
