Datamax H-Class Manual page 9
Cutter option
Hide thumbs
Also See for H-Class:
- Manual (26 pages) ,
- Quick start manual (12 pages) ,
- Programmer's manual (330 pages)
Table of Contents
Advertisement

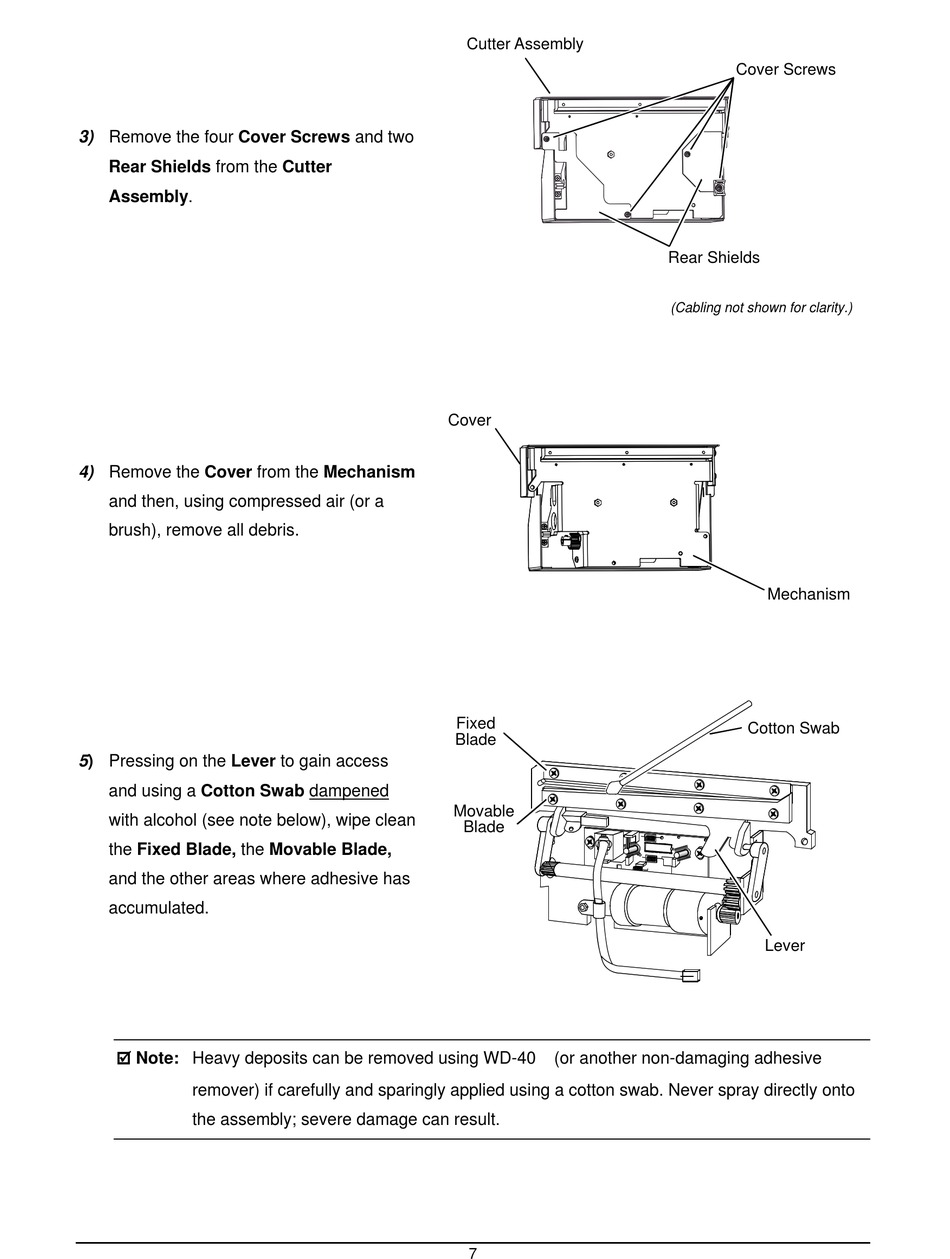

3) Remove the four Cover Screws and two
Rear Shields from the Cutter
Assembly.
4) Remove the Cover from the Mechanism
and then, using compressed air (or a
brush), remove all debris.
5) Pressing on the Lever to gain access
and using a Cotton Swab dampened
with alcohol (see note below), wipe clean
the Fixed Blade, the Movable Blade,
and the other areas where adhesive has
accumulated.
Note: Heavy deposits can be removed using WD-40
remover) if carefully and sparingly applied using a cotton swab. Never spray directly onto
the assembly; severe damage can result.
Cutter Assembly
Cover
Fixed
Blade
Movable
Blade
(or another non-damaging adhesive
7
Cover Screws
Rear Shields
(Cabling not shown for clarity.)
Mechanism
Cotton Swab
Lever
