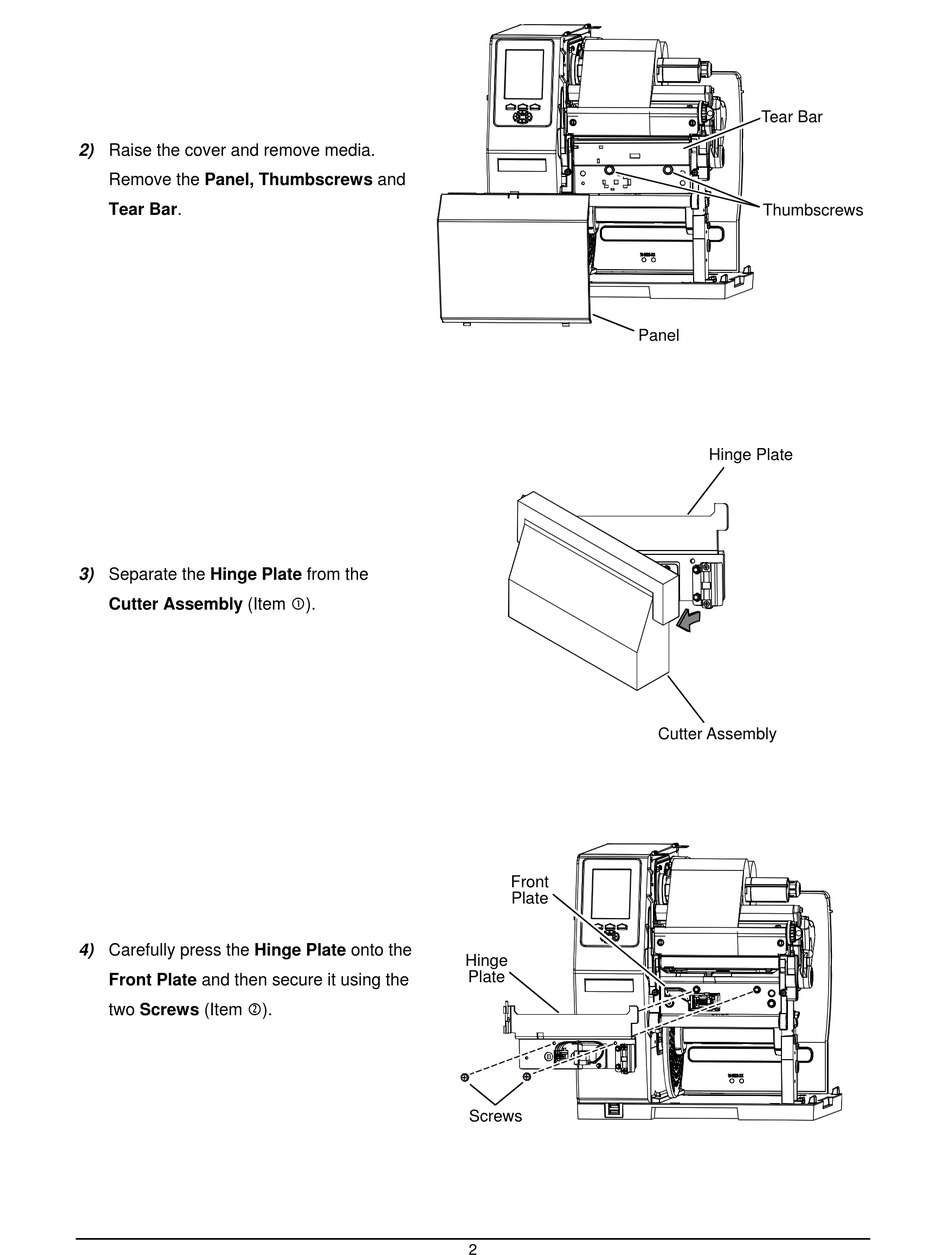

2) Raise the cover and remove media.
Remove the Panel, Thumbscrews and
Tear Bar.
3) Separate the Hinge Plate from the
Cutter Assembly (Item ).
4) Carefully press the Hinge Plate onto the
Front Plate and then secure it using the
two Screws (Item ).
Panel
Front
Plate
Hinge
Plate
Screws
2
Tear Bar
Thumbscrews
Hinge Plate
Cutter Assembly
