DS-1300 Series
User Manual
Rugged Embedded Computer
10th Generation Intel® Xeon/Core™ Series Processors, High
Performance, Expandable and Modular Rugged Embedded
Computer
Version: V1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-1300 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Cincoze DS-1300 Series

Summary of Contents for Cincoze DS-1300 Series

  • Page 1 DS-1300 Series User Manual Rugged Embedded Computer 10th Generation Intel® Xeon/Core™ Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer Version: V1.00...

  • Page 2: Table Of Contents

    3.8 Installing PCI/PCIe Add-on Card ..................54 3.9 Assembling Top Cover ..................... 55 3.10 Installing SATA Hard Drives at Front Panel ..............61 3.11 Installing SIM Card ......................63 3.12 Replacing CMOS Battery ....................64 DS-1300 Series | User Manual...
  • Page 3 4.7.2 Discard Changes and Exit ..................91 4.7.3 Save Changes and Reset ..................91 4.7.4 Discard Changes and Reset ................... 91 4.7.5 Save Changes ......................91 4.7.6 Discard Changes ....................91 4.7.7 Restore Defaults ..................... 91 DS-1300 Series | User Manual...
  • Page 4 6.5 Installing MEC Module ....................139 6.5.1 MEC-COM-M212-DB9/UB0303 Module .............. 139 6.5.2 MEC-USB-M102-15/UB0314 Module ..............142 6.5.3 MEC-LAN-M002-15/UB0311 Module ..............145 6.6 Installing External FAN ....................148 6.7 Installing Internal FAN (For DS-1302 only) ..............150 DS-1300 Series | User Manual...

  • Page 5: Preface

    2021/06/01 Copyright Notice © 2021 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd.

  • Page 6: Product Warranty Statement

    Product Warranty Statement Warranty Cincoze products are warranted by Cincoze Co., Ltd. to be free from defect in materials and workmanship for 2 years from the date of purchase by the original purchaser. During the warranty period, we shall, at our option, either repair or replace any product that proves to be defective under normal operation.
  • Page 7 Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain an RMA number from us. Our staff is available at any time to provide you with the most friendly and immediate service. ◼...

  • Page 8: Technical Support And Assistance

    Technical Support and Assistance 1. Visit the Cincoze website at www.cincoze.com where you can find the latest information about the product. 2. Contact your distributor or our technical support team or sales representative for technical support if you need additional assistance. Please have following information ready before you call: ⚫...

  • Page 9: Safety Precautions

    The equipment has obvious signs of breakage. 14. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. 15. Equipment intended only for use in a RESTRICTED ACCESS AREA. DS-1300 Series | User Manual...

  • Page 10: Ordering Information

    Expandable and Modular Rugged Embedded Computer with 2 PCI/PCIe Expansion Slot Package Checklist Q’ty Item Description Heatsink Pack Utility DVD Driver Screw Pack Wall Mount Kit Power Terminal Block Connector Remote Function Terminal Block Connector Fan Terminal Block Connector DS-1300 Series | User Manual...

  • Page 11: Chapter 1 Product Introductions

    Chapter 1 Product Introductions DS-1300 Series | User Manual...

  • Page 12: Overview

    1.1 Overview The DS-1300 series is a powerful embedded computer and brings unrivalled performance. It has versatile functionalities and rich industrial I/O. And most importantly, it has one PCI/PCIe expansion capability (DS-1301 and DS-1302). Equipped with Cincoze’s CMI, CFM, MEC modular expansion, customization for additional I/O or other functionality to fulfill different applications couldn’t be easier.
  • Page 13 DS-1300 Series | User Manual...

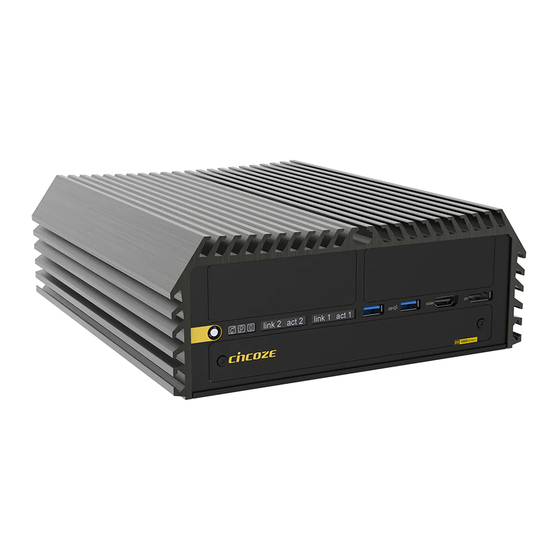

  • Page 14: Product Pictures

    1.3 Product Pictures DS-1300 Front Rear DS-1300 Series | User Manual...
  • Page 15 DS-1301 Front Rear DS-1300 Series | User Manual...
  • Page 16 DS-1302 Front Rear DS-1300 Series | User Manual...

  • Page 17: Key Features

    3x full-size Mini PCIe sockets, 2x SIM card slots ⚫ Optional CMI modules for I/O expansion ⚫ Optional CFM modules for ignition sensing & PoE ⚫ Wide operating temperature -40°C to 70°C ⚫ MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only) DS-1300 Series | User Manual...

  • Page 18: Hardware Specification

    2x DisplayPort Connector (4096 x 2340@60Hz) • 1x VGA Connector (1920 x 1200 @60Hz) Audio • Audio Codec Realtek® ALC888, High Definition Audio • Line-out 1x Line-out, Phone Jack 3.5mm • Mic-in 1x Mic-in, Phone Jack 3.5mm DS-1300 Series | User Manual...
  • Page 19 External FAN Connector (Support Smart Fan by BIOS) • Support Power Ignition Sensing Function with Delay Time Management and Power Ignition Sensing Selectable 12V/24V (With Optional CFM Module) • Clear CMOS Switch 1x Clear CMOS Switch DS-1300 Series | User Manual...
  • Page 20 Protection Range: 51~58V • Over Voltage Protection Protection Type: shut down operating voltage, re-power on at the present level to recover • Over Current Protection • Surge Protection 3.84 kV (impedance 12 ohm 1.2/50us waveform) DS-1300 Series | User Manual...
  • Page 21 • Linux Supports by project * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. DS-1300 Series | User Manual...

  • Page 22: System I/O

    IGN Setting Switch USB 3.2 Gen2 Used to set up IGN function Used to connect USB 3.2 Gen2/3.2 Reset Button Gen1/3.0/2.0/1.1 device Used to reset the system HDMI Used to connect the system with HDMI monitor DS-1300 DS-1300 Series | User Manual...
  • Page 23 DS-1301 DS-1302 DS-1300 Series | User Manual...
  • Page 24 A terminal block used to connect to remote USB 2.0 power on/off switch Universal I/O Bracket Used to connect USB 2.0/1.1 device LAN1, LAN2 Used to customized I/O output Used to connect to local area network DS-1300 DS-1300 Series | User Manual...
  • Page 25 DS-1301 DS-1302 DS-1300 Series | User Manual...

  • Page 26: Mechanical Dimension

    1.7 Mechanical Dimension DS-1300 Unit: mm DS-1301 Unit: mm DS-1300 Series | User Manual...
  • Page 27 DS-1302 Unit: mm DS-1300 Series | User Manual...

  • Page 28: Chapter 2 Switches & Connectors

    Chapter 2 Switches & Connectors DS-1300 Series | User Manual...

  • Page 29: Location Of Switches And Connectors

    2.1 Location of Switches and Connectors 2.1.1 Top View DS-1300 Series | User Manual...

  • Page 30: Bottom View

    2.1.2 Bottom View DS-1300 Series | User Manual...

  • Page 31: Switches And Connectors Definition

    Dual USB3.2 Gen1 + GLAN RJ45 Connector Ⓠ Dual USB2.0 + PS2 Connector Ⓛ VGA1 VGA Connector (DB15) Ⓗ FAN1 CPU Smart FAN Connector Ⓐ 3 PINs DC 9‐48V power input with power ignition connector DC_IN2 DS-1300 Series | User Manual...
  • Page 32 SATA2 22 PINs SATA Connector ⓛ PCIE2 PEG/PCIE x16 Slot ⓡⓠ CN3, CN4 Mini PCI-Express Socket (Support mPCIE/ mSATA / USB3 module) ⓢ M.2 Key M Socket (Support AHCI or NVMe PCIe / SATA Storage) DS-1300 Series | User Manual...

  • Page 33: Definition Of Switches

    Location Function DIP3 DIP4 0V(RI) ON (Default) ON (Default) COM1 Location Function DIP5 DIP6 0V(RI) ON (Default) ON (Default) COM2 SW2: Super CAP Switch Location Function DIP1 DIP2 Enabled ON (Default) Super ON (Default) Disabled DS-1300 Series | User Manual...
  • Page 34 Push Reset System AT_ATX: AT / ATX Power Mode Switch Switch Definition Left AT Power Mode Right ATX Power Mode (Default) CLR_CMOS1: Clear BIOS Switch Definition 1-2 (Left) Normal Status (Default) 2-3 (Right) Clear BIOS DS-1300 Series | User Manual...

  • Page 35: Definition Of Connectors

    PETp0 / SATA_TXP UIM_PWR_A UIM_DATA_A USB_D- REFCLK- UIM_CLK_A USB_D+ REFCLK+ / UIM_PWR_B +3.3Vaux UIM_RESET_A +3.3Vaux UIM_VPP_A UIM_IC_DM / (UIM_CLK_B) UIM_IC_DP / (UIM_DATA_B) CL_CLK W_DISABLE1# CL_DATA PERST# +1.5V PERn0 / SATA_RXP CL_RST +3.3Vaux PERp0 / SATA_RXN +3.3Vaux DS-1300 Series | User Manual...
  • Page 36 CN3/CN4：Mini PCI-Express Socket (Support mPCIE/ mSATA / USB3) Definition Definition WAKE# 3.3Vaux +1.5V SMB_CLK PETn0 / SATA_TXN 1.5V SMB_DATA PETp0 / SATA_TXP USB_D- REFCLK- USB_D+ REFCLK+ +3.3Vaux +3.3Vaux W_DISABLE1# PERST# +1.5V PERn0 / SATA_RXP +3.3Vaux PERp0 / SATA_RXN +3.3Vaux DS-1300 Series | User Manual...
  • Page 37 REFCLKP 3.3V PERN3- PERP1 PERP3 SUSCLK PETN1 PEDET/CFG1 DAS/DSS* 3.3V PETN3 PETP1 3.3V DEVSLP 3.3V PETP3 3.3V SMB_CLK 3.3V PERN0/SATA_B+ CFG2 3.3V SMB_DATA PERN2 PERP0/SATA_B- 3.3V ALERT# PERP2 CFG0 PETN0/SATA_A- PETN2 PETP0/SATA_A+ PERST*/NC PETP2 CLKREQ*/NC DS-1300 Series | User Manual...
  • Page 38 Definition RMT_PWR_BTN_N RMT_PWR_LED_A Do not apply power to this connector! This port is used to connect a SWITCH! FAN1: CPU Smart Fan Connector Connector Type: Terminal Block 1X4 4-pin, 3.5mm pitch Definition +12V FAN_IN FAN_PWR DS-1300 Series | User Manual...
  • Page 39 DC_IN2: 3 PINs DC 9‐48V power input with power ignition connector Connector Type: Terminal Block 1x3 3-pin, 5.0mm pitch Definition +9~48VIN Ignition (IGN) 1 2 3 Please disconnect the power source before mounting the DC power cables or connecting the DC power connector to system. DS-1300 Series | User Manual...
  • Page 40 LAN LED Status Definition Link LED Status Definition Steady Green 1 Gbps Network Link Steady Orange 100 Mbps Network Link 10 Mbps Network Link Act LED Status Definition Blinking Yellow Data Activity Steady Yellow No Activity DS-1300 Series | User Manual...

  • Page 41: Chapter 3 System Setup

    Chapter 3 System Setup DS-1300 Series | User Manual...

  • Page 42: Removing Top Cover

    1. Turn over the unit to have the bottom side face up, loosen the 6 screws on the bottom cover and place them aside for later use. 2. Remove the bottom cover from the chassis. DS-1300 Series | User Manual...
  • Page 43 3. Unscrew the 2 screws at the rear bezel as indicated and place them aside for later use. 4. Loosen the 4 screws. Pull out the 4 latches as marked. 5. Lift up the unit vertically by holding the front and rear panel. DS-1300 Series | User Manual...

  • Page 44: Installing Cpu

    6. Turn over the body of the unit and place it gently. 3.2 Installing CPU Locate the CPU socket. DS-1300 Series | User Manual...
  • Page 45 Press down the socket lever to lock the CPU. Place the thermal pad on the CPU heat spreader. Thermal pad Before putting on the heatsink (in the next step), please make sure the protective film on the Thermal Pad has been removed! DS-1300 Series | User Manual...
  • Page 46 Align the four mounting holes of the heatsink with the nut studs and fasten the heatsink with the provided 4 screws. Place the thermal pad on the CPU heatsink. Before assembling the system’s chassis cover, please make sure the protective film on the Thermal Pad has been removed! DS-1300 Series | User Manual...

  • Page 47: Installing So-Dimm

    3. Insert the SO-DIMM at a 45-degree angle until its edge connector is connected to the SO-DIMM socket firmly. 45° 45° Upper socket Lower socket 4. Press down the module until the retaining clips snap back in place. DS-1300 Series | User Manual...

  • Page 48: Installing Mini-Pcie Card

    Locate the Mini PCIe socket CN5 on the top side and CN3/CN4 on the bottom side of the system. Use provided two screws fasten the half size module and adapter bracket together as shown in Fig (a) below. DS-1300 Series | User Manual...
  • Page 49 Tilt a Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° Press the card down and secure it with 2 screws. DS-1300 Series | User Manual...

  • Page 50: Installing M.2 M Key Card

    2. Tilt the M.2 M Key card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° 3. Press the card down and secure it with the screw. DS-1300 Series | User Manual...

  • Page 51: Installing Antenna

    3.6 Installing Antenna 1. Remove the antenna rubber cover on the rear panel. 2. Penetrate the antenna jack through the hole. 3. Put on the washer and fasten the nut of antenna jack. DS-1300 Series | User Manual...
  • Page 52 4. Assemble the antenna and antenna jack together. 5. Attach the RF connector of the cable’s another end onto the card. DS-1300 Series | User Manual...

  • Page 53: Installing Sata Hard Drive On Top Side

    4 screws to assemble HDD and HDD bracket together. 3. Turn over the HDD bracket. Connect the HDD bracket to the SATA connector and fasten the 3 screws. DS-1300 Series | User Manual...

  • Page 54: Installing Pci/Pcie Add-On Card

    3.8 Installing PCI/PCIe Add-on Card (For DS-1301 and DS-1302 only) The applicable riser cards for DS-1300 series are listed in the following table. Model No. Description Compatible Model RC-E16-01 Riser Card with 1 x PCIex16 Slot DS-1301 RC-PI-01 Riser Card with 1 x PCI Slot...
  • Page 55 3. Assemble the riser card with extension bracket together and fasten with the 4 screws. 4. (1) Loosen the screw(s) to remove I/O bracket(s). (2) Loosen the screws halfway to allow the card retainer to be adjustable. DS-1300 Series | User Manual...
  • Page 56 5. (1) Insert PCI(e) add-on card to the slot. (2) Fasten the screw to secure it 6. (1) Push the card retainer forward to against the edge of the add-on card. (2) Fasten the screws to fix the card retainer. DS-1300 Series | User Manual...
  • Page 57 7. Locate the riser card slot on bottom side of system. 8. Install the module assembled in step 6 into the riser card slot, and fasten the 4 screws to secure DS-1300 Series | User Manual...

  • Page 58: Assembling Top Cover

    3.9 Assembling Top Cover 1. Make sure the notch on the chassis and the front bezel of the unit body are on the same side. DS-1300 Series | User Manual...
  • Page 59 2. Lift the body of the unit, make sure that the front and rear panels are in the chassis groves, and then assemble the body into the chassis. 3. Push into the 4 latches as indicated and fasten the 4 screws. DS-1300 Series | User Manual...
  • Page 60 4. Fasten the 2 screws at rear panel. 5. Be sure to align the grooves with front and rear panels. Put the bottom cover back on and fasten the 6 screws to fix the cover. DS-1300 Series | User Manual...

  • Page 61: Installing Sata Hard Drives At Front Panel

    1. Loosen the two screws to remove the cover plate of maintenance zone. 2. Loosen the screw to remove the HDD bay cover bracket. 3. Pull the rotating arm and pull the HDD bracket out of system. DS-1300 Series | User Manual...
  • Page 62 5. Align the HDD bracket with the entrance of HDD bay. Insert the HDD bracket and push it until the HDD connector is fully inserted into the SATA slot. 6. Place the rotating arm back and fasten the screw(s). DS-1300 Series | User Manual...

  • Page 63: Installing Sim Card

    2. Locate the SIM card slot at front side and insert a SIM card into a SIM slot with the gold contacts facing up. Please pay attention to the insert orientation as illustrated. 3. Fix the cover plate of maintenance zone by fastening the two screws. DS-1300 Series | User Manual...

  • Page 64: Replacing Cmos Battery

    2. Locate the removable CMOS Battery and loosen the screw. 3. Pull out the CMOS battery bracket with assistance of a tweezer. 4. Remove the battery by pressing the metal tab backwards slightly as indicated. DS-1300 Series | User Manual...
  • Page 65 "-" side and pull the metal tab backwards to make the battery fully installed in the slot. 6. Insert the battery bracket firmly. 7. Fasten the screw. 8. Fix the cover plate of maintenance zone by fastening the two screws. DS-1300 Series | User Manual...

  • Page 66: Installing Wall Mount

    3.13 Installing Wall Mount DS-1300 series offers wall mount kit that customers can install the system on the wall in a convenient and economical way. 1. The mounting holes are at the bottom side of the system. Use the provided 8 screws to fasten the bracket and the system together.
  • Page 67 2. Fasten the screws through the bracket mounting holes to mount the system onto the wall. DS-1300 Series | User Manual...

  • Page 68: Connecting To Power Supply

    3. Fasten the two screws to fix the phoenix contacts. After the testing phase, please use the new phoenix contacts for official use. Repeated plugging and unplugging the phoenix contacts may cause electrical arcing and damage the phoenix contacts. DS-1300 Series | User Manual...

  • Page 69: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup DS-1300 Series | User Manual...

  • Page 70: Bios Introduction

    You can use arrow keys ( ↑↓ ) to highlight the field and press <Enter> to call up the sub-menu. Then you can use the control keys to enter values and move from field to field within a sub-menu. If you want to return to the main menu, just press the <Esc >. DS-1300 Series | User Manual...

  • Page 71: Main Setup

    Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. 4.2.1 System Date Set the date. Please use <Tab> to switch between date elements. 4.2.2 System Time Set the time. Please use <Tab> to switch between time elements. DS-1300 Series | User Manual...

  • Page 72: Advanced Setup

    ■ Active Process Cores [All] Allows users to choose the number of active processor cores. Configuration options: [All] [1] [2] [3] [4] [5] ■ Hyper-threading Enables or disables for Hyper-Threading Technology. 4.3.2 Power & Performance DS-1300 Series | User Manual...

  • Page 73: Sata Configuration

    ■ SKU Power Config [Auto] Allows users to choose the upper limit of CPU power. Configuration options: [Auto] [35W] 4.3.3 SATA Configuration DS-1300 Series | User Manual...

  • Page 74: Pch-Fw Configuration

    Enables or disables SATA Port 3. ❑ Serial ATA Port 4 Port 4 [Enabled] Enables or disables SATA Port 4. ❑ Serial ATA Port 5 Port 5 [Enabled] Enables or disables SATA Port 5. 4.3.4 PCH-FW Configuration DS-1300 Series | User Manual...

  • Page 75: Trusted Computing

    4.3.5 Trusted Computing ■ Security Device Support [Enable] Allow users to enable or disable Security Device Support function. ■ SHA-1 PCR Bank [Disabled] Enables or disables SHA-1 PCR Bank function. ■ SHA256 PCR Bank [Enabled] DS-1300 Series | User Manual...

  • Page 76: Acpi Settings

    [Suspend Disabled]: Disables entering suspend state. [S3 (suspend to RAM)]: Enables suspend to RAM state. 4.3.7 F81866 Super IO Configuration The screen allows users to select options for the Super IO configuration, and change the value of the selected option. DS-1300 Series | User Manual...
  • Page 77 This item allows users to select Serial Port Mode. Configuration options: [RS232] [RS422/RS485 Full Duplex] [RS485 Half Duplex] ■ Watch Dog [Disabled] Enables or disables watch dog function. ■ Watch Dog Mode [Sec] Changes the Watch dog mode. Select [Sec] or [Min] mode. DS-1300 Series | User Manual...

  • Page 78: Hardware Monitor

    ■ External Smart Fan Configuration Allows users to setting external smart fan parameters. ■ Internal Smart Fan Function [Enabled] Enables or disables internal smart fan function. ■ Internal Smart Fan Configuration Allows users to setting internal smart fan parameters. DS-1300 Series | User Manual...

  • Page 79: S5 Rtc Wake Settings

    This item allows users to change the way to wake system from S5 state. [Fixed Time]: Set the specified time (HH:MM:SS) to wake system. [Dynamic Time]: Set the increase time from current time to wake system. 4.3.10 Serial Port Console Redirection DS-1300 Series | User Manual...

  • Page 80: Ami Graphic Output Protocol Policy

    Allows users to select which Output Interface to display under BIOS mode. The options shown in this item depend on the displays connected to the system. [EDP1]: VGA [HDMI1]: HDMI [DP2]: DP (Front Panel) [DP3]: DP (Rear Panel) 4.3.12 USB Configuration DS-1300 Series | User Manual...

  • Page 81: Network Stack Configuration

    This item allows users to enable or disable XHCI (USB3.2) hand-off function. ■ USB Mass Storage Driver Support [Enabled] Enables or disables support for USB mass storage devices. 4.3.13 Network Stack Configuration ■ Network Stack [Disabled] Enables or disables UEFI Network Stack. DS-1300 Series | User Manual...

  • Page 82: Csm Configuration

    [UEFI]: Enables UEFI option ROM only. [Legacy]: Enables legacy option ROM only. ■ Other PCI devices [Do not launch] Allows users to determine option ROM execution policy for devise other than network, storage, or video. DS-1300 Series | User Manual...

  • Page 83: Nvme Configuration

    The screen allows users to select options for the NVMe configuration, and change the value of the selected option. If there is NVMe Device detected, the options will show as the NVMe Device is found. DS-1300 Series | User Manual...

  • Page 84: Chipset Setup

    4.4 Chipset Setup This section allows you to configure chipset related settings according to user’s preference. 4.4.1 System Agent (SA) Configuration DS-1300 Series | User Manual...
  • Page 85 This item allows users to enable or disable Internal Graphics. When set to [Auto], it will detect by BIOS. Configuration options: [Auto] [Disabled] [Enabled] ■ VT-d [Enabled] This item allows users to enable or disable Intel® Virtualization Technology for Directed I/O (VT-d) function. DS-1300 Series | User Manual...

  • Page 86: Pch-Io Configuration

    ❑ PCI Express Root Port (PCIe x1) ◼ PCI Express Root Port [Enabled] Allows you to enable or disable the PCI Express Port. ◼ PCIe Speed [Auto] Allows you to select PCI Express interface speed. Configuration options: [Auto] [Gen1] [Gen2] [Gen3]. DS-1300 Series | User Manual...
  • Page 87 Allows you to enable or disable the PCI Express Port. ◼ PCIe Speed [Auto] Allows you to select PCI Express interface speed. Configuration options: [Auto] [Gen1] [Gen2] [Gen3]. ■ HD Audio Configuration ❑ HD Audio [Enabled] Allows you to select HD Audio options. DS-1300 Series | User Manual...
  • Page 88 Allows you to specify which power state system will enter when power is resumed after a power failure (G3 state). [Always on]: Enters to power on state. [Always off]: Enters to power off state. [Keep last state]: Enters to the last power state before a power failure. DS-1300 Series | User Manual...

  • Page 89: Security Setup

    User Password controls access to the system at boot and to the BIOS Setup utility. 4.5.3 Security Boot ❑ Secure Boot [Disabled] Enable or disable Secure Boot function. ❑ Secure Boot Mode [Standard] Allows you to select Secure Boor Mode. Configuration options: [Standard] [Custom]. DS-1300 Series | User Manual...

  • Page 90: Boot Setup

    Allows users to select the power-on state for keyboard NumLock. 4.6.3 Quiet Boot [Disabled] Allows users to enable or disable Quiet Boot function. 4.6.4 Fast Boot [Disabled] Allows users to enable or disable Fast Boot function. DS-1300 Series | User Manual...

  • Page 91: Save & Exit

    4.7.8 Save as User Defaults This item allows users to save the changes done so far as user defaults. 4.7.9 Restore User Defaults This item allows users to restore the user defaults to all the options. DS-1300 Series | User Manual...

  • Page 92: Chapter 5 Product Application

    Chapter 5 Product Application DS-1300 Series | User Manual...

  • Page 93: Digital I/O (Dio) Application

    GPIO42 (PIN 46) GPIO33 (PIN 39) GPIO43 (PIN 47) GPIO34 (PIN 40) GPIO44 (PIN 48) GPIO35 (PIN 41) GPIO45 (PIN 49) GPIO36 (PIN 42) GPIO46 (PIN 50) GPIO37 (PIN 43) GPIO47 (PIN 51) 5.1.1.3 Programming Guide DS-1300 Series | User Manual...
  • Page 94 Following is an example to enable configuration and to disable configuration by using debug. -o 4e 87 -o 4e 87 (enable configuration) -o 4e aa (disable configuration) 5.1.1.4 Relative Registers To program the F81866A configuration registers, see the following configuration procedures. DS-1300 Series | User Manual...
  • Page 95 DS-1300 Series | User Manual...
  • Page 96 DS-1300 Series | User Manual...
  • Page 97 DS-1300 Series | User Manual...
  • Page 98 // Select configuration register 82h ReadByte(DataPort, Value) // Read bit 0~7 (0xFx)= GP70 ~77 as High. <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) 5.1.1.5.2 Control of GP80 to GP87 (DO1 ~ DO8) #define AddrPort 0x4E #define DataPort 0x4F DS-1300 Series | User Manual...
  • Page 99 #define AddrPort 0x4E #define DataPort 0x4F <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to entering Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(dataPort, 0x06) // Select logic device 06h DS-1300 Series | User Manual...
  • Page 100 // Select configuration register 82h ReadByte(DataPort, Value) // Read bit 0~7(0xFx)= GP70~77 as High <input Value> WriteByte(AddrPort, 0xC2) // Select configuration register C2h ReadByte(DataPort, Value) // Read bit 0~7(0xFx)= GP30~37 as High <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) DS-1300 Series | User Manual...
  • Page 101 // Set (bit 0~7) = 1 to select GP 40~47 as Output mode <Output Value> WriteByte(AddrPort, 0x89) // Select configuration register 89h WriteByte(DataPort, Value) // Set bit 0~7=(0/1) to output GP 80~87 as Low or High <Output Value> WriteByte(AddrPort, 0xB1) // Select configuration register B1h DS-1300 Series | User Manual...
  • Page 102 // Select configuration register 60h (High Byte address) WriteByte(DataPort, (0x0A)) WriteByte(AddrPort, 0x61) // Select configuration register 61h (Low Byte address) WriteByte(DataPort, (0x00)) <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) Cincoze default GPIO Port base address is 0xA00h DS-1300 Series | User Manual...
  • Page 103 = DI5 = DO5 (Base Base address address +3) +2) (0xA02) (0xA03) = DI6 = DO6 (Base Base address address +3) +2) (0xA02) (0xA03) = DI7 = DO7 (Base Base address address +3) +2) (0xA02) (0xA03) DS-1300 Series | User Manual...
  • Page 104 = DI12 = DO12 (Base Base address address +9) +10) (0xA10) (0xA09) = DI13 = DO13 (Base Base address address +9) +10) (0xA10) (0xA09) = DI14 = DO14 (Base Base address address +9) +10) (0xA10) (0xA09) DS-1300 Series | User Manual...
  • Page 105 5.1.1.8 DIO I/O Port Address (Default Address 0xA00) Pin Definition Data Bits Digital Input I/O Port Address 0xA03 Pin Definition Data Bits Digital Output I/O Port Address 0xA02 Pin Definition DI16 DI15 DI14 DI13 DI12 DI11 DI10 DS-1300 Series | User Manual...
  • Page 106 Data Bits Digital Input I/O Port Address 0xA09 Pin Definition DO16 DO15 DO14 DO13 DO12 DO11 DO10 Data Bits Digital Output I/O Port Address 0xA010 DS-1300 Series | User Manual...

  • Page 107: Dio Hardware Specification

    DO Signal have to pull up resistor to XCOM+ for external device, the resistance will affect the pull up current Signal High Level: Pull up resistor to XCOM+ Signal Low Level: = XCOM- Sink Current: 1A (Max) DS-1300 Series | User Manual...

  • Page 108: Dio Connector Definition

    5.2.1 DIO Connector Definition DIO1: Digital Input / Output Connector Connector Type: Terminal Block 2X5 10-pin, 3.5mm pitch Definition Definition XCOM+ XCOM- (DC INPUT) (GND) Definition Definition 2XCOM+ 2XCOM- (DC INPUT) (GND) DS-1300 Series | User Manual...
  • Page 109 Reference Input Circuit DIO2: Digital Input / Output Connector Connector Type: Terminal Block 2X5 10-pin, 3.5mm pitch Definition Definition (DI9) (DO9) (DI10) (DO10) (DI11) (DO11) (DI12) (DO12) XCOM+ XCOM- (DC INPUT) (GND) DS-1300 Series | User Manual...
  • Page 110 Definition Definition (DI13) (DO13) (DI14) (DO14) (DI15) (DO15) (DI16) (DO16) 2XCOM+ 2XCOM- (DC INPUT) (GND) Reference Output Circuit DS-1300 Series | User Manual...

  • Page 111: Gpio Led Application

    0xAA to the index port. Following is examples to enable configuration and to disable configuration by using debug. Example to enable configuration: -o 4e 87 -o 4e 87 Example to disable configuration: -o 4e aa 5.3.1.3 Relative Registers DS-1300 Series | User Manual...
  • Page 112 To program the F81866A configuration registers, see the following configuration procedures. Following is an example to Select GPIO device by LDN(index 07h) using debug. -o 4e 07 -o 4f 06 DS-1300 Series | User Manual...
  • Page 113 Because we need to set bit0 to 1 for GPIO10 output , thus made the new value to 01 . Second step,write the new value 01 to set bit0 with output mode -o 4e e0 -o 4f 01 DS-1300 Series | User Manual...
  • Page 114 01 . Second step: write the new value 01 to set bit0 for control output -o 4e e1 -o 4f 01 ( Note, the bit0 (GPIO10) can be set 0 or 1 ) DS-1300 Series | User Manual...
  • Page 115 // Set (bit 0) =0 to output GPIO10 as Low WriteByte(AddrPort, 0xE1) // Select configuration register E1h WriteByte(DataPort, Value | 0x01 ) // Set (bit 0) =1 to output GPIP10 as High <Leave the Extended Function Mode> WriteByte(AddrPort, 0xAA) DS-1300 Series | User Manual...
  • Page 116 5.3.1.5 Change base address Cincoze default GPIO Port base address is 0xA00 <Enter the Extended Function Mode> WriteByte(AddrPort, 0x87) WriteByte(AddrPort, 0x87) // Must write twice to enter Extended mode <Select Logic Device> WriteByte(AddrPort, 0x07) WriteByte(dataPort, 0x06) // Select logic device 06h...

  • Page 117: Gpio Led Status Definition

    I/O Port data register address = Base address + 7 = 0xA07 = LED (Base address +7) (0xA07) 5.4 GPIO LED Status Definition GPIO LED LED Type Status LED Color GPIO activity Green GPIO LED No activity DS-1300 Series | User Manual...

  • Page 118: Chapter 6 Optional Modules & Accessories

    Chapter 6 Optional Modules & Accessories DS-1300 Series | User Manual...

  • Page 119: Optional Module Pin Definition & Settings

    CMI-M12 LAN Module with CFM-PoE Module Pin Definitions Connector Type: M12 A coded 8pin connector POE type: Midspan (B-Type) Definition Definition 2_LAN1_0+ 2_LAN1_0- 2_LAN1_2+ 2_LAN1_1+ (Power PIN) 2_LAN1_2- 2_LAN1_1- (Power PIN) 2_LAN1_3+ 2_LAN1_3- (Power PIN) (Power PIN) DS-1300 Series | User Manual...

  • Page 120: Cmi-Com02/Ub1004 Module

    DATA - DATA + SW1 on CMI-COM02 Module：COM3~COM6 Power Select Function Definition 0V(RI) ON/ON (Default) COM3 ON/OFF OFF/OFF 0V(RI) ON/ON (Default) COM4 ON/OFF OFF/OFF 0V(RI) ON/ON (Default) COM5 ON/OFF OFF/OFF 0V(RI) ON/ON (Default) COM6 ON/OFF OFF/OFF DS-1300 Series | User Manual...

  • Page 121: Cmi-Icom01/Ub1004 Module

    6.1.3 CMI-ICOM01/UB1004 Module COM3~COM6：RS232 Connector Connector Type: 9-pin D-Sub RS232 Definition COM3/4/5/6 are isolated COM, each pin5 (GND) is independent. DS-1300 Series | User Manual...

  • Page 122: Cfm-Ign101 Module

    Default setting of Pin1 to Pin4 is OFF / OFF / OFF / OFF. 24V_12V_1：IGN Module Voltage Mode Setting Switch 12V / 24V Car Battery Switch Switch Definition Left 12V Car Battery Input Right 24V Car Battery Input (Default) DS-1300 Series | User Manual...

  • Page 123: Installing High Speed Cmi Module

    1. Loosen the 2 hex nuts from back side of front bezel. Remove the front bezel. 2. Attach the CMI-LAN bracket, and fasten the 2 hex nuts to fix it as indicated. 3. Locate the connector(s) of CMI-LAN module on top side of system. BTB_FH2 BTB_FH4 DS-1300 Series | User Manual...

  • Page 124: Cmi-M12Lan01-R12/Ub1010 Module

    4 screws to fix it. 6.2.2 CMI-M12LAN01-R12/UB1010 Module Loosen the 2 hex nuts from back side of front bezel. Remove the front bezel. Attach the CMI-M12LAN bracket, and fasten the 2 hex nuts to fix it as indicated. DS-1300 Series | User Manual...
  • Page 125 Remove the four hex rings from the CMI-M12LAN module. 5. Penetrate the CMI-M12LAN ports through the holes on the bracket. Insert the CMI module vertically into the female connector on system’s mainboard until it’s connected firmly and fasten 4 screws to fix it. DS-1300 Series | User Manual...
  • Page 126 Fasten the four hex rings to fix the cover plate. DS-1300 Series | User Manual...

  • Page 127: Cmi-10Glan03-R10/Ub1028 Module

    When entering BIOS, get to Chipset > PCH-IO Configuration page, and change the [BTB_FH2 Mode Selection] setting from default mode [4x1] to mode [1x4]. Loosen the 2 hex nuts from back side of front bezel. Remove the front bezel. DS-1300 Series | User Manual...
  • Page 128 Locate the chip place on the CMI-10GLAN module marked by red square. Paste the thermal pad on it carefully. Before putting on the heatsink (in the next step), please make sure the protective film on the Thermal Pad has been removed! DS-1300 Series | User Manual...
  • Page 129 4 screws to fix it. Paste the thermal pad onto the heatsink carefully. Before assembling the system’s chassis cover, please make sure the transparent protective films on the Thermal Pads have been removed! DS-1300 Series | User Manual...

  • Page 130: Installing Low Speed Cmi Module

    1. Loosen the 2 hex nuts from back side of front bezel. Remove the front bezel. 2. Attach the CMI-DIO bracket, and fasten the 2 hex nuts to fix it as indicated. 3. Locate the connector(s) of CMI-DIO module on top side of system. DS-1300 Series | User Manual...

  • Page 131: Cmi-Com02/Ub1004 Module

    1. Loosen the 2 hex nuts from back side of front bezel. Remove the front bezel. 2. Locate the connector(s) of the CMI-COM module on the top side of the system. Choose one connector to install the module. DS-1300 series supports one CMI-COM module installed on the system at most. DS-1300 Series | User Manual...
  • Page 132 CMI module vertically into the female connector on system’s mainboard until it’s connected firmly and fasten 2 screws to fix it. 4. Attach the CMI-COM bracket, and fasten the 2 hex nuts to fix it as indicated. 5. Fasten the 8 D-Sub jack screws to fix the module. DS-1300 Series | User Manual...

  • Page 133: Cmi-Icom01/Ub1004 Module

    2. Locate the connector(s) of the CMI-COM module on the top side of the system. Choose one connector to install the module. DS-1300 series supports one CMI-ICOM module installed on the system at most. 3. Penetrate the COM ports of the CMI-ICOM module through the holes on the bracket. Insert the CMI module vertically into the female connector on system’s mainboard until it’s connected firmly...
  • Page 134 4. Attach the CMI-ICOM bracket, and fasten the 2 hex nuts to fix it as indicated. 5. Fasten the 8 D-Sub jack screws to fix the module. DS-1300 Series | User Manual...

  • Page 135: Installing Cfm Module

    1. Penetrate the CMI-M12LAN ports through the holes on the bracket. Insert the CMI module vertically into the female connector on system’s mainboard until it’s connected firmly and fasten 4 copper pillars to fix CMI-M12LAN module. DS-1300 Series | User Manual...
  • Page 136 4. Turn over the heatsink and locate the two places which were marked by red circles, and then paste the 2 thermal pads onto the heatsink carefully. Before putting on the heatsink (in the next step), please make sure the protective films on the Thermal Pads have been removed! DS-1300 Series | User Manual...
  • Page 137 Before assembling the system’s chassis cover, please make sure the protective film on the Thermal Pad has been removed! Once the steps are finished, after system power on, PoE LED (on CMI-LAN or CMI-M12 LAN module) will light blue as shown below. DS-1300 Series | User Manual...

  • Page 138: Cfm-Ign101 Module

    Insert the connector of IGN module to the female connector on system motherboard. (Make sure all the pins of IGN module’s connector are firmly connected.) Fasten the two screws to secure the power ignition board. DS-1300 Series | User Manual...

  • Page 139: Installing Mec Module

    1. Loosen the 2 screws on the cover plate and then remove it. 2. Attach the MEC-COM brackets, and fasten the 4 screws to fix it as indicated. 3. Locate the Mini PCIe socket(s) on the bottom side of the system. DS-1300 Series | User Manual...
  • Page 140 4. Tilt the Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° 5. Press the card down and secure it with 2 screws. 6. Remove the 4 D-Sub jack screws from the COM ports. DS-1300 Series | User Manual...
  • Page 141 7. Connect the other end of the wire to the Mini PCIe card as indicated. 8. Attach the COM ports onto the back side of the cover plates, and then fasten the 4 D-Sub jack screws to secure the COM ports. DS-1300 Series | User Manual...

  • Page 142: Mec-Usb-M102-15/Ub0314 Module

    1. Loosen the 2 screws on the cover plate and then remove it. 2. Attach the MEC-USB bracket, and fasten the 2 screws to fix it as indicated. 3. Locate the Mini PCIe socket(s) on the bottom side of the system. DS-1300 Series | User Manual...
  • Page 143 4. Tilt the Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° 5. Press the card down and secure it with 2 screws. 6. Connect the attached wire to the USB board. DS-1300 Series | User Manual...
  • Page 144 7. Connect the other end of the wire to the Mini PCIe card as indicated. 8. Attach the USB board onto the back side of the cover plate, and then fasten the two screws to secure the module. DS-1300 Series | User Manual...

  • Page 145: Mec-Lan-M002-15/Ub0311 Module

    1. Loosen the 2 screws on the cover plate and then remove it. 2. Attach the MEC-LAN bracket, and fasten the 2 screws to fix it as indicated. 3. Locate the Mini PCIe socket(s) on the bottom side of the system. DS-1300 Series | User Manual...
  • Page 146 4. Tilt the Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° 5. Press the card down and secure it with 2 screws. 6. Connect the attached wires to the LAN board. DS-1300 Series | User Manual...
  • Page 147 7. Connect the wires to the Mini PCIe card as indicated. 8. Attach the LAN board onto the back side of the cover plate, and then fasten the two screws to secure the module. DS-1300 Series | User Manual...

  • Page 148: Installing External Fan

    1. Prepare an external fan. Loosen the 2 screws halfway on mounting frame before attempting to install it. 2. Slide the FAN into the middle groove of chassis as illustrated. Tighten the 2 screws to fix it onto chassis. DS-1300 Series | User Manual...
  • Page 149 3. Move the fan to the center of chassis. Tighten the 2 screws marked on photo to secure it. 4. Connect the FAN cable to external fan power connector at rear panel. DS-1300 Series | User Manual...

  • Page 150: Installing Internal Fan (For Ds-1302 Only)

    Unscrew 6 screws to remove 3 I/O brackets from rear panel. Insert the fan connector to the power connector (power4). Attach the FAN from back side of rear panel, and then fasten the 4 screws to fix it. DS-1300 Series | User Manual...
  • Page 151 User can use cable ties to tie the wire from the cut holes as indicated. DS-1300 Series | User Manual...
