Configuration Using the RSLogix 5000 Generic Profile for CompactLogix Controllers

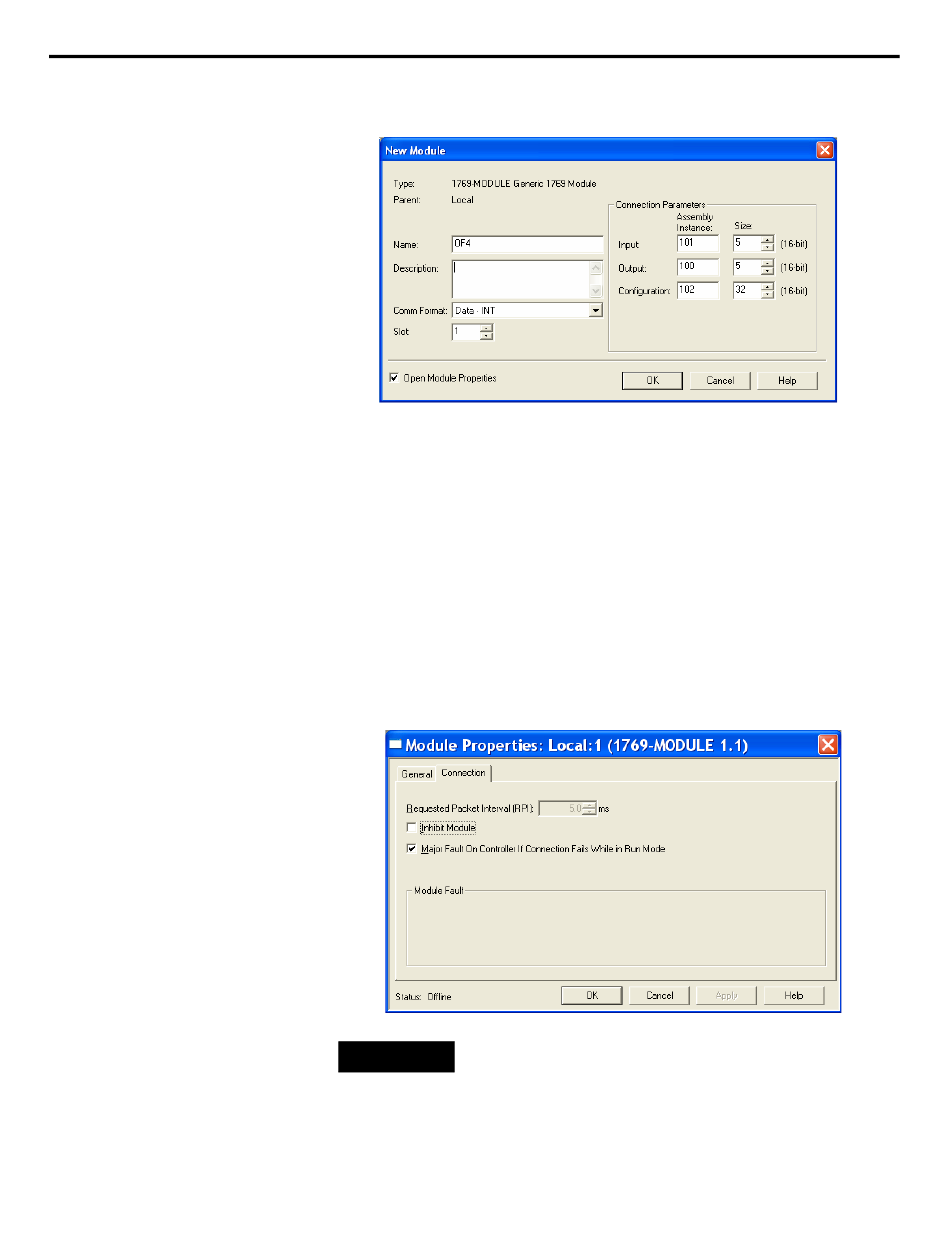

7. Type a Name for the module and an optional Description.
8. Select the slot number.
The slot number begins with the first available slot number, 1,
and increments automatically for each subsequent Generic
Profile you configure.
9. Enter the Comm Format, Assembly Instance numbers and their
associated sizes, as shown above.
10. Click OK.
11. On the Connection tab, you can choose to inhibit the module or
configure the module to fault if the connection fails.
Refer to the Help screens in RSLogix 5000 software, under
TIP
Connection Tab Overview for a complete explanation of these
features.
12. Click OK.
