3.3 57 x 51 mm head rail, open above

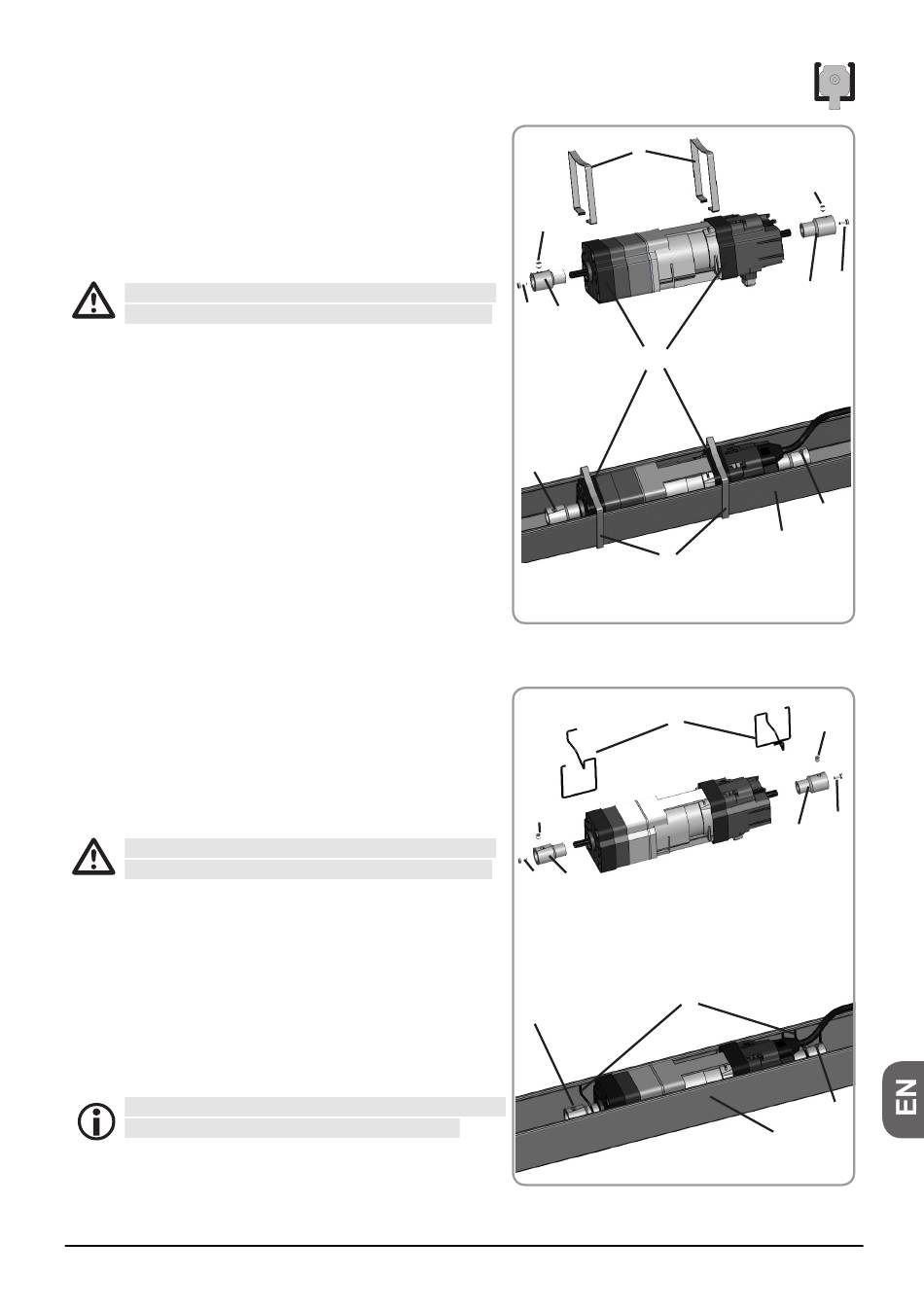

Installation with external clips
• Screw the 2 adaptors (1) using 2 M3x8 bolts (2) on
the motor shaft.
Tightening torque = 1.1 Nm
Ensure that the J4 io plate cable does not pass
over a rotating part of the motor or mechanism.
• Insert the motor into the head rail (4).
• Using the clips (5), attach the motor in the head rail
(4) above the acoustic tapes (6a).
• The shaft can be fitted into the adapter using a head-
less screw (7)
Installation with internal clips
• Screw the 2 adaptors (1) using 2 M3x8 bolts (2) on
the motor shaft.
Tightening torque = 1.1 Nm
Ensure that the J4 io plate cable does not pass
over a rotating part of the motor or mechanism.
• Insert the motor into the head rail (4).
• Using the clips (5), attach the motor in the head rail (4).
• The shaft can be fitted into the adapter using a head-
less screw (7).
The internal clips cannot be used with J418
motors (J4 motors with a torque of 18 Nm).
© 2011 Somfy SAS. All rights reserved. 112011
5
7
2
1
6a
7
5
5
7
2
1
5
7
7
2
1
7
4
7
2
1
7
4
59
