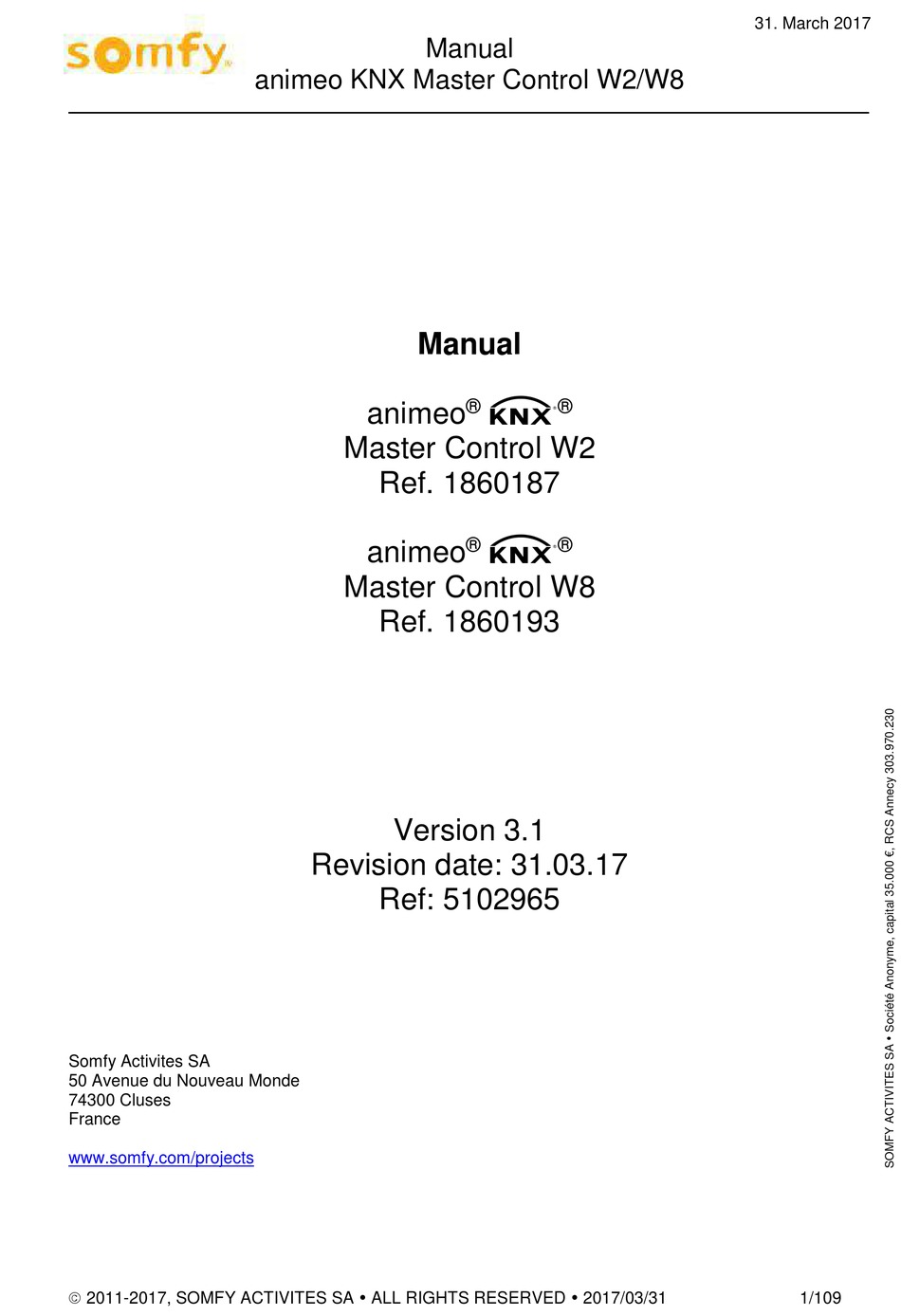

Somfy Activites SA
50 Avenue du Nouveau Monde
74300 Cluses
France
www.somfy.com/projects
 2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31
animeo KNX Master Control W2/W8
Manual
animeo
Master Control W2
Ref. 1860187
animeo
Master Control W8
Ref. 1860193
Version 3.1
Revision date: 31.03.17
Ref: 5102965
Manual
D
®
®
D
®
®
31. March 2017
1/109

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the animeo KNX Master Control W2 and is the answer not in the manual?

Questions and answers

Related Manuals for SOMFY animeo KNX Master Control W2

Summary of Contents for SOMFY animeo KNX Master Control W2

  • Page 1 Master Control W2 Ref. 1860187 ® ® animeo Master Control W8 Ref. 1860193 Version 3.1 Revision date: 31.03.17 Ref: 5102965 Somfy Activites SA 50 Avenue du Nouveau Monde 74300 Cluses France www.somfy.com/projects  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 1/109...

  • Page 2: Table Of Contents

    1.2. Product contents ..........................5 1.3. Connection diagrams .......................... 6 1.3.1. Connection diagram animeo KNX Master Control W2 version with Outside Sensor Box, optional with Compact Sensor ....................6 1.3.2. Connection diagram animeo KNX Master Control W8 version with Outside Sensor Box ..7 1.3.3.
  • Page 3 7.2. Assigning IP Address via Address Selection Switch ..............105 7.3. Resulting IP address saved in the fieldbus controller: 192.168.7.50 ..........105 7.4. New start ............................107 Operating Switch .......................... 108 Technical data ..........................109  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 3/109...
  • Page 4 Before starting up it is necessary to follow the safety instructions in these instructions. SOMFY cannot be held liable for defects and damages when these have been caused as a result of not following instructions (wrong installation, incorrect service etc.). Establishing, testing and starting up of the equipment is permitted only by a qualified person (in accordance with VDE 0100).

  • Page 5: Description Of Functions

    • The controller module animeo KNX Master Control W8 (ref.1860193) • A CD “animeo KNX Master Control W2/W8” with the following files and programs: animeo KNX Operating software for setting parameters operating and setting instructions (PDF format) connection diagrams (PDF format) KNX product data base and symbols file •...

  • Page 6: Connection Diagrams

    W2 version with Outside Sensor Box, optional with Compact Sensor 1. Connection of Outside Sensor Box to KNX Master Control 2. Optional connection of Compact Sensor to KNX Master Control  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 6/109...

  • Page 7: Connection Diagram Animeo Knx Master Control W8 Version With Outside Sensor Box

    4 x 1.5 mm²/16 AWG 500 m/1650 ft Max.: 4 x 2.5 mm²/13 AWG Wind Sensor un- Min.: 2 x 0.6 mm/22 AWG 500 m/1650 ft heated Max.: 2 x 2.5 mm²/13 AWG  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 7/109...

  • Page 8: Checking The Connections

    LED state in the table. If they do not match, the connection must be checked. 1.4.1. Checking the KNX Master Control connections Modul 1 Modul 2* Modul 3 Modul 4 *Module 2 only available with animeo KNX Master Control W8, ref. 1860193.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 8/109...
  • Page 9 D: OFF; blinks green, when connected, windmill turns** (** to check if necessary, the sensor wheel of the correspond- ing wind sensor) *Only with animeo KNX Master Control W8, ref. 1860193  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 9/109...
  • Page 10 No signal transmission TxD D green Signal transmission RxD running No signal transmission RxD The pulses are so short that the off status cannot or only hardly be recognized with the eyes.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 10/109...
  • Page 11 Buffer overflow No buffer overflow Buffer overflow Internal fault No fault Check sum error / device not configured KNX bus volt- KNX bus voltage not available green KNX bus voltage available  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 11/109...

  • Page 12: Checking The Outside Sensor Box Connection

    IP address in the same subnet as with the animeo KNX Master Control. The IP address/subnet mask of the animeo KNX Master Control is in the delivery state 192.168.0.2/255,255.0.0.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 12/109...
  • Page 13 In the computer you select under “System Control\Network connections” the option “LAN connections”. With the right mouse button you select “properties”. Now select “Internet protocol version 4 (TCP/IPv4)” and click on “properties”.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 13/109...
  • Page 14 31. March 2017 Manual animeo KNX Master Control W2/W8 Enter an IP address (e.g. 192.168.0.11) and the subnet mask 255,255.0.0. Confirm your entry with “OK” and close the remaining windows.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 14/109...

  • Page 15: Animeo Knx Operating Software

    Click on “connect” to start the communication with animeo KNX Master Control and to carry out the parameter settings online. Click on “close” to carry out the parameter settings off-line. 4.2. Input serial number in the Operating software  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 15/109...
  • Page 16 Should the animeo KNX Operating Software not be connected with the animeo KNX Master Control, the serial number can be also entered by hand in the software and saved.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 16/109...

  • Page 17: Software Overview

    The menu contains the following menu and cascading menu points: • File Project open Project save Project print Exit • Setting TCP/IP setting Languages Time format Units Set time Set password Set position Zones Sensors Shadow management  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 17/109...

  • Page 18: Sensor Bar

    Energy mode: Setting of the energy savings function in every zone (chapter 4.7.3) g. System: Display of the sensor data, function data and user data (chapter 4.8.1 ff) h. Error mode: Error message in the system (chapter 4.8.2 ff)  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 18/109...

  • Page 19: Data Transfer

    This command prints out all configuration and setting data of your project. Here, the project can be doc- umented. 4.4.1.4. Exit Here, the application is closed. When exiting the program asks, provided that updates were carried out, whether these should be saved; this prevents data getting lost.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 19/109...

  • Page 20: Setting

    Select the units which should be displayed. The selected unit is marked by a tick. The units are divided into the following categories: 1. Temperature Celsius and Fahrenheit. 2. Wind m/s, km/h and mph. 4.4.2.5. Time setting  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 20/109...
  • Page 21 6. End of daylight saving time, change over from normal time to daylight saving time – the clock is put back one hour. 7. “OK” for taking over of the setting; ”Cancel” without taking over the setting.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 21/109...
  • Page 22 Change or define new passwords. 4.4.2.7. Position Enter the position of the building (degree of longitude and degree of latitude) either as a number or in degrees.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 22/109...
  • Page 23 -90° to the value 0, 90° corresponds to the value 255). If the definition has reverted, how- ever, select the option “change slats direction“. 7. “Apply “ for taking on the setting. 8. “Cancel” without taking on the settings.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 23/109...
  • Page 24 0° is the value 0 and 90° is the value 255). If the definition is reversed, please choose the option “change slats direction“. 4.4.2.8.2. Interior Venetian Blind (DC) +90°/-90°  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 24/109...
  • Page 25 -90° is the value 0, 90° is the value 255). If the definition is reversed, please choose the option “change slats direction“. 4.4.2.8.3. Interior Roller Blind Define following zone parameters: Choose kind of end product in each zone (a) and display of the chosen end product (b)  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 25/109...
  • Page 26 Choose kind of end product in each zone (a) and display of the chosen end product (b) 4.4.2.8.5. Interior Vertical Venetian Blind Define following zone parameters: Choose kind of end product in each zone (a) and display of the chosen end product (b)  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 26/109...
  • Page 27 Changing slats orientation by using +90°/0° exterior Venetian blind: (as standard the slats orienta- tion of 0° is the value 0, +90° is the value 255). If the definition is reversed, please choose the op- tion “change slats orientation“.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 27/109...
  • Page 28 -90° is the value 0, 90° is the value 255). If the definition is reversed, please choose the op- tion "change slats direction“. 4.4.2.8.8. Exterior Screen Define following zone parameters: 1. Choose kind of end product in each zone (a) and display of the chosen end product (b)  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 28/109...
  • Page 29 1. Choose kind of end product in each zone (a) and display of the chosen end product (b) 4.4.2.8.10. Exterior Roller Shutter Define following zone parameters: 1. Choose kind of end product in each zone (a) and display of the chosen end product (b)  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 29/109...
  • Page 30 1. Choose kind of end product in each zone (a) and display of the chosen end product (b) 4.4.2.8.12. Exterior Folding Arm Awning Define following zone parameters: 1. Choose kind of end product in each zone (a) and display of the chosen end product (b)  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 30/109...
  • Page 31 – 90° is the value 0, 90° is the value 255). If the definition is reversed, please choose the op- tion “change slats direction“. 4.4.2.8.14. Vertical Fixed Louvers (tilt only)  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 31/109...
  • Page 32 1. Choose kind of end product in each zone (a) and display of the chosen end product (b) 4.4.2.8.16. ZIP-Screen Define following zone parameters: 1. Choose kind of end product in each zone (a) and display of the chosen end product (b)  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 32/109...
  • Page 33 Choose kind of end product in each zone (a) and display of the chosen end product (b) 4.4.2.8.18. Window opened outdoors Define following zone parameters: 1. Choose kind of end product in each zone (a) and display of the chosen end product (b)  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 33/109...
  • Page 34 Choose kind of end product in each zone (a) and display of the chosen end product (b) Slats angle for an open Venetian blind Slats angle for a closed Venetian blind Example for a standard façade with 0° (A) and with 10° slant (B):  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 34/109...
  • Page 35 Upon activating Outside Sensor Box, the number of individual sensors has to be set in each sensor sub menu e.g wind, wind direction. 2. “Apply“ for taking on the setting. 3. “Cancel” for quitting without setting.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 35/109...
  • Page 36 3. No heated wind sensors used: Select if heated wind sensors (ref.9140180) are connected. A combination of heated and unheated sensors is not permitted. 4. Alias of wind sensor. 5. “Apply“ for taking on the setting. 6. “Cancel” for quitting without setting.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 36/109...
  • Page 37 2. Wind direction sensor; 0 to 1 wind direction sensor can be activated. Wind direction sensor is connected to the Outside Sensor Box. 3. Alias of wind direction sensor. 4. “Apply“ for taking on the setting. 5. “Cancel” for quitting without setting.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 37/109...
  • Page 38 2. Sun sensors; 0 to 8 solar sensors can be activated. Sun sensors are connected to the Outside Sensor Box. 3. Alias of sun sensor. 4. “Apply“ for taking on the setting. 5. “Cancel” for quitting without setting.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 38/109...
  • Page 39 2. Rain sensor; from 0 to 1 rain sensor can be activated. Rain sensor is connected to the Outside Sensor Box. 3. Alias of rain sensor. 4. “Apply“ for taking on the setting. 5. “Cancel” for quitting without setting.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 39/109...
  • Page 40 2. Outside temperature sensor; 0 to 1 outside temperature sensors can be activated. Outside temperature sensor is connected to the Outside Sensor Box. 3. Alias of outside temperature sensor. 4. “Apply“ for taking on the setting. 5. “Cancel” for quitting without setting.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 40/109...
  • Page 41 The KNX Master Control and the “Shadow Device” synchronize themselves once per minute based on date and time of the KNX Master Control. For further details see the operating instructions of the “Shadow Device”  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 41/109...

  • Page 42: Help

    In this sub point you can call up the program help files; you also find this manual there. The help file can also be called up with F1. 4.4.3.2. Homepage In this sub point a browser is automatically started and opens the corresponding Somfy internet address automatically for further information. 4.4.3.3. Info 1.

  • Page 43: Status

    The state of the indi- vidual function is defined by its colour. The arrows appear during the delay time of the function to be performed.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 43/109...
  • Page 44 Snow: The snow alarm is triggered at temperatures under 4° C and the measurement by rain is triggered. Then all end products in a zone go to the safety position (chapter 4.7.1.8).  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 44/109...

  • Page 45: Sensor Status

    In the navigation bar click on “status” and then on “sensors”. In the register “sensors: wind, sun, rain” the sensor values are indicated which are directly in the KNX Master Control or are connected via the Outside Sensor Box.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 45/109...
  • Page 46 In the register “sensor: inside, outside temperature”, the sensor values are indicated which are con- nected via the KNX Master Control on the Outside Sensor Box or received via the object “KNX.MC.Zone_In_Temp_2Byte_IN[n]”.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 46/109...
  • Page 47 5. Details of the sensor function. When the sensor functions interference-free, “OK” appears in the LED display (green). With an interference “error” (red) will appear. 6. Eventual details of errors with sensor interference.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 47/109...

  • Page 48: Control

    10. Selection of desired angle which will be moved to after activating; “Go to set values” (not available with all end products). 11. Click to carry out the previously set value under Position (point 9) or Angle (point 10).  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 48/109...

  • Page 49: Locking Command

    KNX object KNX.MC.Zone_Key_Switch_Bit_IN[n]. Both functions are equal but only the last order is carried out. Parameter: 1. Locking interface for the individual zones. 2. Selected zone names. 3. Locking interface for the whole building (all zones).  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 49/109...

  • Page 50: Setting

    7. Select sun function (chapter 4.7.1.3.) and sun tracking (chapter 4.7.1.6.). 8. Select rain, snow and frost/ice function (chapter 4.7.1.8), 9. Select zone timer function (chapter 4.7.1.9). 10. Select reset control to automatic (chapter 4.7.1.10.).  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 50/109...
  • Page 51 (4), before the wind function is deactivated. 7. Use KNX Object Low Prio only active in use with wind direction (chapter 4.7.1.2.1.).  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 51/109...
  • Page 52 6. The function wind direction uses the response times and delay times of the wind function. 4.7.1.2.1. Use Of KNX Object Low Prio With “Use KNX Object Low Prio” will be two KNX objects (KNX.MC.Zone_Security_Low_Prio_Bit_OUT) and (KNX.MC.Zone_Security_High_Prio_Bit_OUT) active.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 52/109...
  • Page 53 KNX.MC.Zone_Slat_Position_1Byte_OUT (angle of the end product). In parallel a „1“ is sent to the KNX object KNX.MC.Zone_Sun-Function_Bit_OUT as soon as the sun function is active and a „0“ when the function is inactive.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 53/109...
  • Page 54 13. Position which is moved to with exceeding the on set value (4). 14. Angle, which is moved to with exceeding the on set value (4). Not available with all end products. 15. Azimuth range and elevation angle see chapter 4.7.1.7  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 54/109...
  • Page 55 OFF Position. Click on the button OFF Position (2) to adjust it. This function is only carried out if no other function with a higher priority is active. The corresponding KNX objects are KNX.MC.Zone_Position_UP_DOWN_1Byte_OUT, KNX.MC.Zone_Slat_Position_1Byte_OUT , and KNX.MC.Zone_Sun-Function_Bit_OUT.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 55/109...
  • Page 56 This function is only carried out if no other function with a higher priority is active. The corresponding KNX objects are KNX.MC.Zone_Position_UP_DOWN_1Byte_OUT , KNX.MC.Zone_Slat_Position_1Byte_OUT and KNX.MC.Zone_Sun-Function_Bit_OUT. Parameter: 1. Select sun tracking. 2. Settings; an extra window is opened for setting sun tracking (see picture below).  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 56/109...
  • Page 57 9. Time zone: States the time zone of the building. Setting is done under settings – zones (chapter 4.4.2.5). 10. “Apply” for taking on the setting. 11. “Cancel” for quitting without settings. 12. Graphic display of the end product. Setting is done under settings - zones (chapter 4.4.2.8).  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 57/109...
  • Page 58 12. “Cancel” to quit without settings. 13. Graphic display of the end product. Setting is done under settings – zones (chapter 4.4.2.8). 4.7.1.6.3. Suntracking with exterior vertical Venetian blind (tilt only)  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 58/109...
  • Page 59 4.4.2.5). 10. “Apply” for taking on the settings. 11. “Cancel” for quitting without settings. 12. Graphic display of the end product. Setting is done under settings - zones (chapter 4.4.2.8).  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 59/109...
  • Page 60 The sun function is not active below this value The sun function is not active above this value This function is only executed when no other function with higher priority has been activated.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 60/109...
  • Page 61 5. Off delay time span, during rain or snow is not detected any more, before the rain function or snow function is deactivated.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 61/109...
  • Page 62 Generally, the protective angle is 180 ° and the direction will be measured according to the orienta- tion of the façade center.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 62/109...
  • Page 63 Change time interval: With pressed mouse button on one of the bar ends of the time interval to be changed (2), click and drag this in the desired direction. Release the mouse button. The set time is displayed on the right beside the bar.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 63/109...
  • Page 64 5. Enable/disable to send the current position and angle of the end product. a. KNX.MC.Zone_Position_UP_DOWN_1Byte_OUT “0-255”, the current calculated position. b. KNX.MC.Zone_Slat_Position_1Byte_OUT “0-255”, the current calculated angle. Not in all end products available.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 64/109...
  • Page 65 6. “Select all”, all parameters (4) are activated. 7. “Copy”, activated parameters (4) are copied from the source to the destination. After successfully copying, these are displayed in green. 8. “Close”, to close the current window.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 65/109...

  • Page 66: Setting Of The Functions - Timer Via Knx Object

    4. Select “Weekly Timer (Byte)” (chapter 4.7.2.3.). 5. Enable/disable Timer. 6. Assigned timer description H when the description is changed, this is not stored in the KNX Master Control W2/W8 but on the PC being used  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 66/109...
  • Page 67 2. Time () Exception defines one or more days (chapter 4.7.2.1.1). 3. Exception period defines a time period (chapter 4.7.2.1.2). 4. “OK” for taking on the setting. 5. “Cancel” for quitting without settings.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 67/109...
  • Page 68 Selection of the Bit telegram [“0“, “1“ or “-“(nothing)] which will be sent. 2. Key with explanation. 3. “Apply” for taking on the setting. 4. “Cancel” for quitting without taking on settings.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 68/109...
  • Page 69 B2 Selection of the Bit telegram [“0“, “1“ or “-“(nothing)] which will be sent. 5. The second exception period 6. “Apply” for taking on the setting. 7. “Cancel” for quitting without taking on settings.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 69/109...
  • Page 70 Time at which the Bit value set under D2 will be sent. Selection of the Bit telegram [“0“, “1“ or “-“(nothing)] which will be sent. 2. “OK” for taking on the setting. 3. “Cancel” for quitting without settings.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 70/109...
  • Page 71 Time at which set position and angle under B3 and B4 will be sent 2. Angle 0° 90°, limits the turning angle of the end product from -90°/+90° to 0°/90. 3. “OK” for taking on the setting. 4. “Cancel” for quitting without settings.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 71/109...

  • Page 72: Energy Mode

    4. Select “sensor allocation“. 5. Activate/deactivate inside temperature sensor. 6. Display if outside temperature sensor is activate/deactivate (chapter 4.4.2.9.6). 7. Display sun sensors activated under sun function 4.4.2.9.4 for this zone.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 72/109...
  • Page 73 7. Position, to which is moved to with activating the function (2). 8. Angle, to which is moved to with activating the function (2).  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 73/109...
  • Page 74 7. Position, to which is moved to with activating the function (2). 8. Angle, to which is moved to with activating the function (2).  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 74/109...
  • Page 75 8. Position, to which is moved to with activating the function (2). 9. Angle, to which is moved to with activating the function (2).  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 75/109...
  • Page 76 7. Outside/inside temperature threshold the necessary measured temperature delta which must be exceeded or be below to activate or deactivate the function. 8. Position, to which is moved to with activating the function.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 76/109...

  • Page 77: Log

    2. Select sensor (wind, sun or other sensors) for the protocol to be displayed. 3. Select month for the protocol to be displayed. 4. Date/time. 5. Protocolled sensor value. 6. Delete current protocol. 7. Update current protocol.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 77/109...
  • Page 78 1. Select functions. 2. Select month for the protocol to be displayed. 3. Date/time. 4. Name of function. 5. Details of zone. 6. Value (true = active, false = inactive).  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 78/109...

  • Page 79: Log Errors

    All errors are saved since the start of the project and are displayed here. Parameter: 1. Select month for the protocol to be displayed. 2. Date/time. 3. Type of error. 4. Error information. 5. Error. 6. Delete current protocol. 7. Update current protocol.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 79/109...

  • Page 80: Ets Programming

    6. 4 Languages: Here you can choose to import all languages or make an additional selection. Then click the [Next] button. 7. The Summary relists all the selections made. Then click the [Import] button.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 80/109...
  • Page 81 KNX Master Control W2/W8 The progress of the installation is indicated: The product database of the ETS is then automatically updated and contains the KNX Module, KNX IP Controller or the Router.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 81/109...

  • Page 82: Download Individual Address Of Knx/Tp1 Module

    Shortly afterwards, the green LED’s “C“, “H“ and “E“ will blink. The physical address of the KNX termi- nal has been programmed successfully when the green LED’s “E” and “H” are continuously lit.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 82/109...

  • Page 83: Opening The Ets Plug-In

    Click Edit Parameters in the context menu of a device in the ETS to open the ETS Plug-in and configure the device. The dialog for the license agreement of the WAGO software opens: Please read the license agreement carefully.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 83/109...

  • Page 84: Importing A Symbol File In The Ets Plug-In

    2. Select the Import SYM-XML file… menu item. 3. In the “Select SYM-XML file for this device” window, select a SYM_XML file containing the specific configuration of the KNX Module or KNX IP Controller.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 84/109...

  • Page 85: Knx/Tp1 Module Parameterization

    5.5.1. Graphical User Interface of the ETS Plug-in The graphical user interface displays all relevant data applicable to configuring the KNX Module. The main window is divided into various areas, which are described in the following sections:  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 85/109...

  • Page 86: Main Menu

    5.5.2. Main menu The main menu contains the following items, each contains its own submenu items: • File • View • Options • Help 5.5.3. “File” Menu Item  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 86/109...
  • Page 87 (see “Print…” menu item). Exit… Closes the Plug-in. If the modifications have not been saved, the soft- ware will provide a prompt with the option to save the changes.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 87/109...

  • Page 88: View" Menu Item

    3. Left-click [Open] to import the file and close the dialog. 4. A warning prompt indicates that importing a configuration will overwrite all existing settings and assignments. If you agree, click the [Yes] button. 5.5.4. “View” Menu Item  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 88/109...

  • Page 89: Options" Menu Item

    5.5.5. “Options” Menu Item Menu Item Description Options This opens the “Options” dialog to enter settings for functions such as telegram delay and automatic save. The Options… menu item opens the “Options” dialog.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 89/109...
  • Page 90 The “Autosave” function is identical to the normal “Save” function and saves changes in the ETS data- base. An XML file is not saved (as is the case with File > Export > XML (Backup)).  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 90/109...

  • Page 91: Help" Menu Item

    Checkbox for enabling or disabling visibility in the ETS. (Table row number) Consecutive number of the table rows. CO ref. (Communication Communication object number in the ETS' topology. object number) The communication object number is assigned automat- ically.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 91/109...
  • Page 92 In order to change the properties of several network variables at the same time, you can mark several lines in the “List of network variables” simultaneously. The changes that you make in the “Properties” tab then apply to all network variables marked in the list.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 92/109...

  • Page 93: Network Variables" Tab - Eib Datatypes

    H Only one attribute (data type/datawidth) can be used as a filter! Only one attribute can be entered as a filter. Multiple selection in the EIB datatype window is not pos- sible.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 93/109...

  • Page 94: Properties" Tab

    If you have made multiple selections in the “List of network variables”, the properties of all selected network variables can be updated simultaneously. Checkboxes in which the selected network varia- bles are different are marked in blue (see figure “Multiple selection for editing network variables”).  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 94/109...

  • Page 95: Status Bar

    1. On your PC, open the Control Panel and click “Programs”, [Uninstall a program]. The entry “Wago-TP1Clamp” is shown in the software list. 2. Right-click the required entry and choose [Uninstall] in the context menu.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 95/109...

  • Page 96: Communication Objects

    KNX.MC.Info_Version_2Byte_OUT 2 Byte The object sends telegrams with the soft- ware Version the KNX Master Control. KNX.MC.Info_Wind_Dir_1Byte_OUT 1 Byte The object sends telegrams with the value of the wind direction.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 96/109...
  • Page 97 0 and 255 (e.g. position) if the function ”timer weekly byte” becomes KNX.MC.Timer_Weekly_Position_UP_DOWN_ active They send “0” if the function be- 1Byte_OUT[2] comes inactive (chapter 4.7.2.3). KNX.MC.Timer_Weekly_Position_UP_DOWN_ 1Byte_OUT[3] KNX.MC.Timer_Weekly_Position_UP_DOWN_ 1Byte_OUT[4]  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 97/109...
  • Page 98 KNX indoor tempera- KNX.MC.Zone_In_Temp_2Byte_IN[2] ture sensor. These values are used for KNX.MC.Zone_In_Temp_2Byte_IN[3] the energy functions (chapter 4.7.3). KNX.MC.Zone_In_Temp_2Byte_IN[4] KNX.MC.Zone_In_Temp_2Byte_IN[5] KNX.MC.Zone_In_Temp_2Byte_IN[6] KNX.MC.Zone_In_Temp_2Byte_IN[7] KNX.MC.Zone_In_Temp_2Byte_IN[8] KNX.MC.Zone_In_Temp_2Byte_IN[9] KNX.MC.Zone_In_Temp_2Byte_IN[10] KNX.MC.Zone_In_Temp_2Byte_IN[11] KNX.MC.Zone_In_Temp_2Byte_IN[12] KNX.MC.Zone_In_Temp_2Byte_IN[13]  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 98/109...
  • Page 99 KNX Master Control under¬stands it KNX.MC.Zone_Major_Alarm_Bit_IN[2] as an alarm input signal and sends “1” on KNX.MC.Zone_Major_Alarm_Bit_IN[3] the object KNX.MC.Zone_Security_ High_Prio _Bit_OUT. KNX.MC.Zone_Major_Alarm_Bit_IN[4] KNX.MC.Zone_Major_Alarm_Bit_IN[5] KNX.MC.Zone_Major_Alarm_Bit_IN[6] KNX.MC.Zone_Major_Alarm_Bit_IN[7] KNX.MC.Zone_Major_Alarm_Bit_IN[8] KNX.MC.Zone_Major_Alarm_Bit_IN[9] KNX.MC.Zone_Major_Alarm_Bit_IN[10] KNX.MC.Zone_Major_Alarm_Bit_IN[11] KNX.MC.Zone_Major_Alarm_Bit_IN[12] KNX.MC.Zone_Major_Alarm_Bit_IN[13] KNX.MC.Zone_Major_Alarm_Bit_IN[14] KNX.MC.Zone_Major_Alarm_Bit_IN[15] KNX.MC.Zone_Major_Alarm_Bit_IN[16]  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 99/109...
  • Page 100 UT[16] KNX.MC.Zone_Security_High_Prio_Bit_OUT[1] 1 bit Per zone: when a high alarm function (e.g. wind) is active, the objects send “1”. KNX.MC.Zone_Security_High_Prio_Bit_OUT[2] KNX.MC.Zone_Security_High_Prio_Bit_OUT[3] KNX.MC.Zone_Security_High_Prio_Bit_OUT[4] KNX.MC.Zone_Security_High_Prio_Bit_OUT[5] KNX.MC.Zone_Security_High_Prio_Bit_OUT[6] KNX.MC.Zone_Security_High_Prio_Bit_OUT[7] KNX.MC.Zone_Security_High_Prio_Bit_OUT[8] KNX.MC.Zone_Security_High_Prio_Bit_OUT[9] KNX.MC.Zone_Security_High_Prio_Bit_OUT[10] KNX.MC.Zone_Security_High_Prio_Bit_OUT[11] KNX.MC.Zone_Security_High_Prio_Bit_OUT[12]  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 100/109...
  • Page 101 KNX.MC.Zone_Slat_Position_1Byte_OUT[3] KNX.MC.Zone_Slat_Position_1Byte_OUT sends this value when no function with a KNX.MC.Zone_Slat_Position_1Byte_OUT[4] higher priority is active. KNX.MC.Zone_Slat_Position_1Byte_OUT[5] KNX.MC.Zone_Slat_Position_1Byte_OUT[6] KNX.MC.Zone_Slat_Position_1Byte_OUT[7] KNX.MC.Zone_Slat_Position_1Byte_OUT[8] KNX.MC.Zone_Slat_Position_1Byte_OUT[9] KNX.MC.Zone_Slat_Position_1Byte_OUT[10] KNX.MC.Zone_Slat_Position_1Byte_OUT[11] KNX.MC.Zone_Slat_Position_1Byte_OUT[12] KNX.MC.Zone_Slat_Position_1Byte_OUT[13] KNX.MC.Zone_Slat_Position_1Byte_OUT[14] KNX.MC.Zone_Slat_Position_1Byte_OUT[15] KNX.MC.Zone_Slat_Position_1Byte_OUT[16]  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 101/109...
  • Page 102 Per zone: the objects send "1" if the sun function becomes active. If the function KNX.MC.Zone_Sun_Function_Bit_OUT[2] becomes inactive, "0" is sent (chapter KNX.MC.Zone_Sun_Function_Bit_OUT[3] 4.7.1.3). KNX.MC.Zone_Sun_Function_Bit_OUT[4] KNX.MC.Zone_Sun_Function_Bit_OUT[5] KNX.MC.Zone_Sun_Function_Bit_OUT[6] KNX.MC.Zone_Sun_Function_Bit_OUT[7] KNX.MC.Zone_Sun_Function_Bit_OUT[8] KNX.MC.Zone_Sun_Function_Bit_OUT[9] KNX.MC.Zone_Sun_Function_Bit_OUT[10] KNX.MC.Zone_Sun_Function_Bit_OUT[11] KNX.MC.Zone_Sun_Function_Bit_OUT[12] KNX.MC.Zone_Sun_Function_Bit_OUT[13] KNX.MC.Zone_Sun_Function_Bit_OUT[14] KNX.MC.Zone_Sun_Function_Bit_OUT[15] KNX.MC.Zone_Sun_Function_Bit_OUT[16]  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 102/109...

  • Page 103: Changing The Ip Address

    7.1.2. Carrying out the IP address change Open your web browser and enter the corresponding IP address of the animeo KNX Master Control (factory setting 192.168.0.2). Now change to “TCP/IP” in the left hand navigation bar.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 103/109...
  • Page 104 After clicking, a new menu window appears which requests you to enter a user name and password. Please enter as user name admin (small letters, not capitals) and as password wago (small letters) and confirm with “OK”.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 104/109...

  • Page 105: Assigning Ip Address Via Address Selection Switch

    2. Set the bits in sequence using the 8 address switches. Start with address switch 1 to set bit 0 (LSB) and end with address switch 8 for bit 7 (MSB). 3. Restart the fieldbus coupler after adjusting the address selection switch to apply the configuration changes.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 105/109...
  • Page 106 The configuration of the IP address consists of the network address (configurable and 192.168.1 by default) and the value set for the DIP switch. The DHCP protocol is used to configure the IP parameters.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 106/109...

  • Page 107: New Start

    LED’s, “LINK”, “MS”, “NS”, “TXD/RXD” and “I/O” light up green (see also chapter 1.4.1.1ff). The animeo KNX Master Control has been successfully started and has taken on the new IP address.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 107/109...

  • Page 108: Operating Switch

    STOP or at RUN at any position of the mode selector switch. Restart the fieldbus controller. The operating mode is changed internally at the end of a PFC cycle.  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 108/109...

  • Page 109: Technical Data

    The KNX Master Control is an electronically-operated, independently-mounted control. • Class A control function • Type 1 action • Pollution degree: 2 • Type X attachment • Method of attachment for non-detachable cords: screwless spring terminal  2011-2017, SOMFY ACTIVITES SA ALL RIGHTS RESERVED 2017/03/31 109/109...
