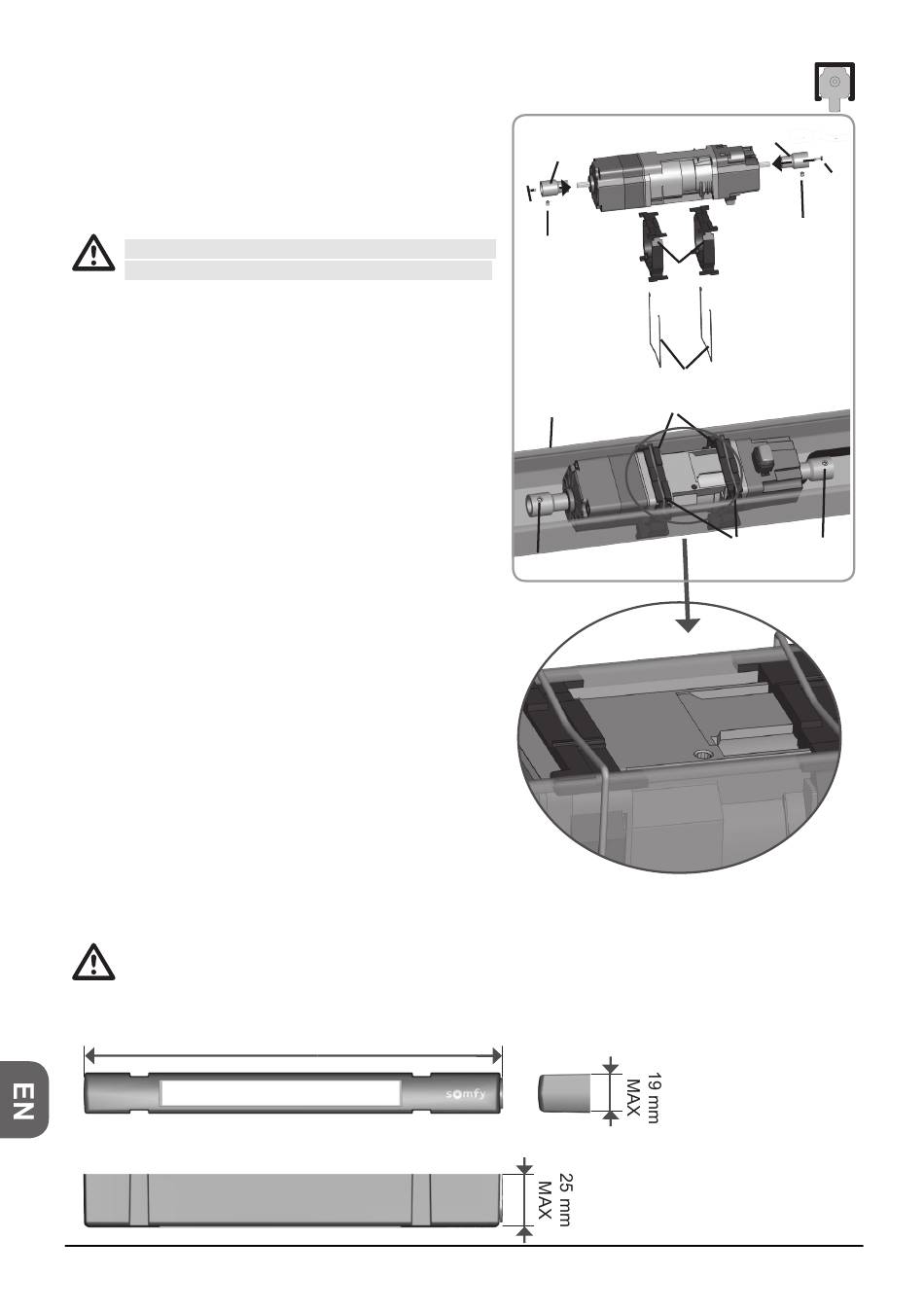

3.5 67 x 66 mm head rail, open below
• Screw the 2 adaptors (1) using 2 M3 x 8 bolts (2) on
the motor shaft.
Tightening torque = 1.1 Nm
Ensure that the J4 io plate cable does not pass
over a rotating part of the motor or mechanism.
• Fit the two head rail adaptors (8) on the motor.
• Insert the motor into the head rail (4).
• Using the clips (5), attach the motor in the head rail (4).

3.6 J4 io Plate

The J4 io plate is supplied connected to the motor; it must be integrated into or on the outside
of the head rail. If Somfy sensor is being used, the plate must be fixed to the outside of the
head rail.
62
191 mm
1
2
7
4
7
© 2011 Somfy SAS. All rights reserved. 11/2011
