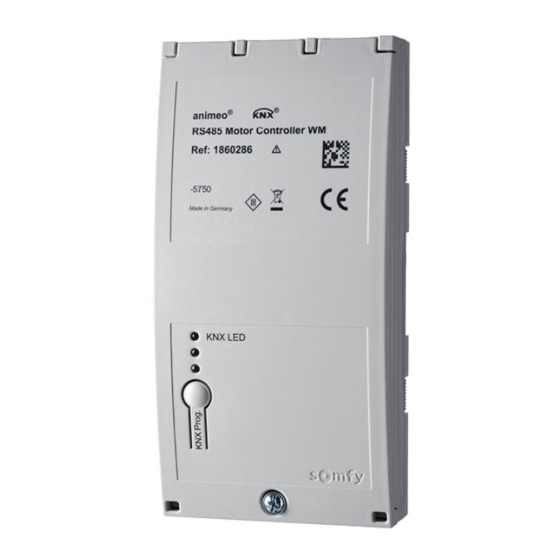

SOMFY animeo KNX RS485 Operating Manual

Motor controller wm
Hide thumbs Also See for animeo KNX RS485:
Table of Contents

Advertisement

Quick Links

© 2017-2020, SOMFY ACTIVITES SA . ALL RIGHT RESERVED . REF. 5134039D – 2020/02/26
© 2017-2020, SOMFY ACTIVITES SA . ALL RIGHTS RESERVED : REF. 5134039D – 2020/05/31

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the animeo KNX RS485 and is the answer not in the manual?

Questions and answers

Related Manuals for SOMFY animeo KNX RS485

Summary of Contents for SOMFY animeo KNX RS485

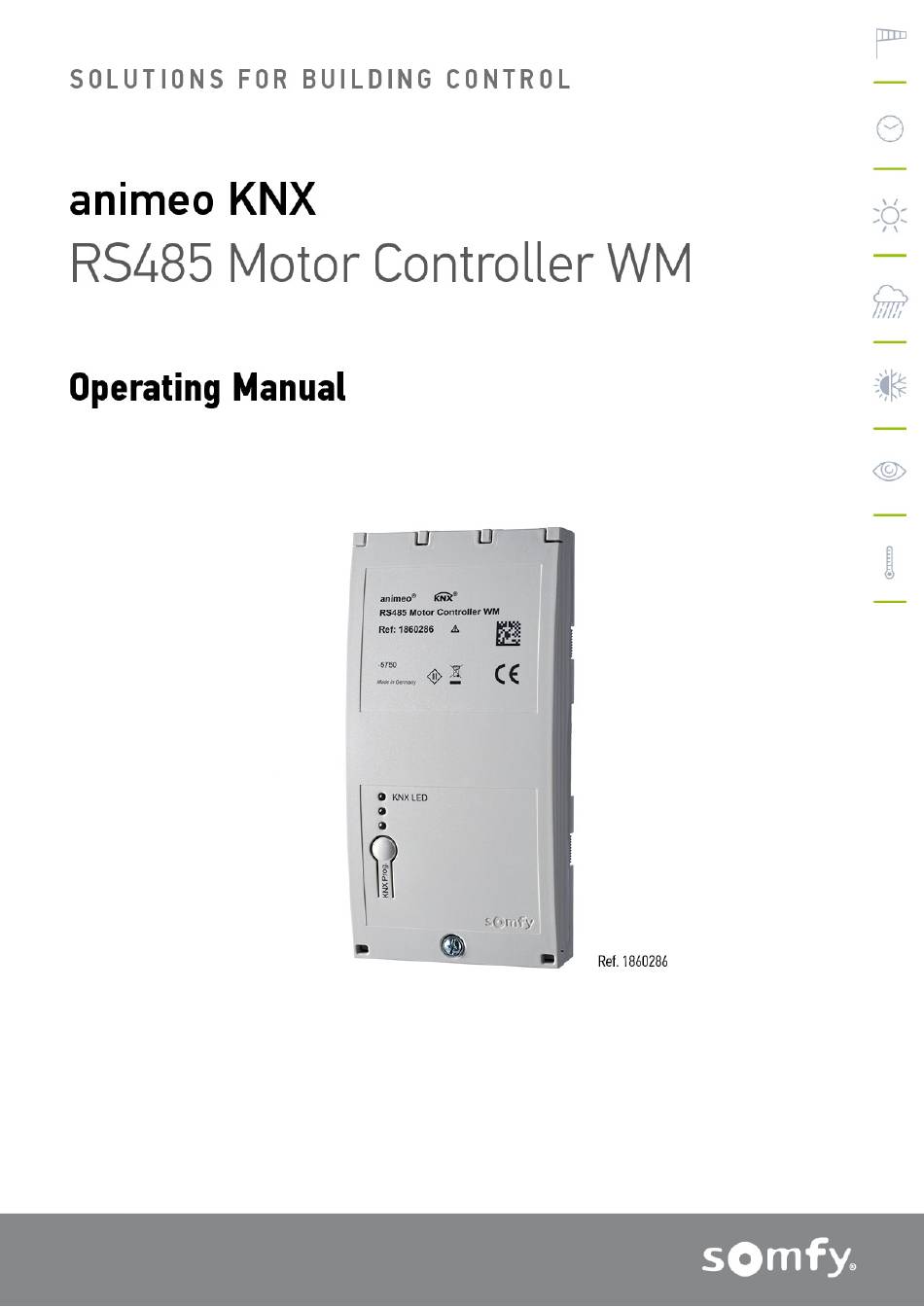

  • Page 1 © 2017-2020, SOMFY ACTIVITES SA . ALL RIGHT RESERVED . REF. 5134039D – 2020/02/26 © 2017-2020, SOMFY ACTIVITES SA . ALL RIGHTS RESERVED : REF. 5134039D – 2020/05/31...

  • Page 2: Table Of Contents

    General information ........................35 Appendix ............................37 Different types of motors could be used and connected on the animeo KNX RS485 Motor Con- troller. Before connecting motor and Motor Controller make sure that the end limits of the motors have been set correctly.
  • Page 3 • The exact position of the blind during movement and when reaching the upper and lower end limits can be monitored. • Using a one Byte telegram over the KNX, the blind can be moved to numerous intermediate posi- tions. animeo KNX RS485 Motor Controller WM . Ref. 5134039E 3/38...

  • Page 4: First Operation

    7. Create ETS project and download it. 8. After a waiting time of approx. 1 minute after downloading the Motor Controller is ready for operation. 2 Wiring diagram , ref. 9019005 animeo KNX RS485 Motor Controller WM . Ref. 5134039E 4/38...
  • Page 5 Somfy RS485 guidelines (see “SDN Bus wiring guide” in Somfy Digital Network (RS485) section at www.somfy.com/pro- jects/downloads) KNX Bus 2 x 0.8 mm/20 AWG Required, following KNX – topology guidelines animeo KNX RS485 Motor Controller WM . Ref. 5134039E 5/38...

  • Page 6: Communication Objects

    The sent value of this communication object depends on what has been selected in the ETS parameters. • 1/0 (1 = error, 0 = no error) or • 0/1 (0 = error, 1 = no error) animeo KNX RS485 Motor Controller WM . Ref. 5134039E 6/38...
  • Page 7 Motor 5 Feedback Lower End 1 Bit 1.001 See object description no. 5 for motor 1 Motor 5 Error Feedback 1 Bit 1.001 See object description no. 6 for motor 1 animeo KNX RS485 Motor Controller WM . Ref. 5134039E 7/38...
  • Page 8 Motor 10 Feedback Position 1 Byte 5.001 See object description no. 2 for motor 1 Motor 10 Feedback Slat 1 Byte 5.001 See object description no. 3 for motor 1 animeo KNX RS485 Motor Controller WM . Ref. 5134039E 8/38...
  • Page 9 See object description no. 6 for motor 1 Motor 14 Identification 4 Bytes 12.* See object description no. 7 for motor 1 Motor 14 Cycles 4 Bytes 12.001 See object description no. 8 for motor 1 animeo KNX RS485 Motor Controller WM . Ref. 5134039E 9/38...
  • Page 10 See object description no. 6 for motor 1 Motor 18 Identification 4 Bytes 12.* See object description no. 7 for motor 1 Motor 18 Cycles 4 Bytes 12.001 See object description no. 8 for motor 1 animeo KNX RS485 Motor Controller WM . Ref. 5134039E 10/38...
  • Page 11 If a telegram with the value "1" is received on this communication object, the blind goes to the intermediate position 1 which was config- ured by local switch or parameterized in the ETS parameters. The last position which has animeo KNX RS485 Motor Controller WM . Ref. 5134039E 11/38...
  • Page 12 If a telegram with the value "0" is received on this communication object prior- ity manual functions are active for the blind. animeo KNX RS485 Motor Controller WM . Ref. 5134039E 12/38...
  • Page 13 1 Byte 5.001 See object description no. 148 for command group 1 Command Group 3 Position auto- 1 Byte 5.001 See object description no. 149 for command matic group 1 animeo KNX RS485 Motor Controller WM . Ref. 5134039E 13/38...
  • Page 14 Command Group 4 Reset priority 1 Bit 1.017 See object description no. 157 for command group 1 Command Group 5 Up/Down 1 Bit 1.008 See object description no. 145 for command group 1 animeo KNX RS485 Motor Controller WM . Ref. 5134039E 14/38...
  • Page 15 Command Group 6 Security low prio 1 Bit 1.001 See object description no. 153 for command group 1 Command Group 6 Security high 1 Bit 1.001 See object description no. 154 for command animeo KNX RS485 Motor Controller WM . Ref. 5134039E 15/38...
  • Page 16 1 Byte 5.001 See object description no. 148 for command group 1 Command Group 8 Position auto- 1 Byte 5.001 See object description no. 149 for command matic group 1 animeo KNX RS485 Motor Controller WM . Ref. 5134039E 16/38...
  • Page 17 Command Group 9 Reset priority 1 Bit 1.017 See object description no. 157 for command group 1 Command Group 10 Up/Down 1 Bit 1.008 See object description no. 145 for command group 1 animeo KNX RS485 Motor Controller WM . Ref. 5134039E 17/38...
  • Page 18 Command Group 11 Security low 1 Bit 1.001 See object description no. 153 for command prio group 1 Command Group 11 Security high 1 Bit 1.001 See object description no. 154 for command animeo KNX RS485 Motor Controller WM . Ref. 5134039E 18/38...
  • Page 19 1 Byte 5.001 See object description no. 148 for command group 1 Command Group 13 Position auto- 1 Byte 5.001 See object description no. 149 for command matic group 1 animeo KNX RS485 Motor Controller WM . Ref. 5134039E 19/38...
  • Page 20 Command Group 14 Reset priority 1 Bit 1.017 See object description no. 157 for command group 1 Command Group 15 Up/Down 1 Bit 1.008 See object description no. 145 for command group 1 animeo KNX RS485 Motor Controller WM . Ref. 5134039E 20/38...
  • Page 21 Command Group 16 Security low 1 Bit 1.001 See object description no. 153 for command prio group 1 Command Group 16 Security high 1 Bit 1.001 See object description no. 154 for command animeo KNX RS485 Motor Controller WM . Ref. 5134039E 21/38...
  • Page 22 1 Byte 5.001 See object description no. 148 for command group 1 Command Group 18 Position auto- 1 Byte 5.001 See object description no. 149 for command matic group 1 animeo KNX RS485 Motor Controller WM . Ref. 5134039E 22/38...
  • Page 23 1 Bit 1.001 See object description no. 156 for command matic/manual group 1 Command Group 18 Reset priority 1 Bit 1.017 See object description no. 157 for command group 1 animeo KNX RS485 Motor Controller WM . Ref. 5134039E 23/38...

  • Page 24: Parameter

    The number of connected motors in ETS must correspond to the number of connected motors on the Motor Controller. Motors connected Options:  1  1 – 18 Groups used Options:  1  1 – 18 animeo KNX RS485 Motor Controller WM . Ref. 5134039E 24/38...

  • Page 25: Menu Index Card "Motor 1

    Application with tilting function If the end product is Venetian blinds, the "Yes" parameter must be set here. “No” applies to all other types of blinds. animeo KNX RS485 Motor Controller WM . Ref. 5134039E 25/38...
  • Page 26 The end limit will be adjusted into the down direction by the set value as soon as the application is down- loaded via the ETS software. If “Adjust actual end limit” is set, you have to set the parameter back to “No” to avoid changing the end limits again! animeo KNX RS485 Motor Controller WM . Ref. 5134039E 26/38...
  • Page 27 This will set the motor running direction. So, if an UP command is sent, the motor will move with a clockwise rotation. • As it is No change of the motor running direction. animeo KNX RS485 Motor Controller WM . Ref. 5134039E 27/38...
  • Page 28 • Cyclic This parameter opens a further parameter ("Feedback cycle time") with which the time for cyclical sending is set. animeo KNX RS485 Motor Controller WM . Ref. 5134039E 28/38...

  • Page 29: Group Assignment

    The settings for the group assignments are exemplarily described on “Motor 1”. Depending on the number of motors selected in the menu “Motor Controller”, the settings have to be done for all further motors (motor 1….18). animeo KNX RS485 Motor Controller WM . Ref. 5134039E 29/38...

  • Page 30: Menu Index Card "Command Group 1

    The settings for the command groups are exemplarily described on “Command Group 1”. Depending on the number of command groups selected in the menu “Command Group”, the settings have to be done for all further command groups (command group 1….18). animeo KNX RS485 Motor Controller WM . Ref. 5134039E 30/38...
  • Page 31 1/4 than the parameterized cyclic monitoring time for the security objects, low and high prior- ity. If the predefined value "0" remains set, the security objects react statically to the values "1" and "0". animeo KNX RS485 Motor Controller WM . Ref. 5134039E 31/38...
  • Page 32 5 p.m. Via the correspond- ing object (156), switching to and from priority manual function and priority automatic function can be done at any time. animeo KNX RS485 Motor Controller WM . Ref. 5134039E 32/38...
  • Page 33 This command can be used to synchronise the tilting of the blind slats. Options:  STEP if all motors stopped  STEP if any motor stopped  STEP regardless motor status animeo KNX RS485 Motor Controller WM . Ref. 5134039E 33/38...

  • Page 34: Technical Data

    -5° C to 50° C Relative humidity max. 85 % Material of housing PC-ABS Housing dimensions 90 x 180 x 45 mm Weight 175 g Degree of protection IP 20 Protection class Conformity www.somfy.com/ce animeo KNX RS485 Motor Controller WM . Ref. 5134039E 34/38...

  • Page 35: General Information

    Avoid to assign one motor in different command groups Synchronized movement of motors is inevitable. Be aware that security and interlocking functions only work on command group level. animeo KNX RS485 Motor Controller WM . Ref. 5134039E 35/38...
  • Page 36 Saved motor IDs won’t be deleted. Write “rescan” in the motor ID parameter of motor 1 to delete all saved motor IDs of the Motor Controller. The search of motor IDs starts afterwards. animeo KNX RS485 Motor Controller WM . Ref. 5134039E 36/38...

  • Page 37: Appendix

    Command Group 3 Position manual (Byte) Automatic Position Command Command Group 3 Position autom (Byte) Command Group 3 Secir ity low prio Security Command (Wind, Rain …) Command Group 3 Secir ity high prio animeo KNX RS485 Motor Controller WM . Ref. 5134039E 37/38...
