www.somfy.com
Chronis Smart RTS
Operating and installation guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Chronis Smart RTS and is the answer not in the manual?

Questions and answers

Related Manuals for SOMFY Chronis Smart RTS

Summary of Contents for SOMFY Chronis Smart RTS

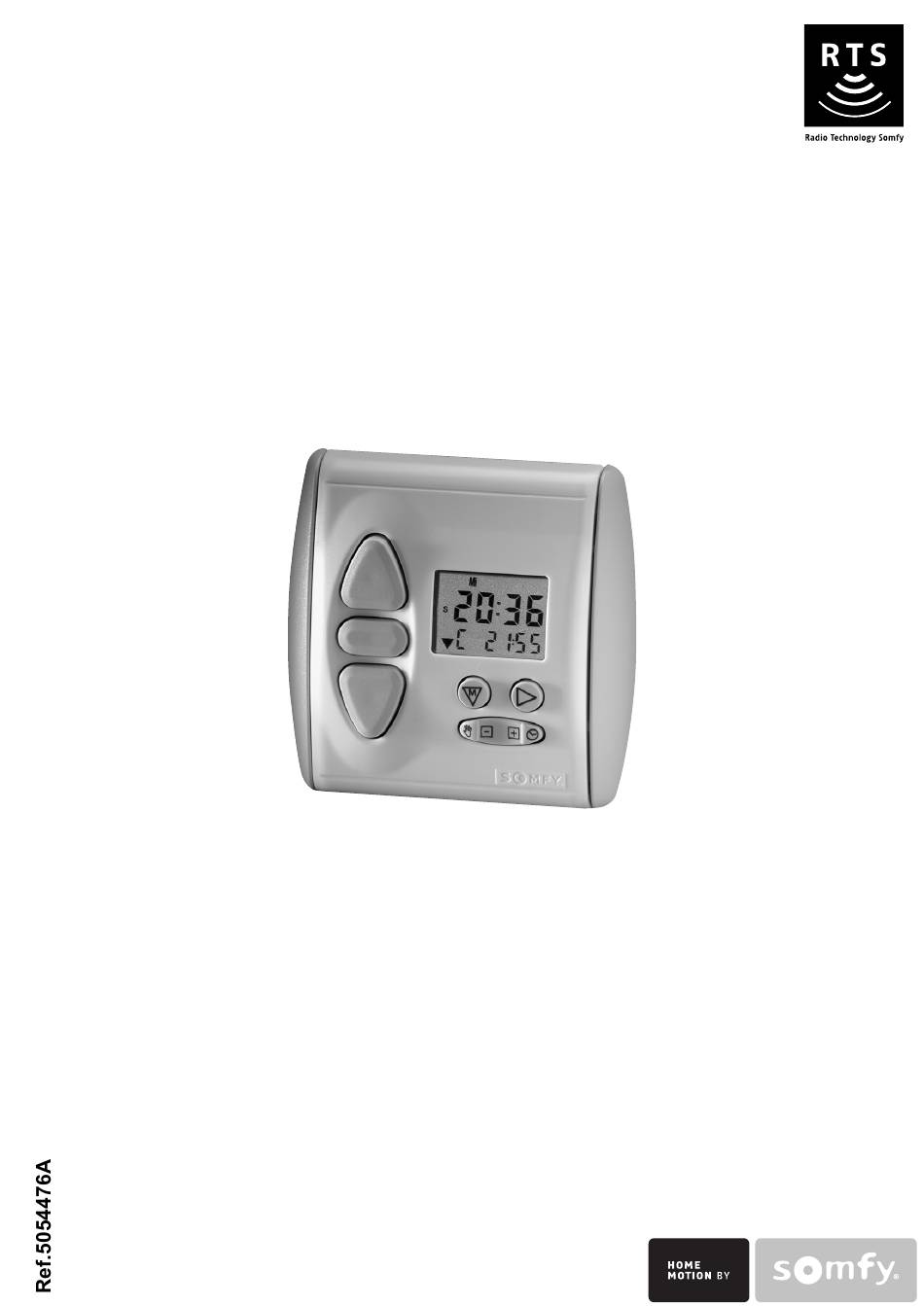

  • Page 1 Chronis Smart RTS Operating and installation guide...

  • Page 2: Table Of Contents

    Chronis Smart RTS Contents 1. Brief introduction to the Chronis Smart RTS 1.1 What is the Chronis Smart RTS for? 1.2 A few defi nitions 2. Safety - Important information 2.1 Installation and commissioning 2.2 Operating 2.3 Environment 3. Content of the kit and tools required 3.1 List of parts...

  • Page 3: Brief Introduction To The Chronis Smart Rts

    For example, the Chronis Smart RTS may open the roller shutters at 7:30 in the morning during the week and at 10:00 on a Sunday. The Chronis Smart RTS also enables automatic closing as soon as it gets dark, even if there is nobody at home.

  • Page 4: Operating

    Chronis Smart RTS 2.2 Operating Somfy recommends that at least one control point is located close to the product or group of products. Do not allow children to play with the fi xed control points. Keep remote controls out of the reach of children.

  • Page 5: The Chronis Smart Rts In Detail

    Battery: 2 X 1.5 V DC (type AAA LR03). 5. Before installing the Chronis Smart 5.1 Turning the Chronis Smart RTS on If the front cover (1) of the Chronis Smart RTS is fi tted to the timer: Gently press the up and down buttons (never press the screen) to release the timer from the front cover.

  • Page 6: Adding The Chronis Smart Rts

    6.1 Identifying the original control point 6.1.1 Installation recommendations To add a Chronis Smart RTS, use the control point linked to the product which only controls this product: pressing the Up or Down button only causes movement of the product to which the new Chronis Smart RTS must be linked.

  • Page 7: One-Touch Point

    Turn the front cover over to fi nd out the model: If there is a metal plate inscribed PROG next to the battery: model A. If there is no metal plate inscribed PROG next to the battery: model B. Copyright © 2008 Somfy SAS. All rights reserved.
  • Page 8 8 beeps) to indicate that the new Chronis Smart RTS has been stored. Press the down button on the new Chronis Smart RTS: If the product is lowered, the Chronis Smart RTS ► is operational. If the product does not move, contact the Somfy ►...

  • Page 9: Point With Up/Stop/Down Buttons

    (b). Caution! If after removing the front cover, no PROG button is found, this means that the control point is not compatible: the Chronis Smart RTS cannot be linked to the product. 6.3.2 Adding the Chronis Smart RTS Switch the mains power supply back on or reconnect the battery to the motor.

  • Page 10: Timer

    8. Mounting the Chronis Smart RTS 8.1 Before mounting the Chronis Smart Before mounting the Chronis Smart RTS, select a loca- tion for mounting and check that the Chronis Smart RTS is able to control all products to which it is linked from this location.

  • Page 11: Everyday Use Of The Chronis Smart Rts

    (Cosmic mode). 9.1.2 Mode without Program Timer In this mode, the Chronis Smart RTS is used as a control point with Up/STOP/Down buttons. Automatic control of the products is deactivated. Caution: The Chronis Smart RTS only operates in manual mode and all program timer functions are inhibited.
  • Page 12 Chronis Smart RTS 9.2.1 Deactivating/Activating the Program Timer Mode By default, the Chronis Smart RTS operates in Program Timer mode. Deactivating the Program Timer n the standard display, press the “MODE” 1432 button until “OFF” is displayed instead of the...

  • Page 13: Replacing The Batteries

    ( 21 Refer to “Problems with the Chronis Smart RTS?”. 9.4 Maintenance Clean the Chronis Smart RTS with a damp cloth using a multi-purpose household or glass cleaning product. Never immerse or soak the Chronis Smart RTS in any liquid.

  • Page 14: Customising The Programs

    10. Customising the programs 10.1 Programs available 10.1.1 Introduction to the programs To use the Chronis Smart RTS in Program Timer mode, there are different types of programs available which can be confi gured: Opening the products: at the same set time during the week - see paragraph 10.3.1, at a different set time depending on the day of the week - see paragraph 10.3.2,...

  • Page 15: Automatic Opening Time

    On the standard display, press the menu button until “CLOC” is displayed. (l 0( Press the Menu button several times to select the “Opening time” parameter: “UP” is displayed. ► Copyright © 2008 Somfy SAS. All rights reserved.
  • Page 16 “UP” display and confi rm the settings. “OFF” is displayed instead of the time. ► Press the Menu button to return to the standard display. 1432 ( 21 Copyright © 2008 Somfy SAS. All rights reserved.

  • Page 17: Automatic Closing Time

    16:30 and 21:30 depending on the date. The “Cosmic” mode only applies to a full week. (l 0( On the standard display, press the menu button until “CLOC” is displayed. Copyright © 2008 Somfy SAS. All rights reserved.
  • Page 18 It should be between -1:59 and 1:59. ► A negative value means that automatic closing ( 0i ► will take place earlier than the pre-set time in the Copyright © 2008 Somfy SAS. All rights reserved.
  • Page 19 “dn” display and confi rm the settings. The programmed time is displayed. ► “H” is displayed: closing is programmed in ► 1432 “program timer” mode. Press the Menu button to return to the standard t 21 display. Copyright © 2008 Somfy SAS. All rights reserved.
  • Page 20 The programmed time for the current day is ► displayed. 1432 “H” is displayed: closing is programmed in ► “program timer” mode. t 21 Press the Menu button to return to the standard display. Copyright © 2008 Somfy SAS. All rights reserved.
  • Page 21 “Closing time” parameter: “DN” is displayed. ► Caution: The closing time may be set following setting of the opening time. FROM the “UP” display, press the Menu button to display “dn”. t 21 Copyright © 2008 Somfy SAS. All rights reserved.

  • Page 22: Vacation Mode

    10.5 Vacation mode A vacation mode function, known as the Safety mode, is available on the Chronis Smart RTS. This function enables occupancy of the house to be simulated when the residents are out, away for the weekend or on holiday.

  • Page 23: Cancelling Customised Settings

    Chronis Smart RTS 10.6 Cancelling customised settings To fi nd the pre-set program for the Chronis Smart RTS after having customised the settings and to return to the default automatic opening and closing times: 1432 the standard display, press and hold the up...
  • Page 24 Somfy Systems Inc. Tel: +1 (0) 609 395 1300 Website: www.somfy.com/nam/index.cfm?language=en-us Somfy hereby declares that this product conforms to the essential requirements and other relevant provisions of Directive 1999/5/CE. A Declaration of Conformity is available at www.somfy.com/ce. For use in the European Union, the Swiss Confederation (Switzerland) and Norway..
