3. INSTAllATION

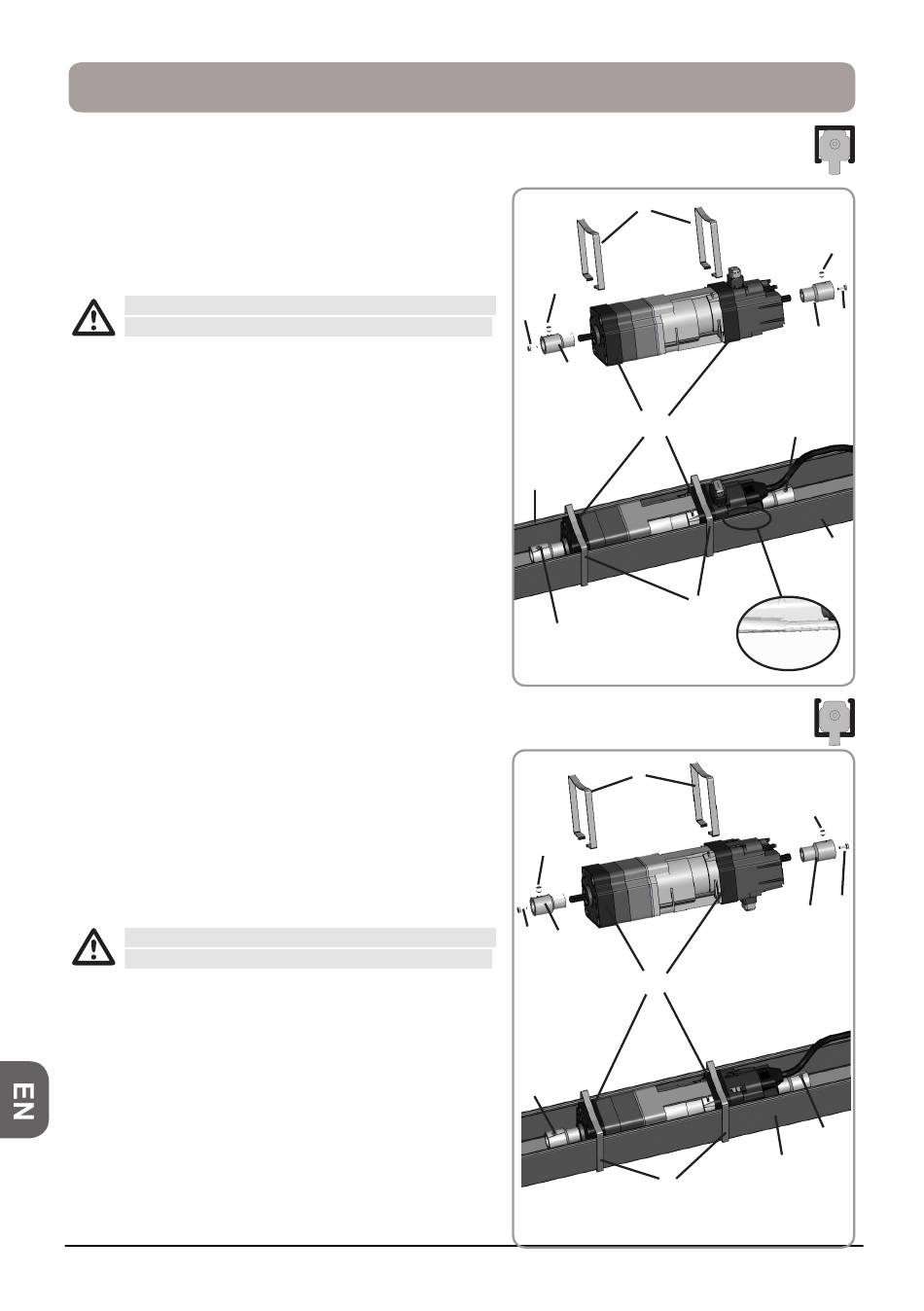

3.1 57 X 51 mm or 58 x 56 mm head rail, open below
• Screw the 2 adaptors (1) using 2 M3x8 bolts (2) on
the motor shaft.
Tightening torque = 1.1 Nm
Ensure that the J4 io plate cable does not pass
over a rotating part of the motor or mechanism.
• If necessary, compress the edge of the head rail (4)
into the motor zone.
• Insert the motor into the head rail (4).
• Using the clips (5), attach the motor in the head rail
(4) above the acoustic tapes (6a).
• The shaft can be fitted into the adapter using a head-
less screw (7).

3.2 58 x 56 mm head rail, open above

Installation with external clips
• Screw the 2 adaptors (1) using 2 M3x8 bolts (2) on
the motor shaft.
Tightening torque = 1.1 Nm
Ensure that the J4 io plate cable does not pass
over a rotating part of the motor or mechanism.
• Insert the motor into the head rail (4).
• Using the clips (5), attach the motor in the head rail
(4) above the acoustic tapes (6a).
• The shaft can be fitted into the adapter using a
headless screw (7).
58
7
2
1
4
7
7
2
1
7
© 2011 Somfy SAS. All rights reserved. 11/2011
5
6a
7
5
5
7
1
6a
4
5
7
2
1
4
2
7
