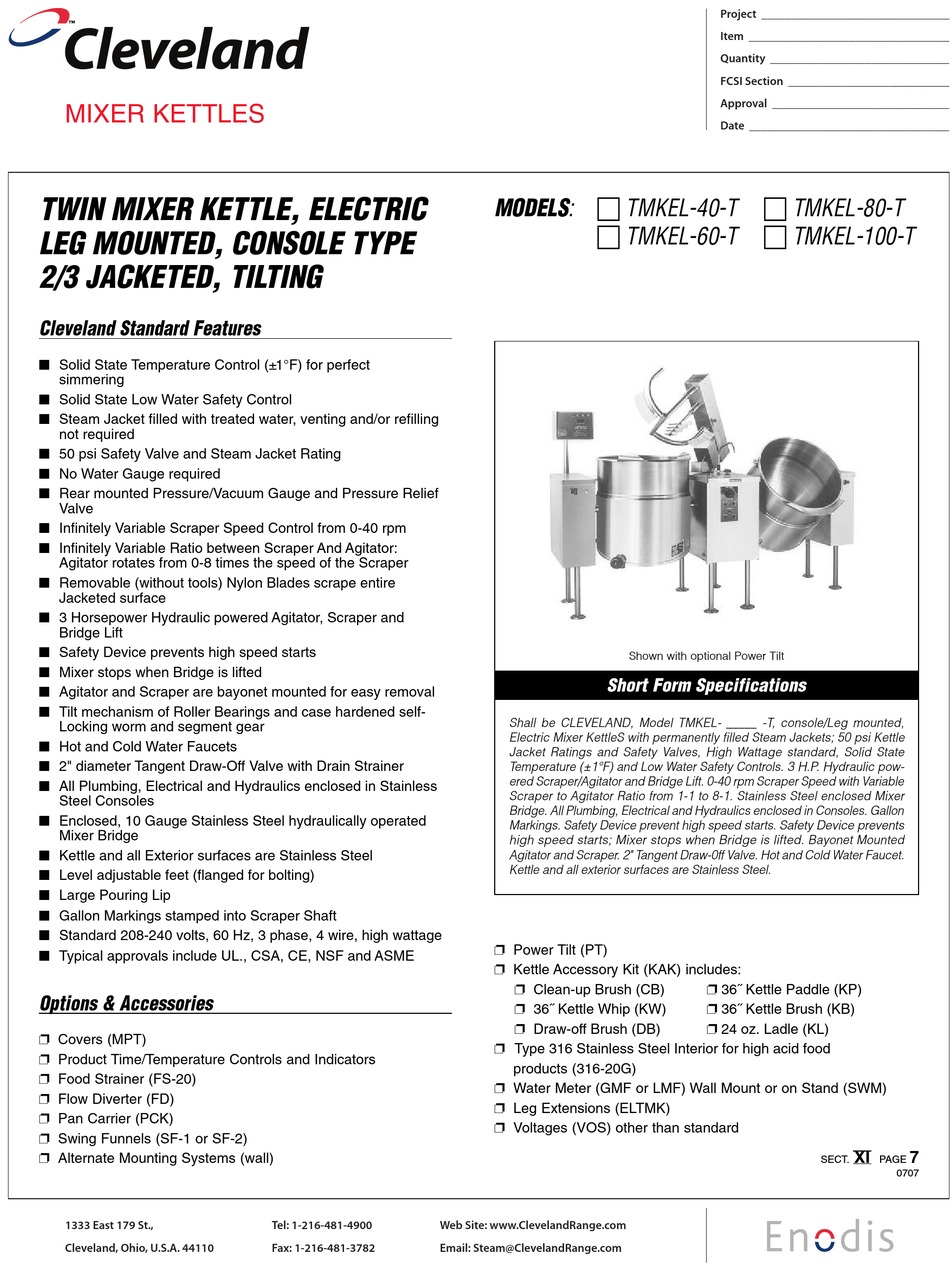

Cleveland TMKEL-100-T Specifications

™
Cleveland
MIXER KETTLES
TWIN MIXER KETTLE, ELECTRIC
LEG MOUNTED, CONSOLE TYPE
2/3 JACKETED, TILTING
Cleveland Standard Features
I Solid State Temperature Control (±1°F) for perfect
simmering
I Solid State Low Water Safety Control
I Steam Jacket filled with treated water, venting and/or refilling
not required
I 50 psi Safety Valve and Steam Jacket Rating
I No Water Gauge required
I Rear mounted Pressure/Vacuum Gauge and Pressure Relief
Valve
I Infinitely Variable Scraper Speed Control from 0-40 rpm
I Infinitely Variable Ratio between Scraper And Agitator:
Agitator rotates from 0-8 times the speed of the Scraper
I Removable (without tools) Nylon Blades scrape entire
Jacketed surface
I 3 Horsepower Hydraulic powered Agitator, Scraper and
Bridge Lift
I Safety Device prevents high speed starts
I Mixer stops when Bridge is lifted
I Agitator and Scraper are bayonet mounted for easy removal
I Tilt mechanism of Roller Bearings and case hardened self-
Locking worm and segment gear
I Hot and Cold Water Faucets
I 2" diameter Tangent Draw-Off Valve with Drain Strainer
I All Plumbing, Electrical and Hydraulics enclosed in Stainless
Steel Consoles
I Enclosed, 10 Gauge Stainless Steel hydraulically operated
Mixer Bridge
I Kettle and all Exterior surfaces are Stainless Steel
I Level adjustable feet (flanged for bolting)
I Large Pouring Lip
I Gallon Markings stamped into Scraper Shaft
I Standard 208-240 volts, 60 Hz, 3 phase, 4 wire, high wattage
I Typical approvals include UL., CSA, CE, NSF and ASME
Options & Accessories
Ë Covers (MPT)
Ë Product Time/Temperature Controls and Indicators
Ë Food Strainer (FS-20)
Ë Flow Diverter (FD)
Ë Pan Carrier (PCK)
Ë Swing Funnels (SF-1 or SF-2)
Ë Alternate Mounting Systems (wall)
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900 Web Site: www.ClevelandRange.com
Fax: 1-216-481-3782 Email: Steam@ClevelandRange.com
MODELS: TMKEL-40-T
TMKEL-60-T

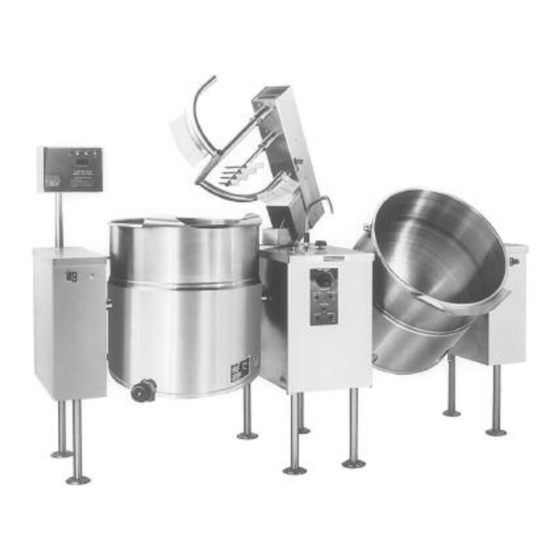

Shown with optional Power Tilt
Short Form Specifications
Shall be CLEVELAND, Model TMKEL- _____ -T, console/Leg mounted,
Electric Mixer KettleS with permanently filled Steam Jackets; 50 psi Kettle
Jacket Ratings and Safety Valves, High Wattage standard, Solid State
Temperature (±1°F) and Low Water Safety Controls. 3 H.P. Hydraulic pow-
ered Scraper/Agitator and Bridge Lift. 0-40 rpm Scraper Speed with Variable
Scraper to Agitator Ratio from 1-1 to 8-1. Stainless Steel enclosed Mixer
Bridge. All Plumbing, Electrical and Hydraulics enclosed in Consoles. Gallon
Markings. Safety Device prevent high speed starts. Safety Device prevents
high speed starts; Mixer stops when Bridge is lifted. Bayonet Mounted
Agitator and Scraper. 2" Tangent Draw-0ff Valve. Hot and Cold Water Faucet.
Kettle and all exterior surfaces are Stainless Steel.
Ë Power Tilt (PT)
Ë Kettle Accessory Kit (KAK) includes:
Ë Clean-up Brush (CB)
Ë 36˝ Kettle Whip (KW)
Ë Draw-off Brush (DB)
Ë Type 316 Stainless Steel Interior for high acid food
products (316-20G)
Ë Water Meter (GMF or LMF) Wall Mount or on Stand (SWM)
Ë Leg Extensions (ELTMK)
Ë Voltages (VOS) other than standard
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
TMKEL-80-T
TMKEL-100-T
Ë 36˝ Kettle Paddle (KP)
Ë 36˝ Kettle Brush (KB)
Ë 24 oz. Ladle (KL)
