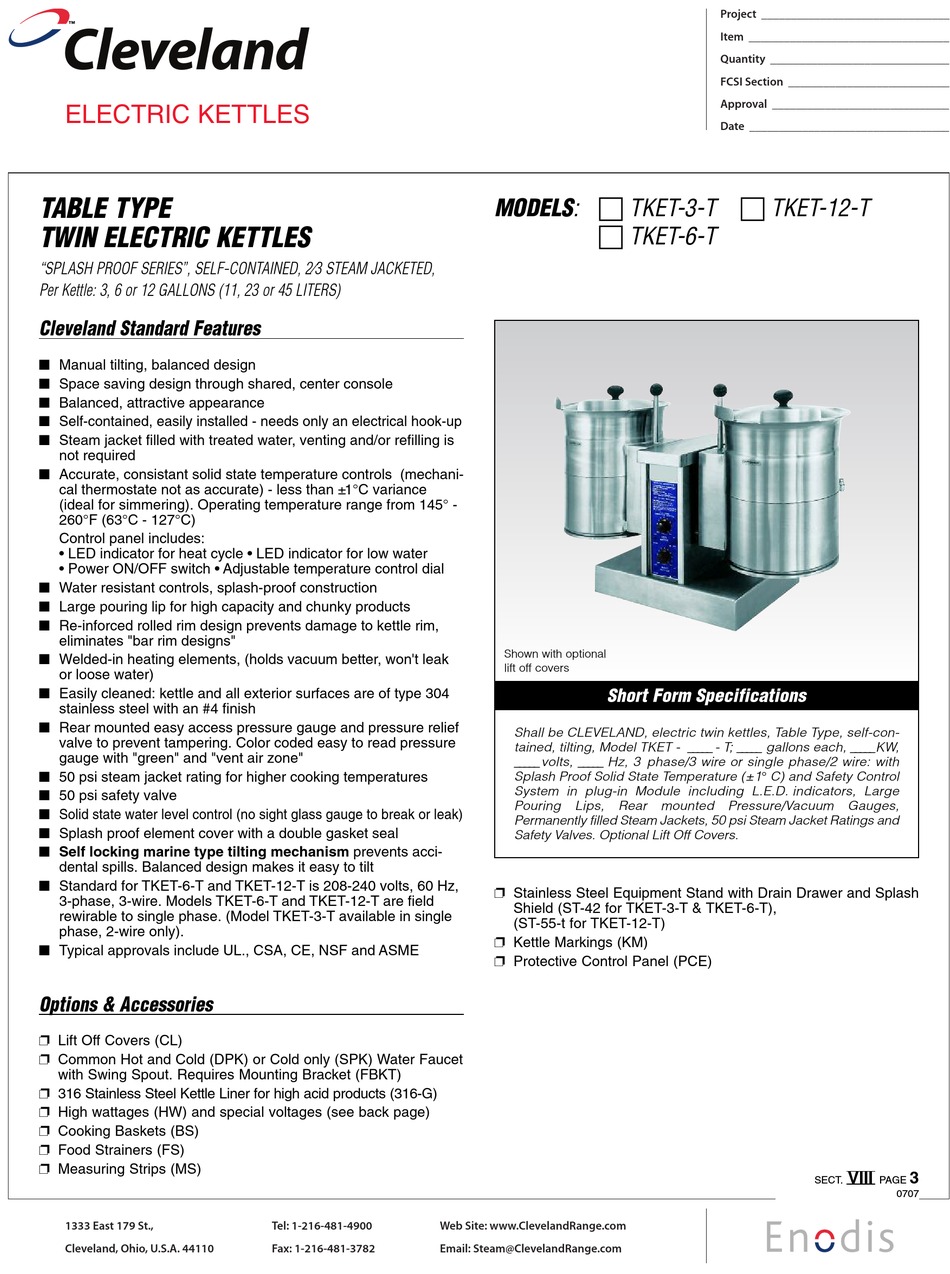

Cleveland TKET-12-T Specification Sheet

™
Cleveland
ELECTRIC KETTLES
TABLE TYPE
TWIN ELECTRIC KETTLES
"SPLASH PROOF SERIES", SELF-CONTAINED, 2⁄3 STEAM JACKETED,
Per Kettle: 3, 6 or 12 GALLONS (11, 23 or 45 LITERS)
Cleveland Standard Features
I Manual tilting, balanced design
I Space saving design through shared, center console
I Balanced, attractive appearance
I Self-contained, easily installed - needs only an electrical hook-up
I Steam jacket filled with treated water, venting and/or refilling is
not required
I Accurate, consistant solid state temperature controls (mechani-
cal thermostate not as accurate) - less than ±1°C variance
(ideal for simmering). Operating temperature range from 145° -
260°F (63°C - 127°C)
Control panel includes:
• LED indicator for heat cycle • LED indicator for low water
• Power ON/OFF switch • Adjustable temperature control dial
I Water resistant controls, splash-proof construction
I Large pouring lip for high capacity and chunky products
I Re-inforced rolled rim design prevents damage to kettle rim,
eliminates "bar rim designs"
I Welded-in heating elements, (holds vacuum better, won't leak
or loose water)
I Easily cleaned: kettle and all exterior surfaces are of type 304
stainless steel with an #4 finish
I Rear mounted easy access pressure gauge and pressure relief
valve to prevent tampering. Color coded easy to read pressure
gauge with "green" and "vent air zone"
I 50 psi steam jacket rating for higher cooking temperatures
I 50 psi safety valve
I Solid state water level control (no sight glass gauge to break or leak)
I Splash proof element cover with a double gasket seal
I Self locking marine type tilting mechanism prevents acci-
dental spills. Balanced design makes it easy to tilt
I Standard for TKET-6-T and TKET-12-T is 208-240 volts, 60 Hz,
3-phase, 3-wire. Models TKET-6-T and TKET-12-T are field
rewirable to single phase. (Model TKET-3-T available in single
phase, 2-wire only).
I Typical approvals include UL., CSA, CE, NSF and ASME
Options & Accessories
Ë Lift Off Covers (CL)
Ë Common Hot and Cold (DPK) or Cold only (SPK) Water Faucet
with Swing Spout. Requires Mounting Bracket (FBKT)
Ë 316 Stainless Steel Kettle Liner for high acid products (316-G)
Ë High wattages (HW) and special voltages (see back page)
Ë Cooking Baskets (BS)
Ë Food Strainers (FS)
Ë Measuring Strips (MS)
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900 Web Site: www.ClevelandRange.com
Fax: 1-216-481-3782 Email: Steam@ClevelandRange.com
MODELS: TKET-3-T
TKET-6-T

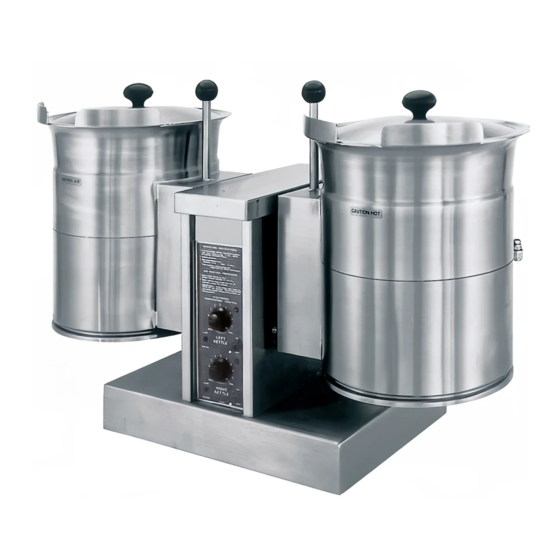

Shown with optional
lift off covers
Short Form Specifications
Shall be CLEVELAND, electric twin kettles, Table Type, self-con-
tained, tilting, Model TKET - _____ - T; _____ gallons each, _____ KW,
_____ volts, _____ Hz, 3 phase/3 wire or single phase/2 wire: with
Splash Proof Solid State Temperature (±1° C) and Safety Control
System in plug-in Module including L.E.D. indicators, Large
Pouring Lips, Rear mounted
Permanently filled Steam Jackets, 50 psi Steam Jacket Ratings and
Safety Valves. Optional Lift Off Covers.
Ë Stainless Steel Equipment Stand with Drain Drawer and Splash
Shield (ST-42 for TKET-3-T & TKET-6-T),
(ST-55-t for TKET-12-T)
Ë Kettle Markings (KM)
Ë Protective Control Panel (PCE)
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
TKET-12-T
Pressure/Vacuum Gauges,
VIII
SECT. PAGE
0707
3
