Cleveland KDP-25-T Specifications

Cleveland KDP-25-T Specifications

Pedestal, direct steam tilting, 2/3 steam jacketed 25, 40 or 60 gallons (100, 150 or 225 liters)

Advertisement

Quick Links

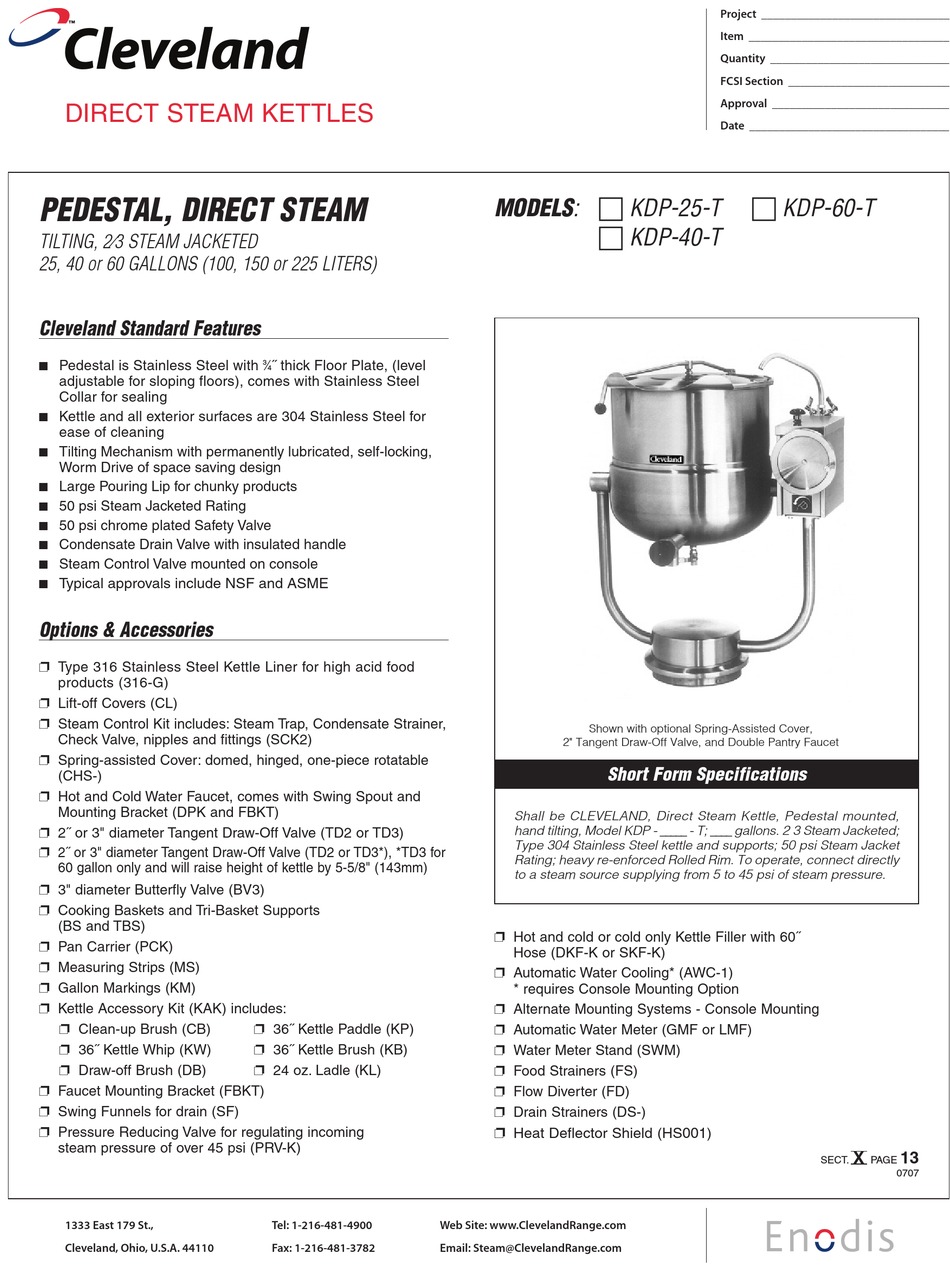

Cleveland
DIRECT STEAM KETTLES
PEDESTAL, DIRECT STEAM
TILTING, 2⁄3 STEAM JACKETED
25, 40 or 60 GALLONS (100, 150 or 225 LITERS)
Cleveland Standard Features
I
Pedestal is Stainless Steel with
adjustable for sloping floors), comes with Stainless Steel
Collar for sealing
I
Kettle and all exterior surfaces are 304 Stainless Steel for
ease of cleaning
I
Tilting Mechanism with permanently lubricated, self-locking,
Worm Drive of space saving design
I
Large Pouring Lip for chunky products
I
50 psi Steam Jacketed Rating
I
50 psi chrome plated Safety Valve
I
Condensate Drain Valve with insulated handle
I
Steam Control Valve mounted on console
I
Typical approvals include NSF and ASME
Options & Accessories
Ë Type 316 Stainless Steel Kettle Liner for high acid food
products (316-G)
Ë Lift-off Covers (CL)
Ë Steam Control Kit includes: Steam Trap, Condensate Strainer,
Check Valve, nipples and fittings (SCK2)
Ë Spring-assisted Cover: domed, hinged, one-piece rotatable
(CHS-)
Ë Hot and Cold Water Faucet, comes with Swing Spout and
Mounting Bracket (DPK and FBKT)
Ë 2˝ or 3" diameter Tangent Draw-Off Valve (TD2 or TD3)
Ë 2˝ or 3" diameter Tangent Draw-Off Valve (TD2 or TD3*), *TD3 for
60 gallon only and will raise height of kettle by 5-5/8" (143mm)
Ë 3" diameter Butterfly Valve (BV3)
Ë Cooking Baskets and Tri-Basket Supports
(BS and TBS)
Ë Pan Carrier (PCK)
Ë Measuring Strips (MS)
Ë Gallon Markings (KM)
Ë Kettle Accessory Kit (KAK) includes:
Ë Clean-up Brush (CB)
Ë 36˝ Kettle Whip (KW)
Ë Draw-off Brush (DB)
Ë Faucet Mounting Bracket (FBKT)
Ë Swing Funnels for drain (SF)
Ë Pressure Reducing Valve for regulating incoming
steam pressure of over 45 psi (PRV-K)
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
3
˝ thick Floor Plate, (level
4
Ë 36˝ Kettle Paddle (KP)
Ë 36˝ Kettle Brush (KB)
Ë 24 oz. Ladle (KL)
Tel: 1-216-481-4900
Fax: 1-216-481-3782
MODELS:

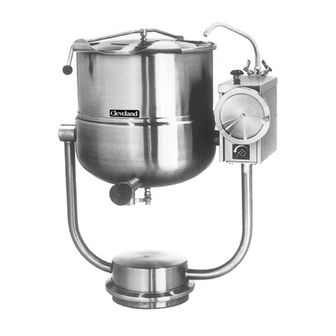

Shown with optional Spring-Assisted Cover,
2" Tangent Draw-Off Valve, and Double Pantry Faucet
Short Form Specifications
Shall be CLEVELAND, Direct Steam Kettle, Pedestal mounted,
hand tilting, Model KDP - _____ - T; ____ gallons. 2 3 Steam Jacketed;
Type 304 Stainless Steel kettle and supports; 50 psi Steam Jacket
Rating; heavy re-enforced Rolled Rim. To operate, connect directly
to a steam source supplying from 5 to 45 psi of steam pressure.
Ë Hot and cold or cold only Kettle Filler with 60˝
Hose (DKF-K or SKF-K)
Ë Automatic Water Cooling* (AWC-1)
* requires Console Mounting Option
Ë Alternate Mounting Systems - Console Mounting
Ë Automatic Water Meter (GMF or LMF)
Ë Water Meter Stand (SWM)
Ë Food Strainers (FS)
Ë Flow Diverter (FD)
Ë Drain Strainers (DS-)
Ë Heat Deflector Shield (HS001)
Web Site: www.ClevelandRange.com
Email: Steam@ClevelandRange.com
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
KDP-25-T
KDP-60-T
KDP-40-T
X
13
SECT.
PAGE
0707
