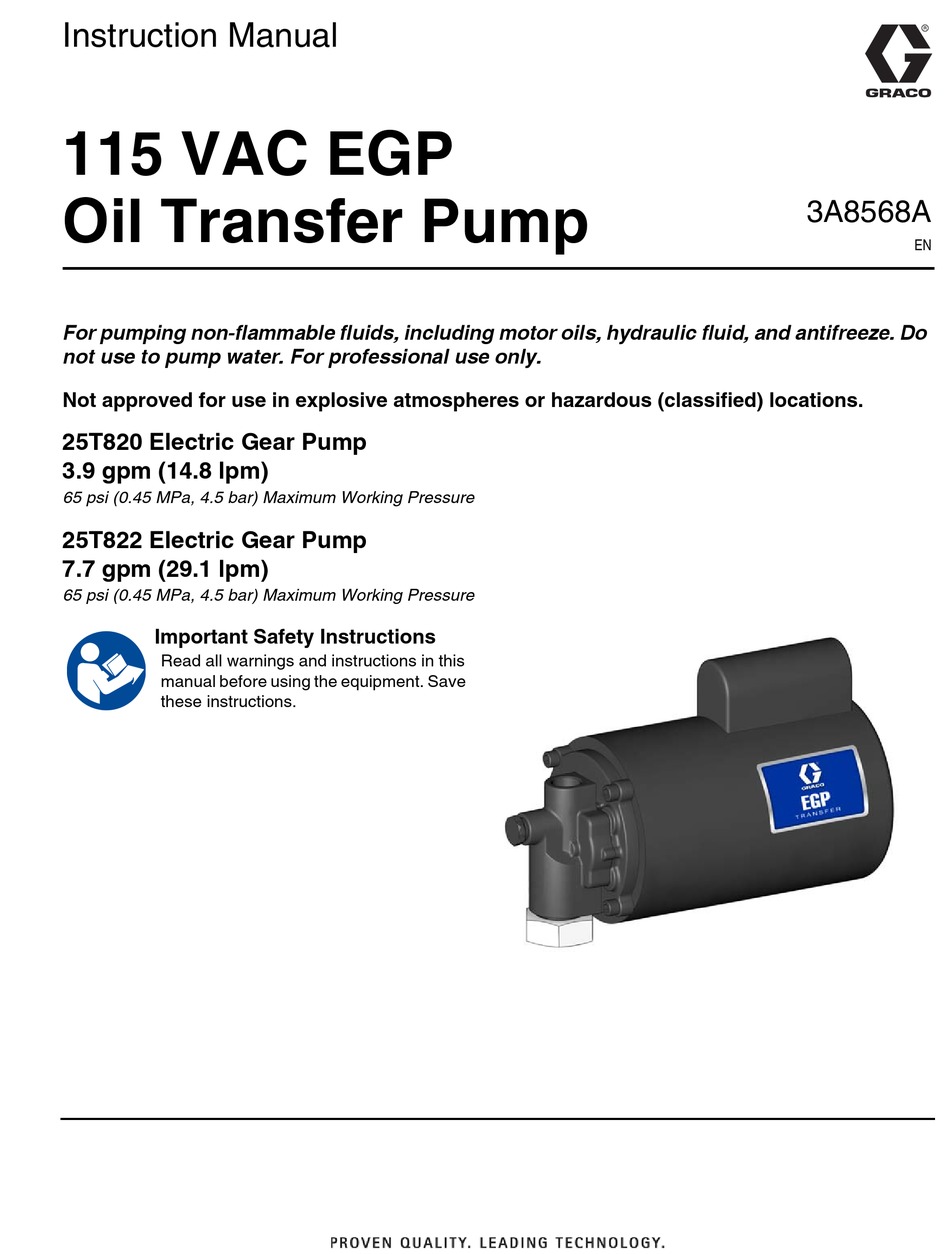

Instruction Manual
115 VAC EGP
Oil Transfer Pump
For pumping non-flammable fluids, including motor oils, hydraulic fluid, and antifreeze. Do
not use to pump water. For professional use only.
Not approved for use in explosive atmospheres or hazardous (classified) locations.
25T820 Electric Gear Pump
3.9 gpm (14.8 lpm)
65 psi (0.45 MPa, 4.5 bar) Maximum Working Pressure
25T822 Electric Gear Pump
7.7 gpm (29.1 lpm)
65 psi (0.45 MPa, 4.5 bar) Maximum Working Pressure
Important Safety Instructions
Read all warnings and instructions in this
manual before using the equipment. Save
these instructions.
3A8568A
EN
Advertisement
Table of Contents
Related Manuals for Graco 115 VAC EGP
Summary of Contents for Graco 115 VAC EGP
- Page 1 Instruction Manual 115 VAC EGP Oil Transfer Pump 3A8568A For pumping non-flammable fluids, including motor oils, hydraulic fluid, and antifreeze. Do not use to pump water. For professional use only. Not approved for use in explosive atmospheres or hazardous (classified) locations.
-
Page 2: Table Of Contents
California Proposition 65 ....19 Graco Standard Warranty ....20... -
Page 3: Warnings
Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this manual where applicable. - Page 4 Warnings WARNING EQUIPMENT MISUSE HAZARD Misuse can cause death or serious injury. • Do not operate the unit when fatigued or under the influence of drugs or alcohol. • Do not exceed the maximum working pressure or temperature rating of the lowest rated system component.
-
Page 5: Typical Installation
Typical Installation Typical Installation . 1: Typical Installation 3A8568A... -
Page 6: Installation
Installation Installation Grounding 3. Apply pipe sealant to the threaded end of the suction tube, then screw the tube into the pump inlet port, making sure that the tube is tight. The equipment must be grounded to reduce the risk 4. -
Page 7: Operation
Operation Operation Pressure Relief Procedure Thermal Overload The motor has a thermal overload switch that shuts the Follow the Pressure Relief Procedure whenever motor down when overheated. If the unit overheats, you see this symbol. allow approximately 45 minutes for the unit to cool. Once the unit has cooled down, the switch will close and the unit will restart. -
Page 8: Recycling And Disposal
Recycling and Disposal Recycling and Disposal End of Product Life At the end of the product’s useful life, dismantle and recycle it in a responsible manner. • Perform the Pressure Relief Procedure. • Drain and dispose of fluids according to applicable regulations. -
Page 9: Troubleshooting
Troubleshooting Troubleshooting 1. Follow Operation, page 7, before checking or repairing the equipment. 2. Check all possible problems and causes before disassembling the equipment. Problem Cause Solution Motor is running, but the pump There is dirt under the pressure relief Remove the pressure relief valve and will not prime. - Page 10 Troubleshooting Problem Cause Solution The unit pumps, but the output The inlet suction screen is clogged Remove the inlet suction screen flow is low. (used oil). using a 3/4 in. (19 mm) hex wrench. Clean or replace the inlet suction screen.
- Page 11 Troubleshooting Problem Cause Solution The switch does not turn the The fuse or circuit breaker is blown. Check the electrical supply. pump on. There is an electrical problem. Check that proper supply voltage is getting to the pump. There is a defective switch. Replace with a new pump.
-
Page 12: Parts
Parts Parts Torque value 20 ft.-lb (27.1 N•m) Torque value 30 ft.-lb (40.7 N•m) 3A8568A... - Page 13 Parts Ref. Part No. Description Qty. 1 Pump body 2 Adapter, pump motor 3 Gear, pump 4 Seal, shaft 5 O-ring 6 Screw, 3/8 - 16 socket head, cap 7 Ball, relief valve 8 PIN, dowel, steel 3/8 x 3/4 Motor, 115 VAC 10...
-
Page 14: Kits And Accessories
Kits and Accessories Kits and Accessories Part Number Description 133412 Wall mounting kit 260238 Y strainer 260124 Suction tube with inlet check assembly 133376 Dispense kit 3A8568A... - Page 15 Kits and Accessories Part Number Description 133372 Pump housing assembly 230/115 V Transfer Pump 133377 Suction filter 133375 Suction kit 3A8568A...
-
Page 16: Pump Performance Chart
Pump Performance Chart Pump Performance Chart 3A8568A... -
Page 17: Dimensions
Dimensions Dimensions Length (A) Height (B) Width (C) Models Inches Inches Inches 25T820 14.0 356.0 165.0 25T822 14.0 356.0 165.0 3A8568A... -
Page 18: Technical Specifications
Technical Specifications Technical Specifications 115 VAC Electric Gear Pump Metric Maximum working pressure 65 psi 0.45 MPa, 4.5 bar Automatic Relief Setting 65 psi 0.45 MPa, 4.5 bar Output Flow at 0 psi (0 MPa, 0 bar), see Pump Performance Chart, page 16 25T820 3.9 gpm 14.8 L/min... -
Page 19: California Proposition 65
California Proposition 65 California Proposition 65 CALIFORNIA RESIDENTS WARNING: Cancer and reproductive harm – www.P65warnings.ca.gov. 3A8568A... -
Page 20: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
