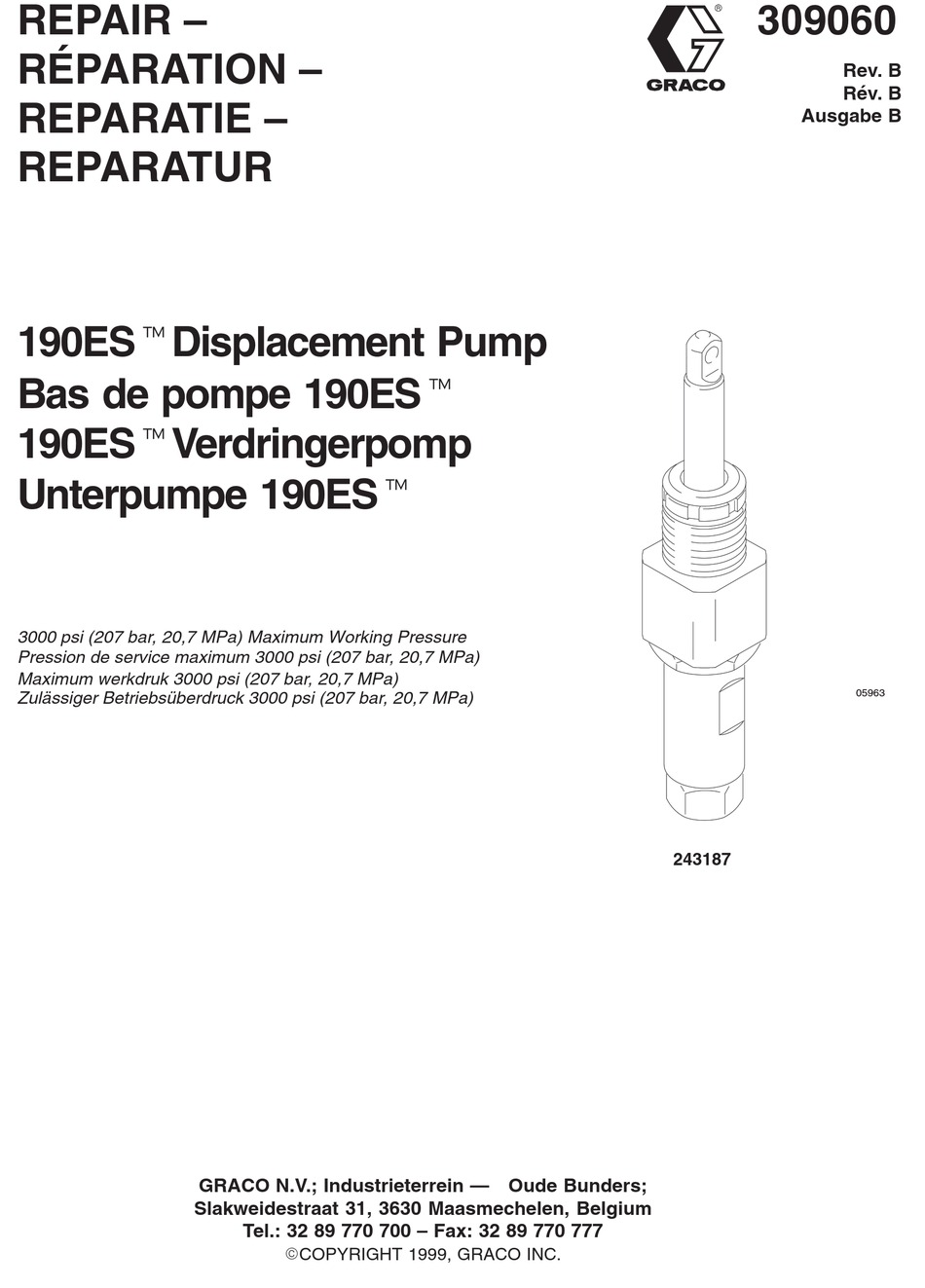

REPAIR –
RÉPARATION –
REPARATIE –
REPARATUR

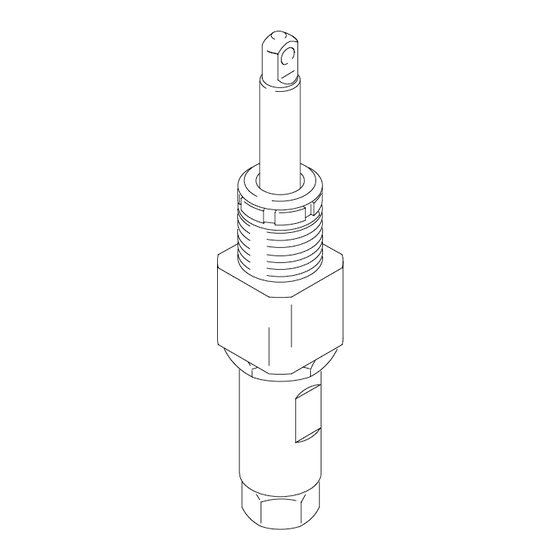

190EStDisplacement Pump
Bas de pompe 190ESt
190EStVerdringerpomp
Unterpumpe 190ESt
3000 psi (207 bar, 20,7 MPa) Maximum Working Pressure
Pression de service maximum 3000 psi (207 bar, 20,7 MPa)
Maximum werkdruk 3000 psi (207 bar, 20,7 MPa)
Zulässiger Betriebsüberdruck 3000 psi (207 bar, 20,7 MPa)
GRACO N.V.; Industrieterrein — Oude Bunders;
Slakweidestraat 31, 3630 Maasmechelen, Belgium
Tel.: 32 89 770 700 – Fax: 32 89 770 777
ECOPYRIGHT 1999, GRACO INC.
309060
Rev. B
Rév. B
Ausgabe B
05963
243187

Advertisement

loading

Related Manuals for Graco 190ES

Summary of Contents for Graco 190ES

  • Page 1 Maximum werkdruk 3000 psi (207 bar, 20,7 MPa) 05963 Zulässiger Betriebsüberdruck 3000 psi (207 bar, 20,7 MPa) 243187 GRACO N.V.; Industrieterrein — Oude Bunders; Slakweidestraat 31, 3630 Maasmechelen, Belgium Tel.: 32 89 770 700 – Fax: 32 89 770 777 ECOPYRIGHT 1999, GRACO INC.
  • Page 2 WARNING MISE EN GARDE Fire and explosion hazard: Solvent and paint fumes can ignite or Risques d’incendie et d’explosion: les vapeurs de solvant et de peinture explode. peuvent s’enflammer ou causer une explosion. To help prevent a fire and explosion: Pour empêcher tout incendie et explosion: DUse in an extremely well ventilated area.
  • Page 3 PRESSURE RELIEF / DÉCOMPRESSION / DRUKONTLASTING / DRUCKENTLASTUNG Follow 1–5 when you stop spraying. Effectuer les opérations 1–5 lors d’un arrêt de la pulvérisation. Voer de stappen 1–5 uit wanneer u stopt met spuiten. Schritte 1–5 ausführen, wenn die Spritzarbeiten beendet werden. DISASSEMBLE / DÉMONTAGE / DEMONTEREN / AUSEINANDERBAUEN URE RELIEF / ONTLASTEN VAN DE DRUK / DÉCOMPRESSION / KENTLASTUNG...
  • Page 4 DISASSEMBLE / DÉMONTAGE / DEMONTEREN / AUSEINANDERBAUEN Discard Rebuter Weggooien Wegwerfen ASSEMBLE / MONTAGE / MONTEREN / ZUSAMMENBAUEN 2 drops of LockTite 0,45–0,68 N.m 2 gouttes de LockTite (4–6 in-lb) Neuf 2 druppels LockTite Nieuw 2 Tropfen LockTite 25–30 ft-lb (34–41N.m) Soak leather packings in SAE 30W oil for 1 hour 7575A...
  • Page 5 ASSEMBLE / MONTER / MONTEREN / MONTIEREN Grease Grease Top 2 in. Install Graisser Graisser le haut sur 2 in. loosely Invetten Vet de bovenste 5 cm in Einfetten Oberen Bereich 2 Zoll einfetten Monter sans serrer Losjes aanbrengen Locker einbauen Screw in packing nut until it stops against Storage / Entreposage /...
  • Page 6 Parts / Pièces / Onderdelen / Teile Model 243187, Series A / Modèle 243187, série A / Model 243187, serie A / Modell 243187, Serie A Includes items 101 to 126 / Comprenant les rep. 101 à 126 / Enthält die Teile 101 bis 126 Ref.No.

  • Page 7: Graco Standard Warranty

    Graco’s written recommendations. This warranty does not cover, and Graco shall not be liable for general wear and tear, or any malfunction, damage or wear caused by faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or sub- stitution of non-Graco component parts.
  • Page 8 Sie die Nummer 1–888–541–9788, um zu erfahren, wo sich der nächstgelegene Händler befindet. All written and visual data contained in this document reflects the latest product information available at the time of publication. Graco reserves the right to make changes at any time without notice.
