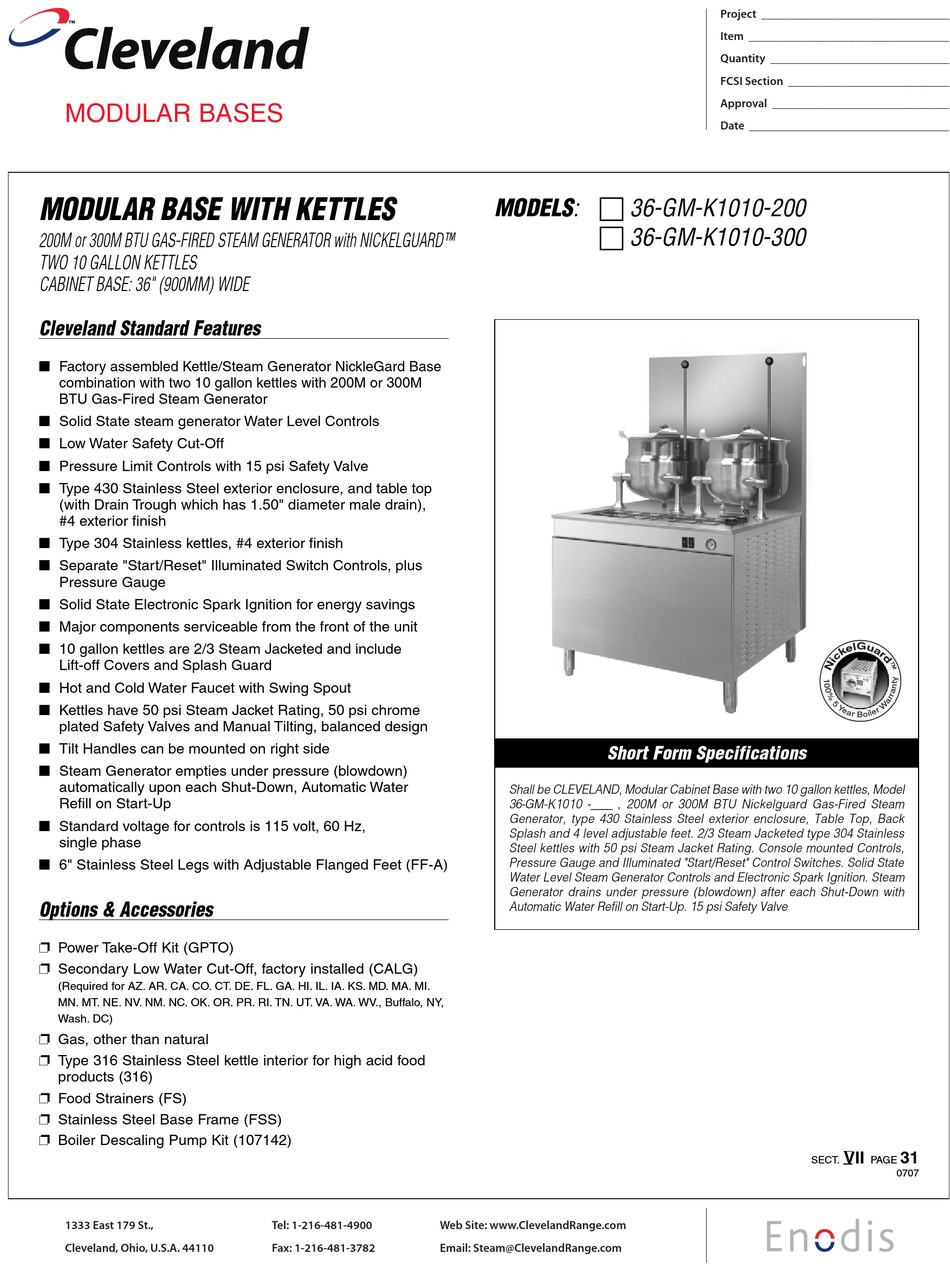

Cleveland 36-GM-K1010-200 Specifications

™
Cleveland
MODULAR BASES

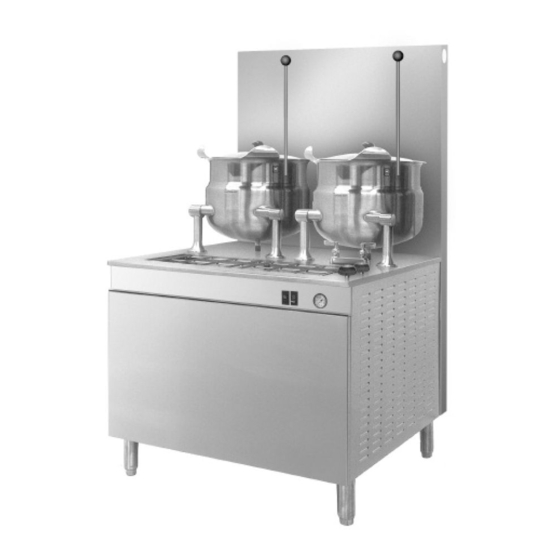

MODULAR BASE WITH KETTLES
200M or 300M BTU GAS-FIRED STEAM GENERATOR with NICKELGUARD™
TWO 10 GALLON KETTLES
CABINET BASE: 36" (900MM) WIDE
Cleveland Standard Features
I Factory assembled Kettle/Steam Generator NickleGard Base
combination with two 10 gallon kettles with 200M or 300M
BTU Gas-Fired Steam Generator
I Solid State steam generator Water Level Controls
I Low Water Safety Cut-Off
I Pressure Limit Controls with 15 psi Safety Valve
I Type 430 Stainless Steel exterior enclosure, and table top
(with Drain Trough which has 1.50" diameter male drain),
#4 exterior finish
I Type 304 Stainless kettles, #4 exterior finish
I Separate "Start/Reset" Illuminated Switch Controls, plus
Pressure Gauge
I Solid State Electronic Spark Ignition for energy savings
I Major components serviceable from the front of the unit
I 10 gallon kettles are 2/3 Steam Jacketed and include
Lift-off Covers and Splash Guard
I Hot and Cold Water Faucet with Swing Spout
I Kettles have 50 psi Steam Jacket Rating, 50 psi chrome
plated Safety Valves and Manual Tilting, balanced design
I Tilt Handles can be mounted on right side
I Steam Generator empties under pressure (blowdown)
automatically upon each Shut-Down, Automatic Water
Refill on Start-Up
I Standard voltage for controls is 115 volt, 60 Hz,
single phase
I 6" Stainless Steel Legs with Adjustable Flanged Feet (FF-A)
Options & Accessories
Ë Power Take-Off Kit (GPTO)
Ë Secondary Low Water Cut-Off, factory installed (CALG)
(Required for AZ. AR. CA. CO. CT. DE. FL. GA. HI. IL. IA. KS. MD. MA. MI.
MN. MT. NE. NV. NM. NC. OK. OR. PR. RI. TN. UT. VA. WA. WV., Buffalo, NY,
Wash. DC)
Ë Gas, other than natural
Ë Type 316 Stainless Steel kettle interior for high acid food
products (316)
Ë Food Strainers (FS)
Ë Stainless Steel Base Frame (FSS)
Ë Boiler Descaling Pump Kit (107142)
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900 Web Site: www.ClevelandRange.com
Fax: 1-216-481-3782 Email: Steam@ClevelandRange.com
MODELS: 36-GM-K1010-200
36-GM-K1010-300
Short Form Specifications
Shall be CLEVELAND, Modular Cabinet Base with two 10 gallon kettles, Model
36-GM-K1010 -____ , 200M or 300M BTU Nickelguard Gas-Fired Steam
Generator, type 430 Stainless Steel exterior enclosure, Table Top, Back
Splash and 4 level adjustable feet. 2/3 Steam Jacketed type 304 Stainless
Steel kettles with 50 psi Steam Jacket Rating. Console mounted Controls,
Pressure Gauge and Illuminated "Start/Reset" Control Switches. Solid State
Water Level Steam Generator Controls and Electronic Spark Ignition. Steam
Generator drains under pressure (blowdown) after each Shut-Down with
Automatic Water Refill on Start-Up. 15 psi Safety Valve
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
VII 31
SECT. PAGE
0707
