Cleveland MKDT-12-T Operator's Manual

Direct steam table top mixers
Hide thumbs Also See for MKDT-12-T:
Table of Contents

Advertisement

Quick Links

Download this manual

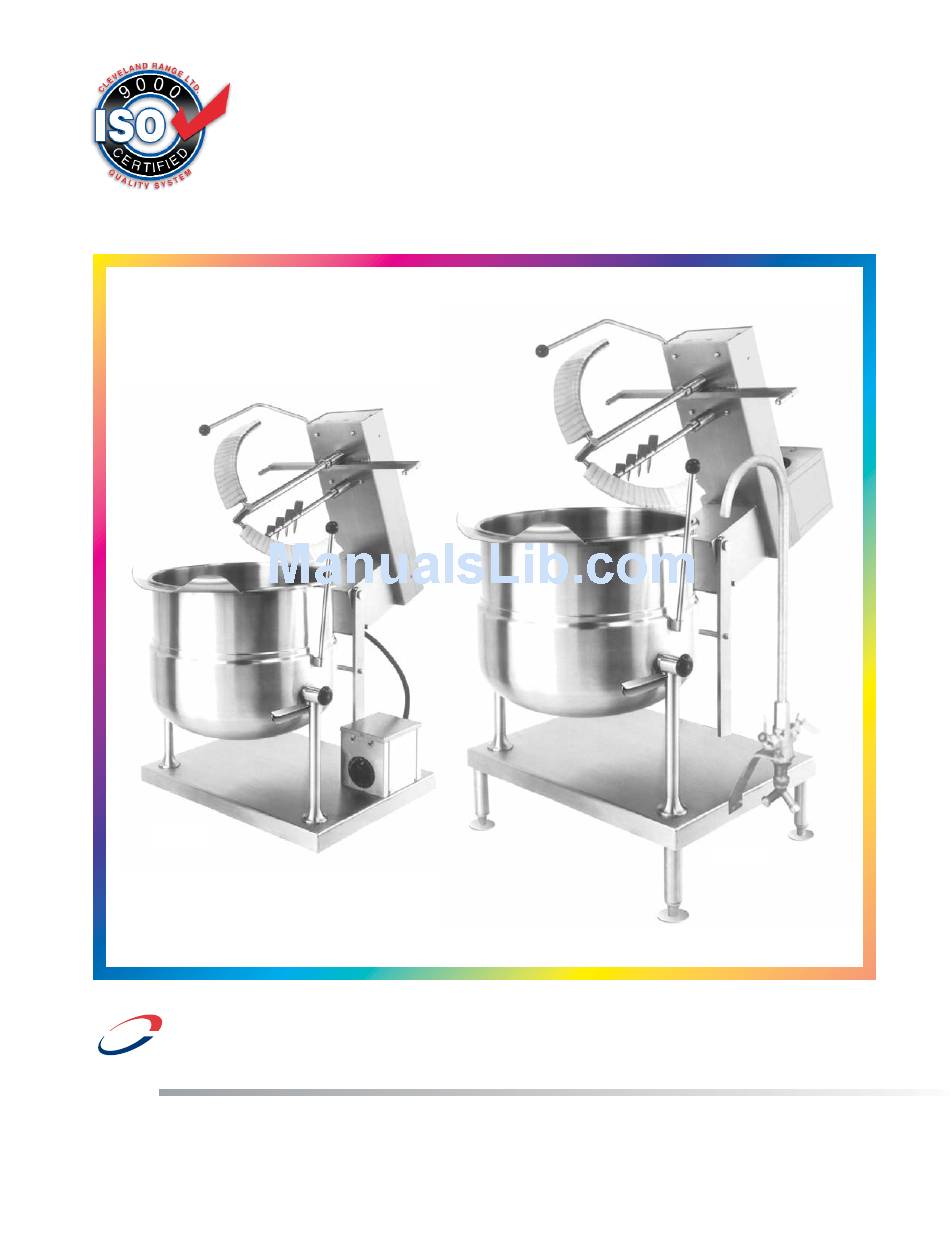

Operators Manual
Direct Steam Table Top Mixers
MODELS:
MKDT-12-T, MKDT-20-T
MKDT-12-T
™
Cleveland
Enodis
Installation, Operation & Service
1333 East 179th St., Cleveland, Ohio, U.S.A. 44110
Phone: (216) 481-4900 Fax: (216) 481-3782
Visit our web site at www.clevelandrange.com
MKDT-20-T
SE95016 Rev. 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MKDT-12-T and is the answer not in the manual?

Questions and answers

Related Manuals for Cleveland MKDT-12-T

Summary of Contents for Cleveland MKDT-12-T

  • Page 1 Installation, Operation & Service Direct Steam Table Top Mixers MODELS: MKDT-12-T, MKDT-20-T MKDT-12-T MKDT-20-T ™ Cleveland 1333 East 179th St., Cleveland, Ohio, U.S.A. 44110 Phone: (216) 481-4900 Fax: (216) 481-3782 Enodis Visit our web site at www.clevelandrange.com SE95016 Rev. 4...

  • Page 2: For Your Safety

    For your safety DANGER Keep clear of pressure Keep hands away from relief discharge. moving parts and pinch points. IMPORTANT Do not fill kettle above Inspect unit daily for recommended level proper operation. marked on outside of kettle. CAUTION Surfaces may be Wear protective equipment extremely hot! Use when discharging hot product.

  • Page 3: Installation

    UL, NSF, SURFACES: ASME/Ntl.Bd., CSA, ETL, CE, and others. Many local codes exist, and it is the responsibility of the RIGHT LEFT BACK owner/installer to comply with these codes. MKDT-12-T 0" 0" see below MKDT-20-T 0" 0"...
  • Page 4 ASSEMBLY RECOMMENDED PIPING SCHEMATICS 12 Gallon Models (all service connections shown supplied by others) 14.50" 2.25" 368mm 57mm 1.25" 32mm 5/16" - 18 10" THREADED 254mm BUSHINGS 19.00" 483mm 1.63" CONDENSATE STEAM 41mm RETURN MANUAL STEAM VALVE 19.50" 2.19" 495mm 56mm 23.88"...

  • Page 5: Potable Water

    ELECTRICAL INSTALLATION CHECKS ENSURE THE ELECTRICAL SUPPLY MATCHES Although the kettle has been thoroughly tested THE KETTLE'S REQUIREMENTS AS STATED before leaving the factory, the installer is responsible ON THE RATING LABEL. for ensuring the proper operation of kettle once installed.

  • Page 6: Operating Instructions

    OPERATING INSTRUCTIONS General Parts Drawing ITEM # DESCRIPTION FUNCTION On-Off Toggle Switch Controls electrical power to unit. Mixer Start Switch Starts mixing action. Agitator Speed Control Knob This control allows the operator to select agitator speed increments from Min. to Max. Kettle Tilt Handle Used for tilting the kettle.

  • Page 7: Mixer Operation

    CLEVELAND STEAM COOKING EQUIPMENT IS INTENDED FOR COMMERCIAL USE ONLY BY PROFESSIONALLY TRAINED PERSONNEL. FOR KETTLE/STEAMER COMBINATIONS: KETTLE OPERATION If the boiler in a steamer is supplying steam to a 1. Ensure that there is an adequate steam kettle, always heat the kettle first. After the kettle supply to the kettle.

  • Page 8: Cleaning Instructions

    CLEANING INSTRUCTIONS CLEANING INSTRUCTIONS CAUTION 1. Turn unit off. SURFACES MAY 2. Remove drain screen (if applicable). Thoroughly BE EXTREMELY HOT! wash and rinse the screen either in a sink or a dishwasher. CARE AND CLEANING 3. Prepare a warm water and mild detergent solution in the unit.

  • Page 9: Stainless Steel Equipment Care And Cleaning

    STAINLESS STEEL EQUIPMENT CARE AND CLEANING (Suppied courtesy of Nafem. For more information visit their web site at www.nafem.org) Contrary to popular belief, stainless steels ARE susceptible to rusting. 4. Treat your water. Corrosion on metals is everywhere. It is recognized quickly on iron and Though this is not always practical, softening hard water can do much steel as unsightly yellow/orange rust.

  • Page 10: Service Parts

    SERVICE PARTS WARRANTY Our Company supports a worldwide network of Maintenance and Repair Centers. Contact your nearest Maintenance and Repair Centre for replacement parts, service, or information regarding the proper maintenance and repair of your cooking equipment In order to preserve the various agency safety certification (UL, NSF, ASME/Ntl. Bd., etc.), only factory- supplied replacement parts should be used.

  • Page 11: Control Housing

    CONTROL HOUSING ITEM NO. PART NO. DESCRIPTION QTY. KE51955 Switch, Toggle, Momentary ........1 KE50504 Switch, Toggle, SPST .
  • Page 12 STEAM CONTROL ASSEMBLY...
  • Page 13 STEAM CONTROL ASSEMBLY ITEM NO. PART NO. DESCRIPTION QTY. FA11056 Binding Head Screw, 6-32 x 1/2" lg........4 KE50458 End Cap, condensate return .

  • Page 14: Bridge Assembly

    BRIDGE ASSEMBLY...
  • Page 15 Conduit (MKDT-12-T) ........1...
  • Page 16 GEAR BOX NOTE: Insert bolts in opposite holes for taper lock bushing removal.
  • Page 17 Spacer (MKDT-12-T) ........

  • Page 18: Maintenance

    MAINTENANCE ALL SERVICE MUST BE PERFORMED BY A QUALIFIED SERVICE TECHNICIAN. This kettle requires very little preventative maintenance other than daily cleaning. The pressure relief valve must be tested twice a year. PRESSURE RELIEF VALVE MARINE LOCK TESTING PROCEDURE Inspect lock at least twice yearly. 1.

  • Page 19: Troubleshooting Guide

    TROUBLESHOOTING GUIDE This section contains information intended for use by Authorized Service Personnel only. PROBLEM A/ Kettle heats too slowly or does not come to a boil. Probable Cause Remedy 1. Inadequate steam flow. Check for correct steam using chart below. If kettle is connected to a steamer and powered by a generator the units should be operated sequentially (kettle boiling first, then start steamer).

  • Page 20: Wiring Diagram

    WIRING DIAGRAM...
