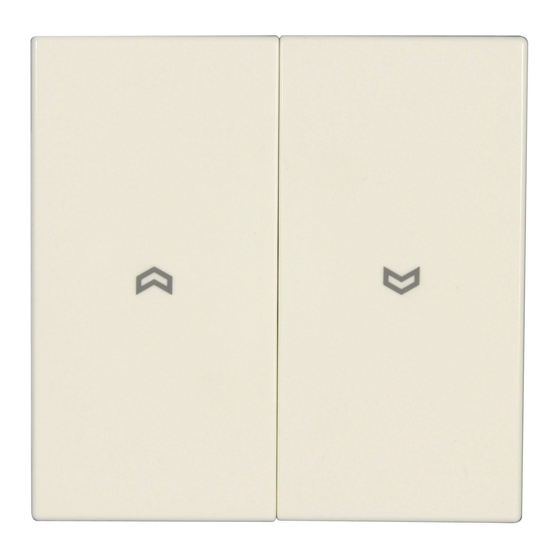

EnOcean radio transmitter
EnOcean radio transmitter
GB
Ref.-no.: ENO A 590 .., ENO LS 990 ..
ENO A 595 .., ENO LS 995 ..
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
The radio communication takes place via a non-exclusively available transmission path, and is therefore not
suitable for safety-related applications, such as emergency stop and emergency call.
These instructions are an integral part of the product and must remain with the end customer.
2 Device components
1
2
3
4
5
6
Fig. 1: Device components
(1) Adhesive pad
(2) Holder plate
(3) Frames (not included in delivery)
(4) Radio module
(5) Rockers
(6) Retaining screw
8
7
Fig. 2 and fig. 3: Transport lock and protective film
(7) Transport lock for rockers
(8) Protective film for holder plate
0024000901
1 / 5
05.03.2021
Advertisement
Table of Contents
Related Manuals for Jung EnOcean ENO A 590 Series
Summary of Contents for Jung EnOcean ENO A 590 Series
- Page 1 EnOcean radio transmitter EnOcean radio transmitter Ref.-no.: ENO A 590 .., ENO LS 990 .. ENO A 595 .., ENO LS 995 .. Operating instructions 1 Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible.
- Page 2 EnOcean radio transmitter 3 Function Intended use - Radio transmitter for the transmission of switching, dimming or shutter commands to radio receivers of the EnOcean radio system - Mounting on appliance box according to DIN 49073, screw fixing on walls or adhesive fixing on smooth, even surfaces (glass).
- Page 3 EnOcean radio transmitter Adhesive fixing Important: The final strength of the adhesive is only reached after 24 hours. • After gluing the holder plate, let the adhesive cure a little. Important: The installation location cannot be changed after the adhesive fixing. •...
- Page 4 EnOcean radio transmitter 6 Commissioning The commissioning of the radio transmitter depends on the receiver used in the EnOcean system. In the following description the commissioning is referred to as „teaching“ in the receiver. A channel of the radio transmitter can be taught-in in any number of receivers.
- Page 5 9 Conformity Albrecht Jung GmbH & Co. KG hereby declares that the radio system type art. no. ENO A 590 .., ENO LS 990 .., ENO A 595 .. and ENO LS 995 .. meets the directive 2014/53/EU. You can find the full article number on the device.
