4: Open-QTM 410 Carrier Board

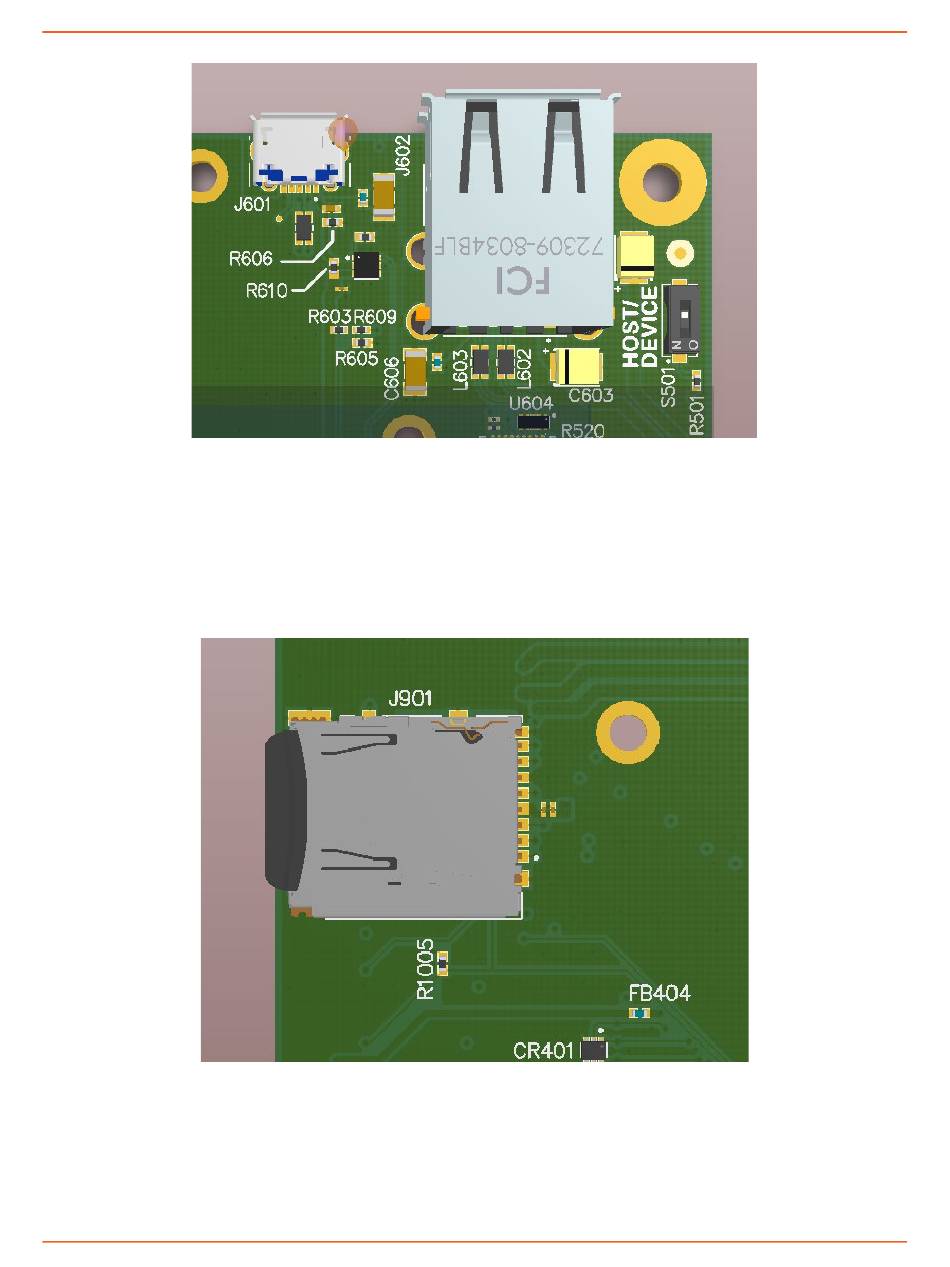

Figure 13 – USB Connections

4.8 Micro SD Socket

The Open-Q 410 Platform has a Micro SD push-push style socket connected to the SDC2 interface of the
TM
processor. The socket is found on the bottom side of the board as shown below.
Figure 14 – Micro SD Socket, J901
Open-Q 410 Dev Kit User Guide 29
