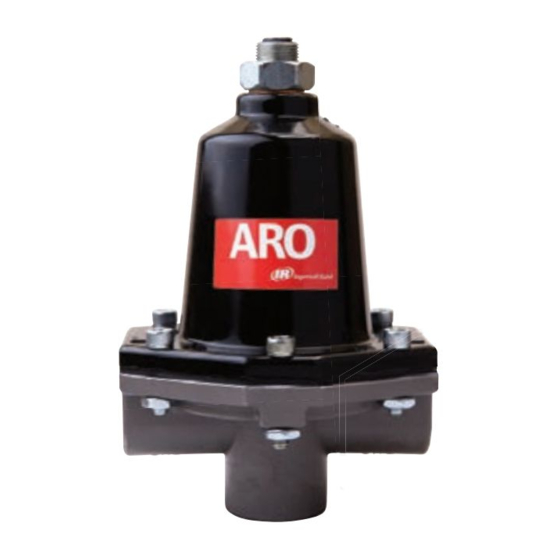

Fluid regulator

Advertisement

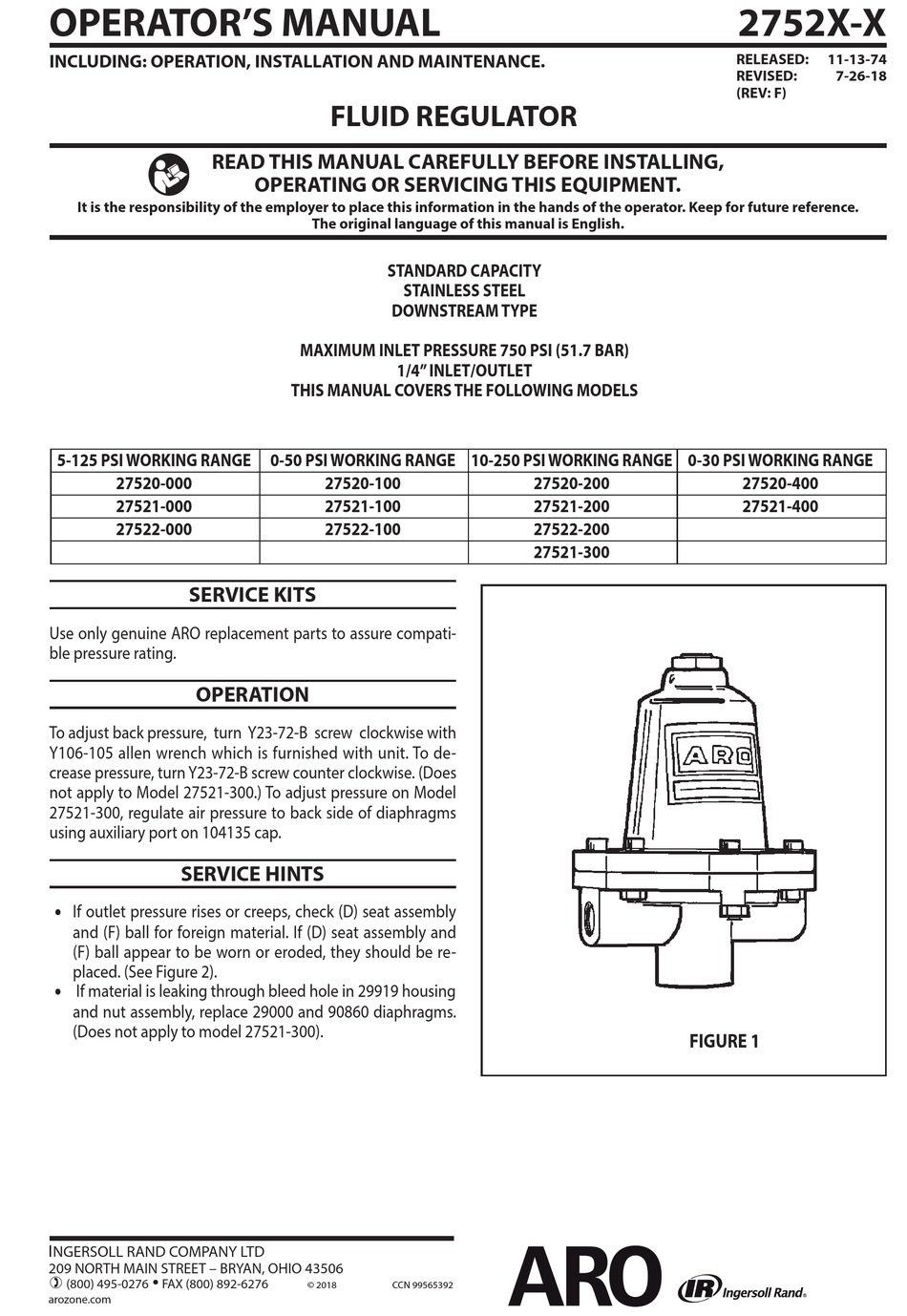

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE.
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
5-125 PSI WORKING RANGE
27520-000
27521-000
27522-000
SERVICE KITS
Use only genuine ARO replacement parts to assure compati-
ble pressure rating.

OPERATION

To adjust back pressure, turn Y23-72-B screw clockwise with
Y106-105 allen wrench which is furnished with unit. To de-
crease pressure, turn Y23-72-B screw counter clockwise. (Does
not apply to Model 27521-300.) To adjust pressure on Model
27521-300, regulate air pressure to back side of diaphragms
using auxiliary port on 104135 cap.

SERVICE HINTS

If outlet pressure rises or creeps, check (D) seat assembly
y
and (F) ball for foreign material. If (D) seat assembly and
(F) ball appear to be worn or eroded, they should be re-
placed. (See Figure 2).
If material is leaking through bleed hole in 29919 housing
y
and nut assembly, replace 29000 and 90860 diaphragms.
(Does not apply to model 27521-300).
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276
FAX (800) 892-6276
arozone.com
FLUID REGULATOR
OPERATING OR SERVICING THIS EQUIPMENT.
The original language of this manual is English.
STANDARD CAPACITY
STAINLESS STEEL
DOWNSTREAM TYPE
MAXIMUM INLET PRESSURE 750 PSI (51.7 BAR)
1/4" INLET/OUTLET
THIS MANUAL COVERS THE FOLLOWING MODELS
0-50 PSI WORKING RANGE 10-250 PSI WORKING RANGE 0-30 PSI WORKING RANGE
27520-100
27521-100
27522-100
© 2018
CCN 99565392
27520-200
27521-200
27522-200
27521-300
FIGURE 1
2752X-X
RELEASED:
11-13-74
REVISED:
7-26-18
(REV: F)
27520-400
27521-400
