OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE

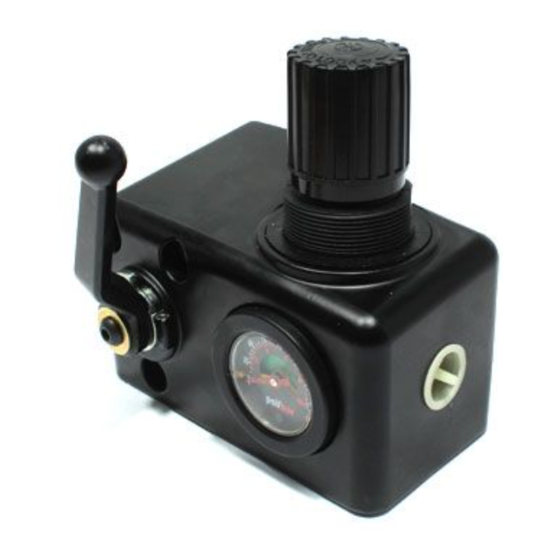

SELF-RELIEVING BALL VALVE REGULATOR
AF04XX-01, AF06XX-01, AF08XX-01, AF10XX-01 and AF12XX-01
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
GENERAL DESCRIPTION
ARO regulators provide controlled, consistent air pressure
required for the operation of a pneumatic actuated motor and
any coupled system. The integrated ball valve enables the op-
erator to easily throttle the motor/system from an off position
to the preset desired regulator pressure. In turn the operator
can also throttle from a full run position to an off condition
and control the positioning of the motor/system. The ball
valve also enables the operator to safely depressurize the mo-
tor/system without disconnecting the supply air line.
INGERSOLL RAND COMPANY INC
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276
FAX (800) 892-6276
arozone.com
THIS ACCESSORY IS USED WITH THE FOLLOWING AIR MOTORS
OPERATING OR SERVICING THIS EQUIPMENT.
© 2020
CCN 15335425
REGULATOR DATA
Model. . . . . . . . . . . . . . . . . . . . . . . . . 67442
Air Inlet Port . . . . . . . . . . . . . . . . . 1/2 - 14 NPT
Maximum Air Inlet Pressure . . . . Refer to Air Inlet PMAX
found on model plate of pump/ air motor
Operating Temprature Range. . . 23
Maximum Air Flow . . . . . . . . . . . . . 215 SCFM (101 dm
Figure 1
67442
RELEASED:
4-13-10
REVISED:
9-25-20
(REV: C)
F to 175
F (-5
C to 79
C)
3
/s)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ingersoll-Rand ARO 67442
Summary of Contents for Ingersoll-Rand ARO 67442
- Page 1 OPERATOR’S MANUAL 67442 INCLUDING: OPERATION, INSTALLATION & MAINTENANCE RELEASED: 4-13-10 REVISED: 9-25-20 (REV: C) SELF-RELIEVING BALL VALVE REGULATOR THIS ACCESSORY IS USED WITH THE FOLLOWING AIR MOTORS AF04XX-01, AF06XX-01, AF08XX-01, AF10XX-01 and AF12XX-01 READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING THIS EQUIPMENT. It is the responsibility of the employer to place this information in the hands of the operator.
- Page 2 OPERATING AND SAFETY PRECAUTIONS OPERATION High pressure equipment – Always CAUTION disconnect air supply and relieve material pressure Regulator before attempting to service. 1. Pull (39) knob to adjust air pressure. INSTALLATION 2. Turn clockwise to increase air pressure. 3. Turn counterclockwise to decrease air pressure. 1.
- Page 3 PARTS LIST / 67442 Item Item Description Qty Part No. Description Qty Part No. (size) (size) 1 Housing (1) 96919 21 Valve Guide (1) ----- [Ny] 2 Seat O-Ring (2) Y325-121 22 Pipe Plug (1) Y17-51-S (3/32” X 1 1/4” OD) (1/4”-18 NPT) 3 Seat (2) 96925...
- Page 4 PARTS LIST / 67442 Figure 2 PN 97999 - 1529 Page 4 of 4 67442 (en)
