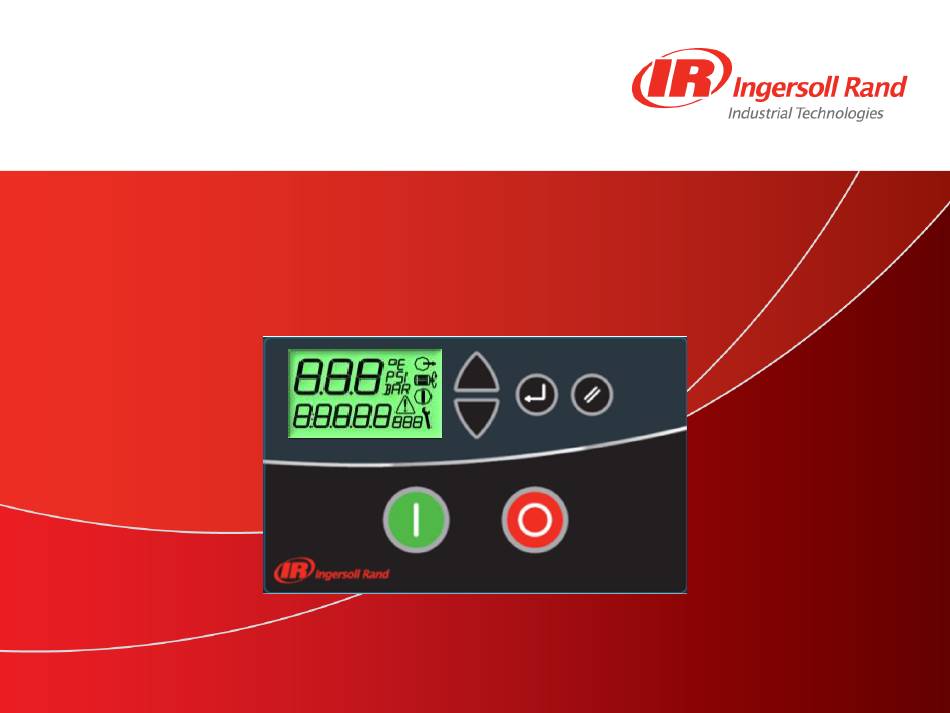

  • Page 1 Xe-50 Controller...
  • Page 2 Xe-50 Controller Please Note:- • Power supply is from a separate transformer • Pressure transducers are 4 – 20mA • No “PAC” Protection Insert Footer...
  • Page 3 Xe-50 Controller • Analog Input Temperature Sensor is 10K NTC Thermistor – 2ATT Airend Discharge Temperature Temp °C Temp °F RESISTANCE (ohms) – 4APT Package Discharge Pressure 33631.0 25988.0 20244.0 15889.0 12562.0 10000.0 8013.0 6461.0 5241.0 4276.0 3507.0 2894.0 2400.0 2001.0...
  • Page 4 Xe-50 Controller • Digital Input – High Pres Dryer high pressure switch - TAS Option – Temp Trip Dryer Temperature Trip - TAS Option – REM Start/Stop Remote Start/Stop – REM Load/Unload Remote Load/Unload – Main Motor Overload – Fan Motor Protection –...
  • Page 5 Xe-50 Controller Navigation Navigation Keys Reset Enter 1: Main Display Value 2: Main Display Value Units 3: User Menu Item Display Value 4: User Menu Item Display Units 5: Status Symbols Started, Running, Loaded 6: Service/Fault Symbols Service, Fault: Alarm/Warning/Trip...
  • Page 6 Xe-50 Controller Menu Routines PASSCODE SETTING: WATCH THE VIDEO • Operational Menu - 0009 – Provides access Operator set points: -  1.Sh Service Interval Hours  1.Pu Upper Pressure Set point  1.PL Lower Pressure Set point  1.rt Run-On Time ...
  • Page 7 Xe-50 Controller Menu Routines • Configuration Menu – 0121 – Provides access to Factory set points:-  2.Sd Motor Star/Delta Time  2.Ad Network Address  2.PA High Pressure Warning Level  2.PF High Pressure Trip Level  2.tA High Temperature Warning Level ...
  • Page 8 Xe-50 Controller – Symbol illuminated continuously Warning Events Displayed Text Full Description • A:0060 High Sep Element Delta P (Option) DI = C6 • A:2040 Freeze Warning (TAS Option) DI = C4 • A:2050 Dryer High Pressure (TAS Option) DI = C5 •...
  • Page 9 Xe-50 Controller – Symbol Flashing Alarm Events Displayed Text Full Description • E:0010 Emergency Stop • E:0020 Motor Overload DI = C2 • E:0030 High Airend Discharge Temperature • E:0040 High Discharge Pressure • E:0115 Pressure Sensor Fault • E:0119 Excess Pressure •...
