Rhino Grip XL - Double
Product Instructions | Part No: 21515
Before you begin, read these instructions and check to be sure all parts and tools are accounted for.
Please retain these instructions for future reference and part ordering information. Note: If any hardware
is missing, do not return to the store. Call us to help, toll free at 877-956-5746.

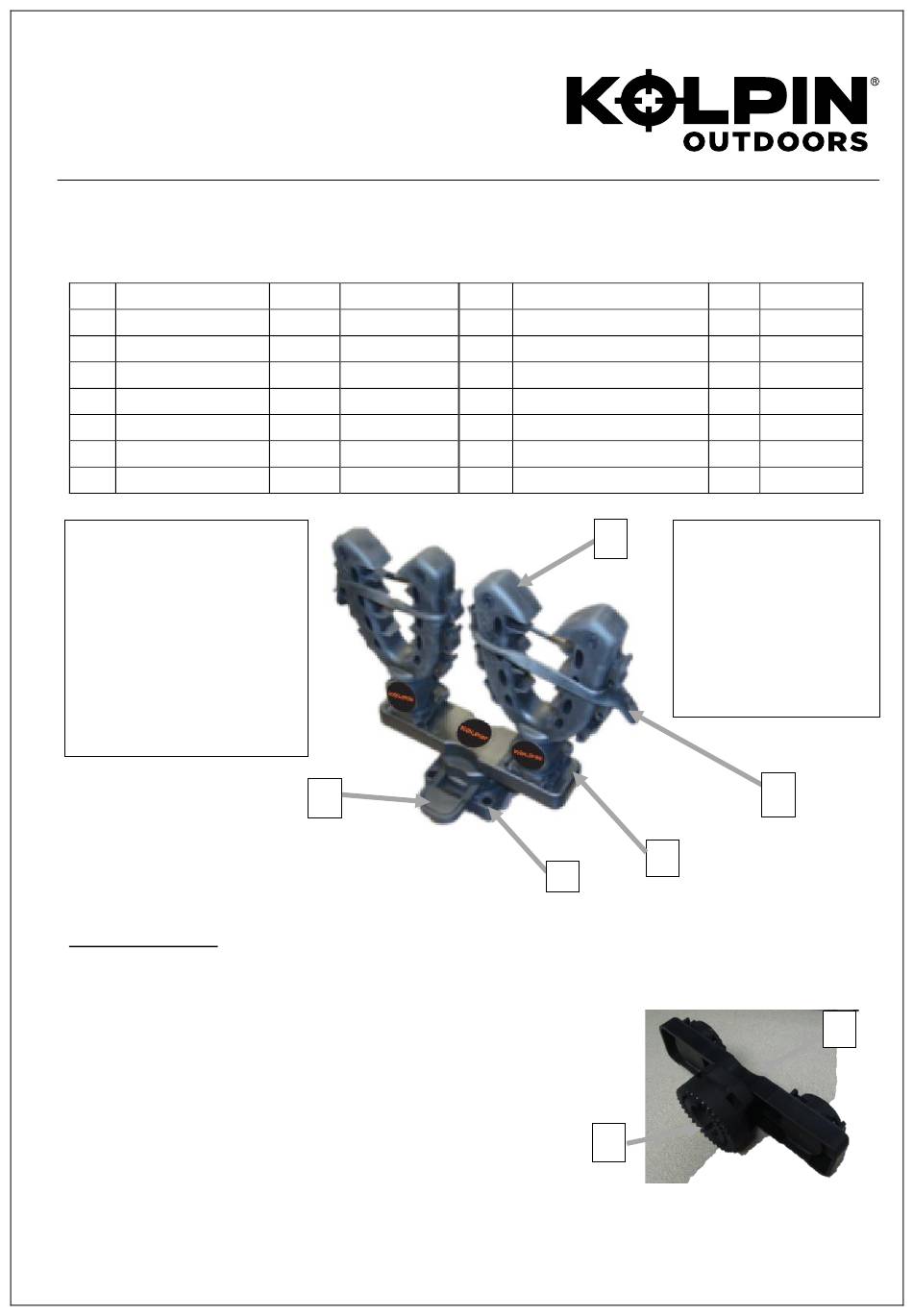

No. Description
1 Plastic Mounting Base
2 Doubler Plate
3 Connector
4 Metal Backer Plate
5 Rhino Grip
6 Adjustment Knob
7 Kwik Clip - Small
These grips are designed to quickly &
easily mount to the rear rack of an
ATV.
Note: Hardware provided is
based on the biggest tube
diameter. You may want to cut
the excess threads from the grip
for safety & to prevent damage to
your machine.

Mounting Instructions -

1. Position the Rhino Grip mounting bases with a metal backer plate on the rack of the ATV where desired.
Run the ¼" truss head bolts provided through the main base/metal backer on the rear rack. Place a
2.
second metal backer plate under the rack tube and secure with nylon
nuts.
3. Tighten the (4) truss head bolts evenly. Note: Be sure not to over
tighten the bolts, as too much torque can over stress the base and
cause the grip to fail.
4. Place the connector into the doubler plate.
5. Place the M6 black nylon locking nut into the bottom of the
connector, so that the nylon part of the nut is facing out towards you.
QTY. Spare P/N
2 71541
2 71503A
2 71516
4 71513
4 71511
4 71501
4 71509
8
© 2020 Kolpin Outdoors, Inc.
No. Description
8 Kwik Clip - Large
9 Rubber Strap
10 ¼" – 20 x 1.50" Truss Bolt
11 ¼" – 20 Nylon Nut
12 Kolpin Logo
13 M6 – Black Nylon Nut
14 M6 Flat Head Machine Screw
5
1
3
Rev 04
QTY. Spare P/N
2 71540
4 87010
8
8
6
2
2
To tilt the grip simply loosen
the adjustment knob, tilt the
grip to the angle of your
choice, & retighten. NOTE:
Lighter objects ONLY can be
carried in the Full-Tilt
position.
9
2
2
