CADILLAC ESCALADE TDL2
(VIDEO Interface)
MODEL
DATE
ML-PAS-161018
2017.12.20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CADILLAC ESCALADE TDL2 and is the answer not in the manual?

Questions and answers

Related Manuals for Car Solutions CADILLAC ESCALADE TDL2

Summary of Contents for Car Solutions CADILLAC ESCALADE TDL2

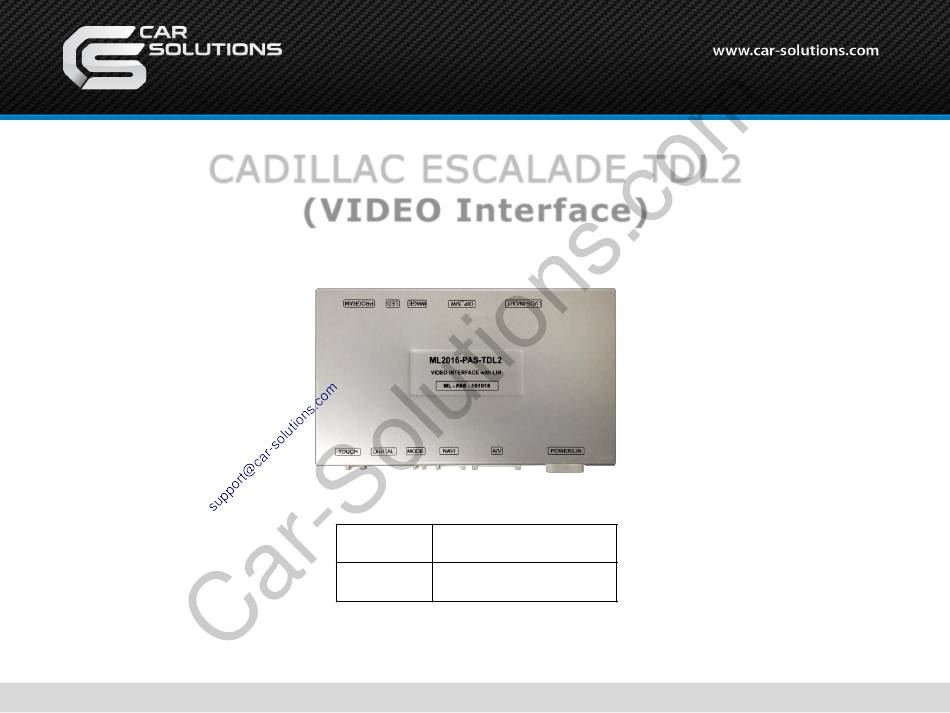

  • Page 1 CADILLAC ESCALADE TDL2 (VIDEO Interface) MODEL ML-PAS-161018 DATE 2017.12.20...
  • Page 2 Main Spec. 1. Input Spec. (MULTI VIDEO INTERFACE) - 2 x A/V Input (External video source). - 1 x CVBS(REAR CAMERA) Input. (Rear camera source) - 1 x CVBS(FRONT CAMERA) Input. (Front camera source) - 1 x Analog RGB Input (Navigation System output) - 1 x Digital RGB Input (Navigation System output) - 1 x LVDS Input.

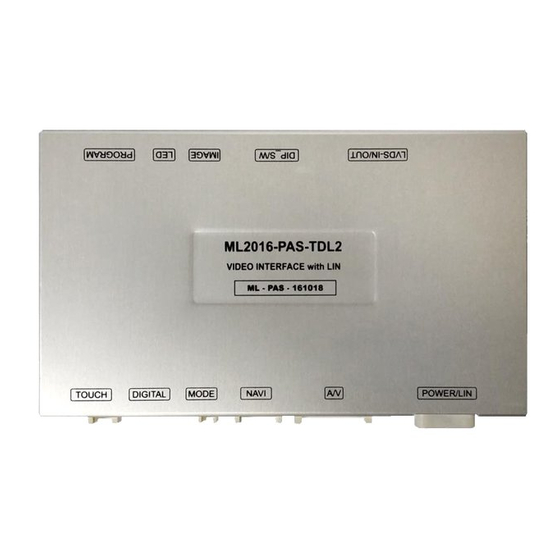

  • Page 3: External Appearance

    External Appearance PROGRAM LCD-IN/OUT DIP S/W Mode TOUCH Digital NAVI POWER/CAN...

  • Page 4: Connector Pin Assignment

    Connector Pin Assignment *NAVI Connect *POWER Connect *Touch Connect ① ③ ⑤ ⑦ ⑨ ⑪ ① ② ③ ④ ⑤ ⑥ ⑦ ① ② ③ ④ ② ④ ⑥ ⑧ ⑩ ⑫ ① R DATA (Red) ① Y- ② G DATA (Green) ①...

  • Page 5: Product Composition

    Product Composition A/V Cable(24pin) 1 EA Interface 1 EA Power Cable 1 EA LVDS Cable 1 EA RGB NAVI Cable(7pin) 1 EA OSD Board 1 EA...

  • Page 6: Dip S/W Setting

    DIP S/W Setting * ON : DOWN , OFF : UP * DIP S/W Example FUNCTION DIP S/W Selection ON : Not Used NAVI OFF : Used ESCALADE 2016~ ON : Skipping Video CTS 2014~ AV1 (DVB-T) OFF : Display ON : Skipping Video AV2 (DVD) OFF : Display...
  • Page 7 OSD(On Screen Display) Control OSD Control Board MENU DOWN MENU Push -> OSD menu On/Off Item Selection, Value Selection Item up Increase selected value DOWN Item down Decrease selected value Mode State First Menu Second Menu Third Menu...
  • Page 8 OSD(On Screen Display) Control First Menu Second Menu Third Menu Action Original Camera RearCam-Type ExtDevice Use aftermarket Rear camera Rear camera get +12V consistently RearCam-Power AUTO Rear camera get +12V when reverse gear on Shut out the power supply. Original Camera FrontCam-Type Option ExtDevice...
  • Page 9 OSD(On Screen Display) Control NAVI-RGB menu DVD,DVB-T(DMB),NAVI-AV,REAR,FRONT menu First Menu Second Menu Third Menu Action First Menu Second Menu Third Menu Action Brightness Adjust the value of brightness Brightness Adjust the value of brightness Contrast Adjust the value of contrast Contrast Adjust the value of contrast Color-RED...

  • Page 10: Mode Change

    Mode Change • For use Navigation, DIP-SW 1=OFF * HOME icon setting on OSD menu - Double : Home icon push double. - Long : Home icon push long.
  • Page 11 Mode Change * Use channel Button Control * Press buttons, back to OEM Screen for 3 second, then return. NAVI NAVI AV1(DVB-T) AV1(DVB-T) AV2(DVD) AV2(DVD) 3 second • If you use this function, must set “ON” • Push “BACK” button 7sec, then screen pop up “Auto Return : On” message •...
  • Page 12 OSD(On Screen Display) Control Bluetooth call function Disable Bluetooth Phone Bluetooth Phone Usage NAVI NAVI AV1(DVB-T) AV1(DVB-T) AV2(DVD) AV2(DVD) Call Ending 1~30 second...
  • Page 13 OSD(On Screen Display) Control OSD Setting – Parking Mode On/Off PAS ON PAS OFF...
  • Page 14 OSD(On Screen Display) Control OSD Setting – Parking sensor Display On/Off (OPS) OPS OFF OPS ON...
  • Page 15 OSD(On Screen Display) Control OSD Setting – Warnings Language Change...
  • Page 16 OSD(On Screen Display) Control OSD Setting – Front Camera Auto Mode - Option -> RearCam-RcvOpt -> 0 second = RearCam-RcvOpt menu OFF 1~30 second = RearCam-RcvOpt menu ON & time control NAVI NAVI REAR FRONT AV1(DVB-T) AV1(DVB-T) AV2(DVD) AV2(DVD) 1~30 second...
  • Page 17 OSD(On Screen Display) Control OSD Setting– Screen Mode - Horizontal - Vertical - Scaler X Up - Scaler X Down - Scaler Y Up - Scaler Y Down...
  • Page 18 OSD(On Screen Display) Control OSD Setting – Utility Mode - Factory Reset : Execute - Reset All (Setting Default) - Version : FW Version Finish update FW, check the FW versoin Last Source : BEPP06SGX-130950 Software Version Software Month Software Year Special Version National : CN=CHINA, KR=KOREA, JP=JAPAN, US=United States Hardware Version...
  • Page 19 Install Manual (No OEM Navi) 1. Installation LVDS connection No OEM Navigation Head Unit Navigation Monitor...
  • Page 20 Install Manual (OEM Navigation) 2. Installation LVDS connection OEM Navigation Head Unit Navigation Monitor...
  • Page 21 Install Manual ⓕ ⓐ Take out Back Cover ⓖ ⓗ Take out OEM FPC CABLE...
  • Page 22 Q & A 1. If Interface has a problem, Please check LED. - ACC on (12v), If Interface does not have a problem; GREEN LED is blinking every 1 sec.. LED is turn on (not blinking), Interface has a problem. LED is turn off every 1 sec, there is no input.
