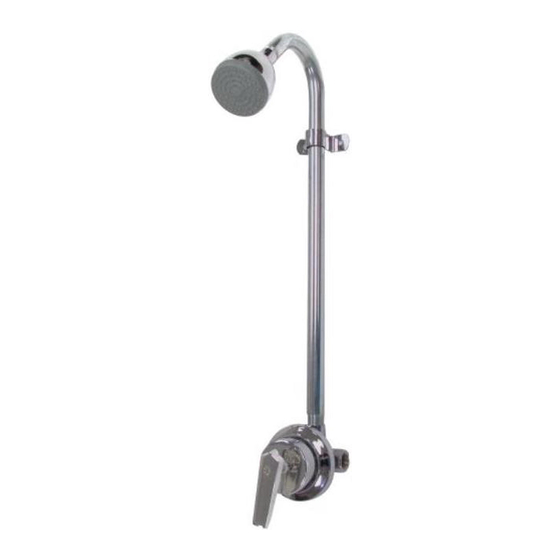

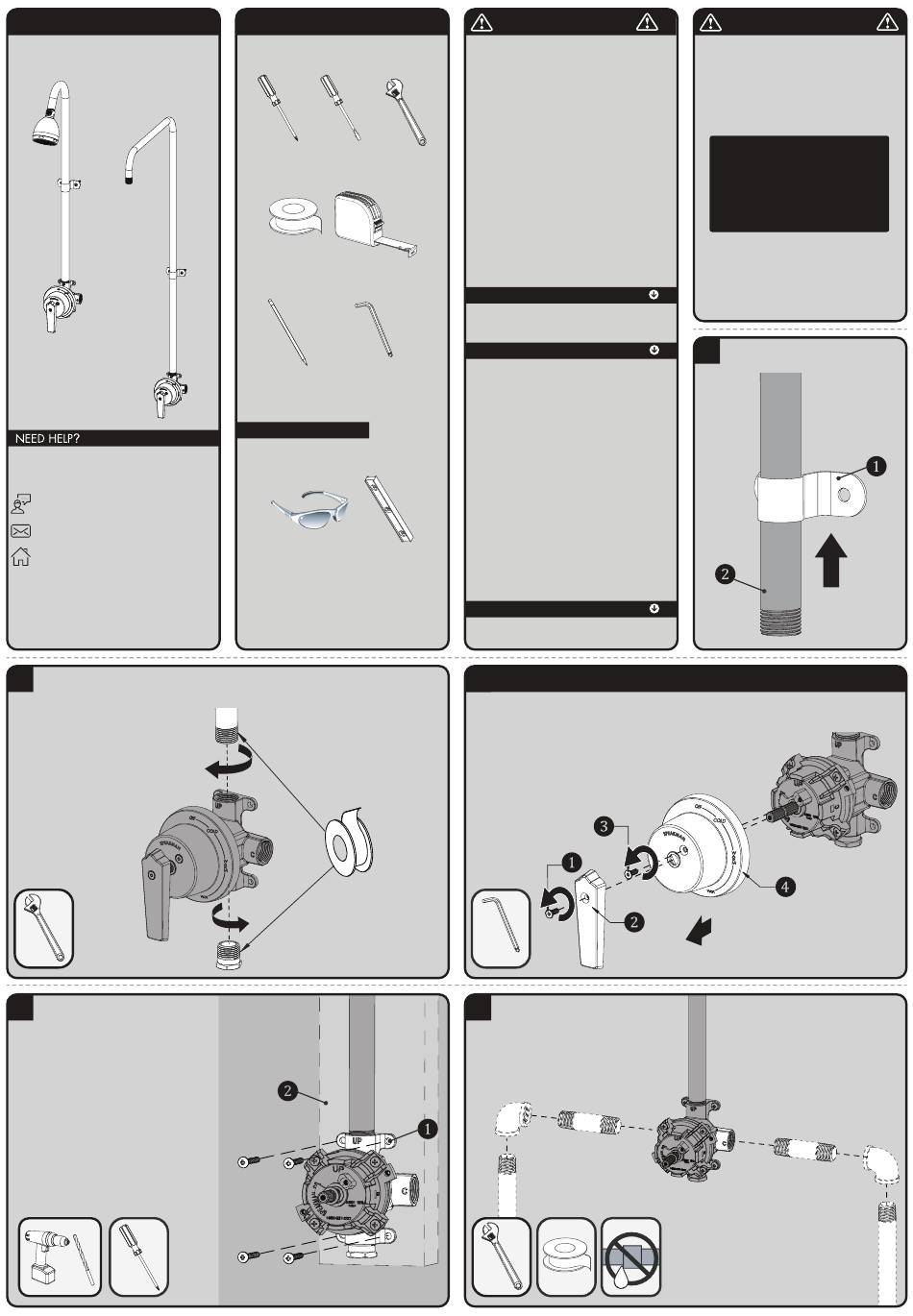

INSTRUCTIONS FOR MODELS
S-1496-AF
S-1498-LH
* Shower head may
vary between models.
For additional assistance or service please contact:
SPEAKMAN
®
800-537-2107
customerservice@speakman.com
www.speakman.com
92-S-1496-98-03
2
Apply Thread Seal Tape to both ends of Shower Arm Gooseneck, and Bottom Plug. Thread Shower Arm
Gooseneck into Valve Body being sure to properly align outlet. Install Plug into bottom port of Valve Body and
Wrench tighten.
4

Mounting location of Shower Valve.

Determine mounting location of Shower Valve.
(See Rough-In Diagram located at the end of this
document).
Secure with Mounting Screws (not included) to
structure capable of supporting the product in use.
Ensure there is adequate distance between the
Valve and mounting structure to allow for
installation of Water Supply lines.
Note: A Spacer Block with a thickness of
1/2"-9/16" is required between the Shower
Valve (1) and the Mounting Structure (2) only. This
is to allow for adequate clearance while installing
inlet supply lines.
TOOLS AND SUPPLIES
Phillips
Flat Tip
Adjustable
Screwdriver
Screwdriver
Wrench
Thread Seal
Measuring
Tape
Tape
Pencil
3/32" Hex Key Wrench
(Included)
HELPFUL TOOLS & SUPPLIES:
Safety
Level
Glasses

IMPORTANT

• Be sure to read instructions thoroughly before
beginning installation.
• Be sure to have properly adjusted the Temperature
Limiting Stop (TLS) as outlined in this Installation
Manual.
• Inspect all connections after installation of valve.
• This valve has an operating range of
20-80 Psi.
• This valve is designed to be used in conjunction
with a shower head rated at
1.75 gpm (6.6 L/min)
or higher flow rate.
• NOTE: This installation manual covers several
models of valves. While the appearance of your
valve may differ from those shown, the installation
method is the same.
Maximum water pressure: 125 psi static; minimum
water pressure: 20 psi flowing; minimum cold
supply temperature: 40 °F; maximum hot supply
temperature: 160 °F.

SAFETY TIPS

Cover your drain to prevent loss of parts. Be sure to
wear eye protection while cutting pipe.

MAINTENANCE

Your new Shower/Bath Valve is designed for years
of trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of
harsh chemicals and abrasives on any of the
Speakman custom finish products may damage the
finish and void the product warranty. Please be sure
to only use approved cleaners. Please contact
Speakman for any clarification of acceptable
cleaners.
This type of valve must be cleaned and maintained
on a regular basis. Periodic maintenance should be
performed at least every 12 months or after any
changes have been made to the building's plumbing
system. Valves that are installed outdoors should be
winterized by removing all of the internal parts and
removing any standing water from the valve.
Quarterly the maximum hot temperature setting (TLS)
should be checked and adjusted accordingly.
WARRANTY
Warranty information can be found at:
www.speakman.com
3

HANDLE AND DIAL CAP REMOVAL

The Handle and Dial Cap must be removed for proper mounting of the Shower Valve and to adjust the
Temperature Limit Stop. Remove the Handle Screw (1), then slide the Handle (2) off. Remove the Dial Cap
Screw (3) followed by sliding off the Dial Cap (4).
3/32"
5
Apply Thread Seal Tape to HOT and COLD Pipe
Connections (not supplied). Install the HOT and
COLD Pipe Connections to the Valve accordingly,
either through the wall, from the ceiling, or from
the floor. For ceiling and floor mounts, hold 1"
from finished wall to center of supply lines. Thread
into Valve Body and Wrench tighten.
Turn on
water supply and check for leaks.
NOTE: Illustration shown is for reference only.

FREEZE PROTECTION

• Mounting location must be capable of supporting
the product in use.
Freeze damage to the shower unit will void the
Freeze damage to the shower unit will void the
warranty. It is important to winterize the complete
warranty. It is important to winterize the complete
shower unit. The unit must be drained of all water
shower unit. The unit must be drained of all water
in freezing conditions. This includes removing the
in freezing conditions. This includes removing the
valve cartridge and the shower head from the unit.
valve cartridge and the shower head from the unit.
Store the valve cartridge and shower head indoors.
Store the valve cartridge and shower head indoors.
CAUTION: When outdoor temperature
rises above 90 degrees, use caution to
prevent scalding from water stored within
the unit. It is recommended to flush the unit
by turning it on for 30 seconds before
entering the shower water. This will avoid
accidental scalding by the user and ensure
safe use of the shower unit.
1
Slide the Strap (1) onto the Shower Arm (2).
