Installation, Operation & Maintenance Instructions
DESCRIPTION

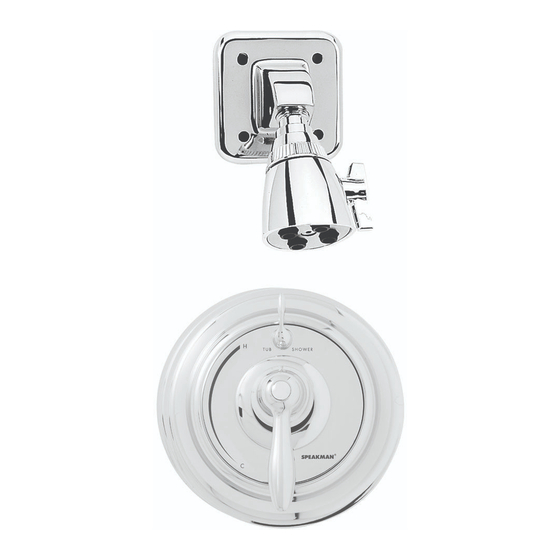

Speakman SentinelPro™ Combination, SLV-5420 includes: Trim with integral Volume Control / Diverter
Handle (CPT-5401), and AnyStream® Wall Mounted Shower Head (S-2280). This combination does not
include the Shower Valve.
This combination should be installed with one of the following
Speakman SentinelPro™ Thermostatic/Pressure Balance Diverter Shower Valves
CPV-TP-DV:
CPV-TP-DV-PXC: Thermostatic/Pressure Balance Diverter Shower Valve
CPV-TP-DV-PXE: Thermostatic/Pressure Balance Shower Valve
SPECIFICATIONS
CPT-5401 T/P DIVERTER VALVE TRIM:
FINISH: Polished Chrome
COMPLIANCE: ASME A112.18.1 / CSA B125.1 Standard
S-2280 ANYSTREAM® WALL MOUNTED SHOWER HEAD:
CONNECTIONS: ½" NPT Female Inlet
FLOW RATE: 2.5 gpm (9.5 L/min)
FINISH: Polished Chrome
COMPLIANCE: ASME A112.18.1 / CSA B125.1 Standard
INSTRUCTIONS
See individual products for installation of the components and warranty information.
400 Anchor Mill Rd. New Castle, DE 19720
SPEAKMAN
SLV-5420
SENTINELPRO™ COMBINATION SERIES
Thermostatic/Pressure Balance Diverter Shower Valve
Sweat & Thread Connections
PEX F1807 Crimp Inlet Connections
PEX F1960 Cold-Expansion Inlet Connections
SPEAKMAN
07/30/18
www.speakman.com
®
®
Phone: 800-537-2107
92C-SLV-5420-01
Fax: 800-977-2747
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Speakman SENTINELPRO COMBINATION SLV-5420
Summary of Contents for Speakman SENTINELPRO COMBINATION SLV-5420
- Page 1 Installation, Operation & Maintenance Instructions SENTINELPRO™ COMBINATION SERIES DESCRIPTION Speakman SentinelPro™ Combination, SLV-5420 includes: Trim with integral Volume Control / Diverter Handle (CPT-5401), and AnyStream® Wall Mounted Shower Head (S-2280). This combination does not include the Shower Valve. This combination should be installed with one of the following Speakman SentinelPro™...
- Page 2 ROUGH-IN SPEAKMAN ® 400 Anchor Mill Rd. New Castle, DE 19720 Phone: 800-537-2107 Fax: 800-977-2747 07/30/18 www.speakman.com 92C-SLV-5420-01...
-
Page 3: Tools And Supplies
Cover your drain to prevent loss of parts. Be sure to wear eye protection while cutting pipe. MAINTENANCE Your new Speakman Product is designed for years of trouble-free performance. Keep it looking new by cleaning it periodically with a soft cloth. The use of harsh... - Page 4 Temporarily place Handle over splines and adjust the valve to the OFF position (as per the Valve Instructions). Then, align Handle vertically as shown below. Secure Handle to Spindle with the included #8 Screw. SPEAKMAN CPT-5001 / CPT-5401 REPAIR PARTS ® ITEM NO.
- Page 5 SPEAKMAN CPT-5001 ROUGH-IN DIAGRAM ® 1" 25mm HOLE FOR SHOWER ARM 6'-6" [2 METERS] TO FLOOR 7.50in 191mm 5-1/2" (140MM) DIA. 4.31in 1/2" NPT MALE HOLE FOR 110mm 1/2" SWEAT VALVE ACCESS CONNECTION 1/2" NPT MALE 1/2" NPT MALE 1/2" SWEAT 1/2"...
-
Page 6: Installation
MAINTENANCE The gleaming finish of your SPEAKMAN WATERSAVER® shower head can be cleaned by using mild soap and warm water. Dry immediately with a soft, clean cloth for best results. The flow control device limits water flow to 2.5 gallons per minute.
