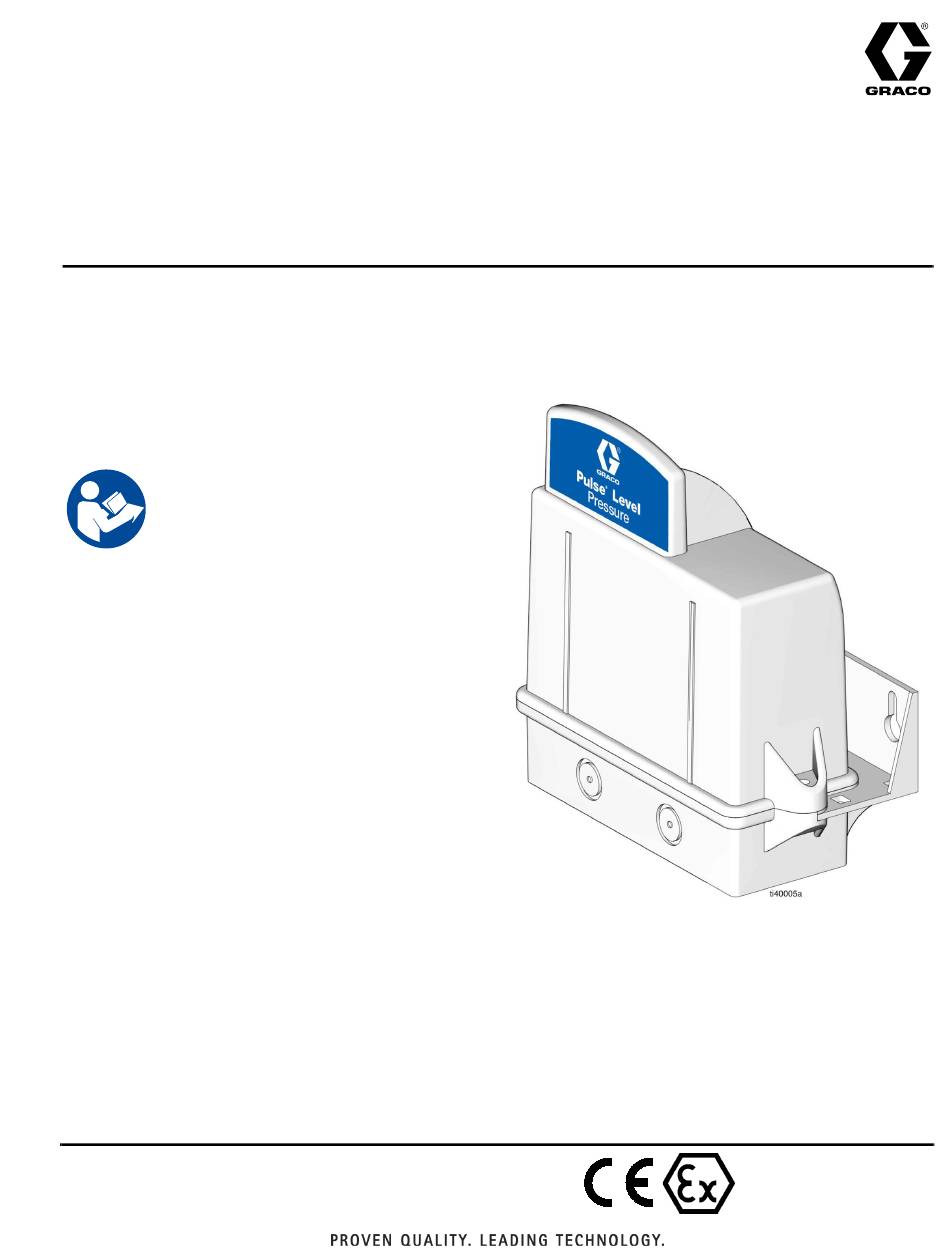

Instruction Manual
®
Pulse
Tank Level Monitor

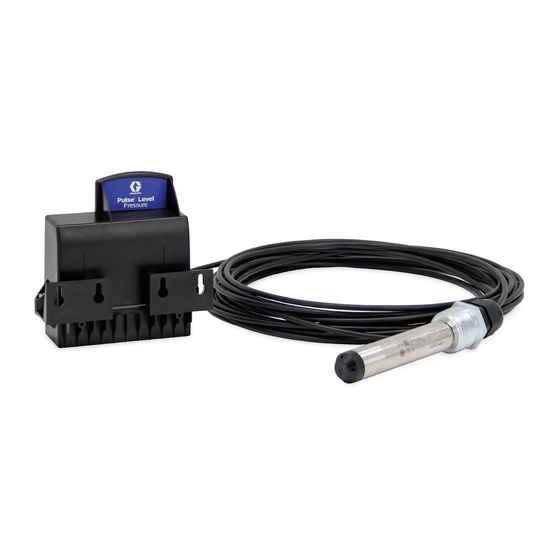

Measures the fluid height using pressure to determine the volume of fluid within a tank.
For use only with Pulse Level. Intended fluids: oil, diesel, fuel, waste oil, automatic
transmission fluid (ATF), kerosene, anti-freeze, windshield washer solution, waste water,
gasoline, and DEF. For professional use only. Not suitable for tank overfill protection.
Part No. 25T462
Important Safety Instructions
Read all warnings and instructions in this
manual and in all related Pulse manuals
before using the equipment. Save all
instructions.
Class 1, Division 1 Gr C D
Class 1 Zone 0 AEx ia IIB T4 Ga
Level Pressure
This Tank Level Monitor (TLM) contains FCC ID XMR
201707 BG96. This device complies with Part 15 of
the FCC Rules. Operation is subject to the following
two conditions:
•
This device may not cause harmful interference.
•
This device must accept any interference
received, including interference that may cause
undesired operation.
3A8622B
EN
II 1G Ex ia IIB T4 Ga

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pulse 25T462 and is the answer not in the manual?

Questions and answers

Related Manuals for Graco Pulse 25T462

Summary of Contents for Graco Pulse 25T462

  • Page 1 Instruction Manual ® Pulse Level Pressure Tank Level Monitor 3A8622B Measures the fluid height using pressure to determine the volume of fluid within a tank. For use only with Pulse Level. Intended fluids: oil, diesel, fuel, waste oil, automatic transmission fluid (ATF), kerosene, anti-freeze, windshield washer solution, waste water, gasoline, and DEF.

  • Page 2: Table Of Contents

    California Proposition 65 ....13 Graco Standard Warranty ....14...

  • Page 3: Warnings

    Servicing of the circuitry involving the batteries and replacement of the lithium batteries must only be done by a trained technician. • Only use Graco 19D216 replacement battery. • Under certain extreme circumstances, exposed plastic and ungrounded metal parts of the enclosure may store electrostatic charges capable of ignition.

  • Page 4: Installation

    Installation Installation Register TLM to Tank in Pulse Activation Level Software 1. Hold the magnet (supplied) to the Hot Spot on the side of the log device marked by a yellow sticker Navigate to URL: level.gracopulse.com . 1). This device requires access to a cellular network to work, and can be activated in Pulse Level.

  • Page 5: Beep Pattern

    Installation Mount Options 5. Successfully connecting is indicated by a high/low/high series of beeps that indicate the data Log Device is being sent to Pulse Level. The log device can be mounted in three ways: 6. Once activated, the device uploads readings at scheduled times, if assigned to a tank in Pulse 1.

  • Page 6: Pressure Sensor

    Installation Pressure Sensor 1. Position the pressure sensor so it is hanging downwards on the cable (F . 5). 2. Make sure that the inlet openings on the protective cap are not clogged (F . 4). Protective Cap 3. Insert the pressure sensor through the 1 in. npt hole.

  • Page 7: Operation

    Operation Operation View Data Manual Measurement The TLM is configurable with Pulse Level 1. Hold the magnet (supplied) to the Hot Spot marked (level.gracopulse.com) to take readings at predefined by the yellow sticker on the side of the device (F times.

  • Page 8: Troubleshooting

    Solution Device is not reporting scheduled Out of cellular range. Consider implementing a WiFi readings. network and using Graco’s WiFi Obstruction or interference of TLM. cellular RF signal. Ensure that the TLM is not encased in metal, since this would obstruct the signal.

  • Page 9: Service

    3. Disconnect the battery pack from the circuit board be done by a trained technician. . 8). • Only use Graco 19D216 replacement battery. 1. Remove the two (2) screws that keep the case together (F . 7). . 8 Disconnect Battery 4.
  • Page 10 Service Battery Pack . 10 6. Reconnect the battery pack to the circuit board 5. Slide the new battery pack into place (F . 10). (see F . 8). 7. Reassemble the case. 3A8622B...

  • Page 11: Kits And Accessories

    Kits and Accessories Kits and Accessories Part Description 19D216 Battery, Pack Dimensions 3A8622B...

  • Page 12: Dimensions - Tank Specifications

    Dimensions - Tank Specifications Dimensions - Tank Specifications Vertical Tank: Obround Tank: • Maximum Volume - 999,999 gallons or liters. • Maximum volume = 999,999 gallons or liters. • Tank walls must be uniformly vertical from empty • Tank end walls must be flat; they cannot be any level to full.

  • Page 13: Technical Specifications

    -4°F to 131°F -20°C to 55°C Storage Temperature Range -4°F to 122°F -20°C to 50°C 3.6V Lithium Thionyl Chloride Exi “Bobbin Type” Batteries construction. Use only Graco part number 19D216 battery. Battery Life 10 years* Enclosure (Ingress Protection) IP68 Tanks Maximum Volume...

  • Page 14: Graco Standard Warranty

    (including, but not limited to, incidental or consequential damages for lost profits, lost sales, injury to person or property, or any other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the date of sale Graco makes no warranty, and disclaims all implied warranties of merchantability and fitness for a particular purpose in connection with accessories, equipment, materials or components sold but not manufactured by Graco.
