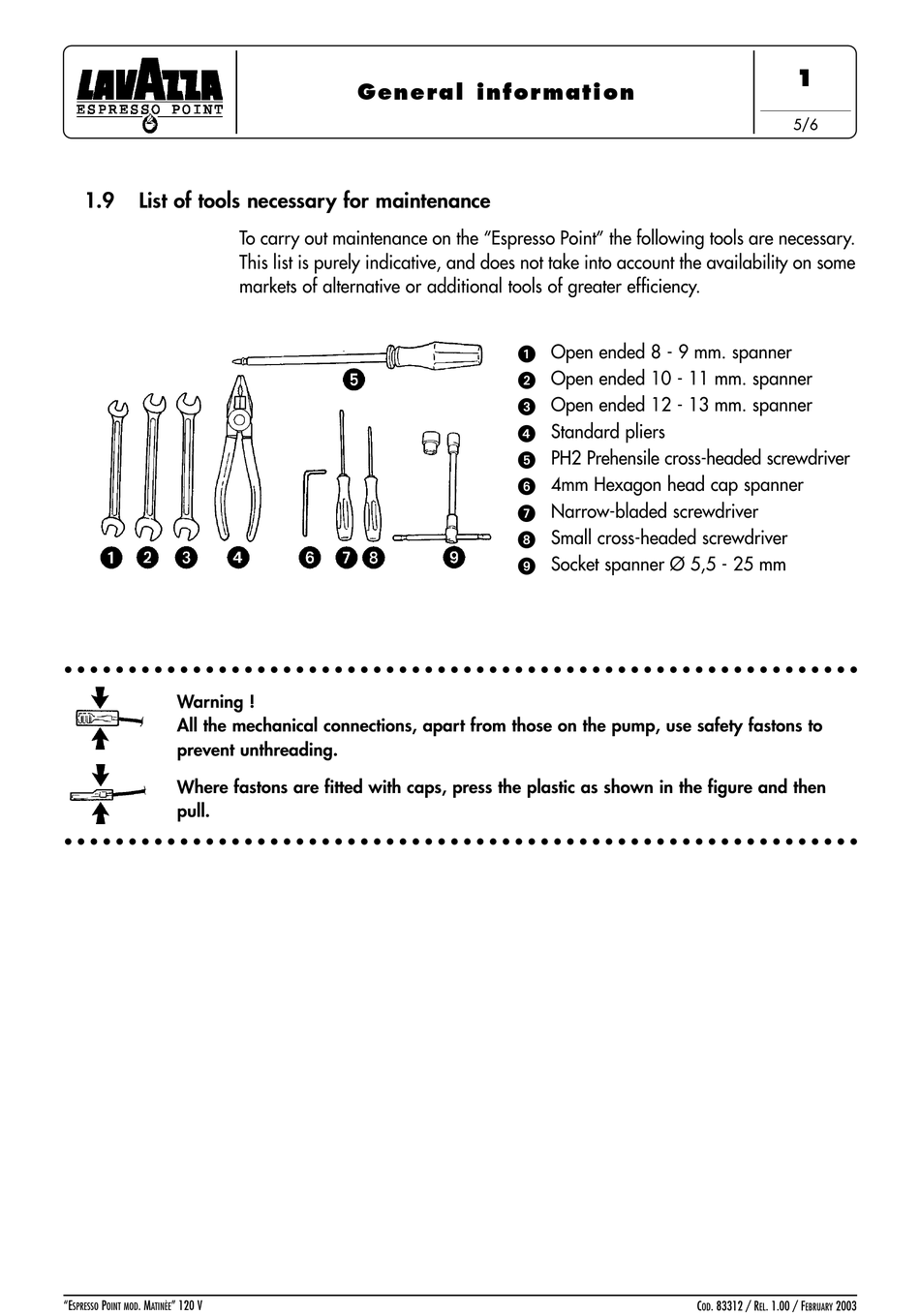

1.9 List of tools necessary for maintenance
Warning !
All the mechanical connections, apart from those on the pump, use safety fastons to
prevent unthreading.
Where fastons are fitted with caps, press the plastic as shown in the figure and then
pull.
"E P . M " 120 V
SPRESSO OINT MOD ATINÈE
General information
To carry out maintenance on the "Espresso Point" the following tools are necessary.
This list is purely indicative, and does not take into account the availability on some
markets of alternative or additional tools of greater efficiency.
Open ended 8 - 9 mm. spanner
Open ended 10 - 11 mm. spanner
Open ended 12 - 13 mm. spanner
Standard pliers
PH2 Prehensile cross-headed screwdriver
4mm Hexagon head cap spanner
Narrow-bladed screwdriver
Small cross-headed screwdriver
Socket spanner Ø 5,5 - 25 mm
