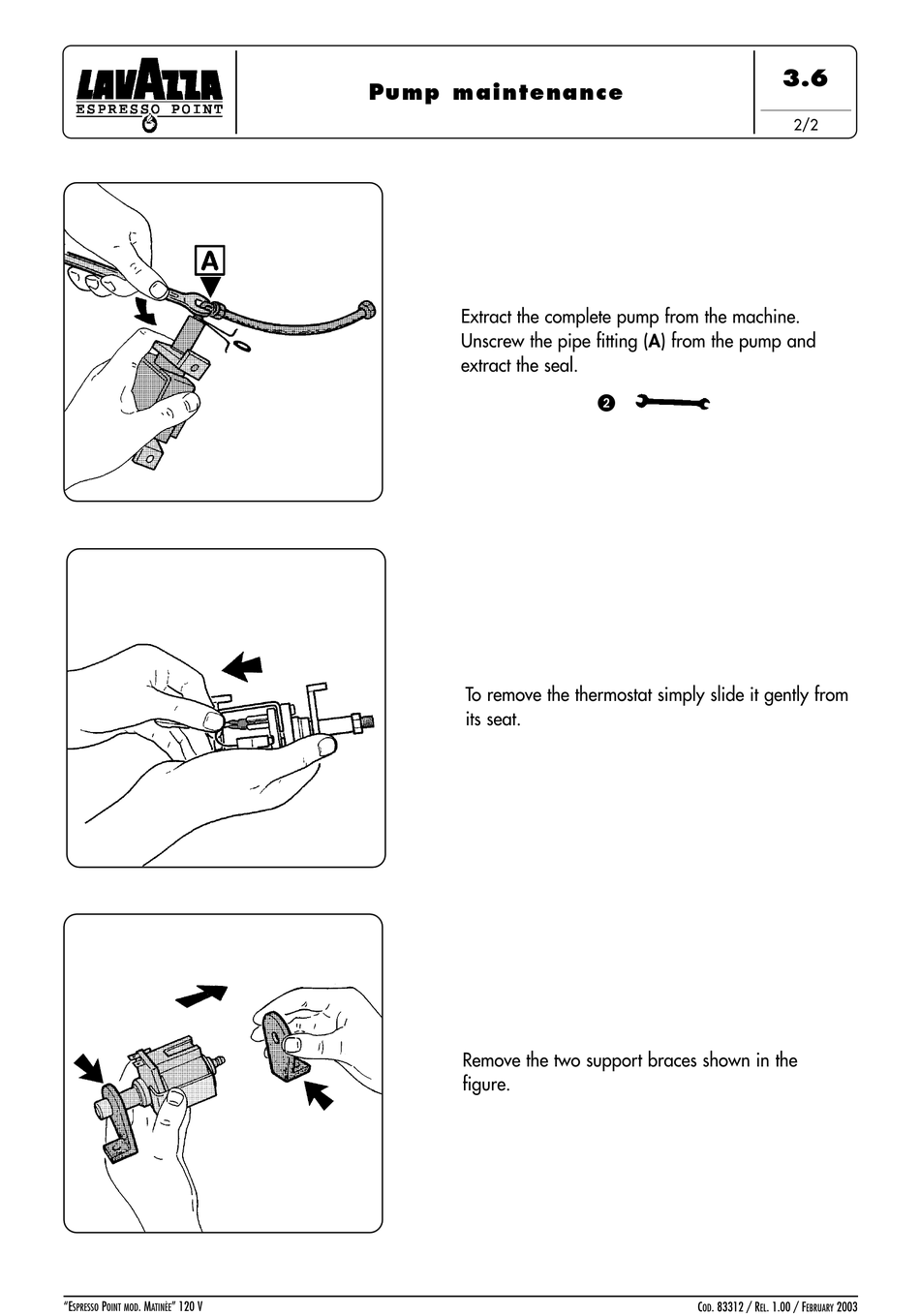

Pump maintenance
Extract the complete pump from the machine.
Unscrew the pipe fitting (A) from the pump and
extract the seal.
To remove the thermostat simply slide it gently from
its seat.
Remove the two support braces shown in the
figure.
3.6
2/2
