3.4
Light – light holder maintenance
1/1
First carry out the operations described in schedule 3.A
"Front part preliminary maintenance operations"

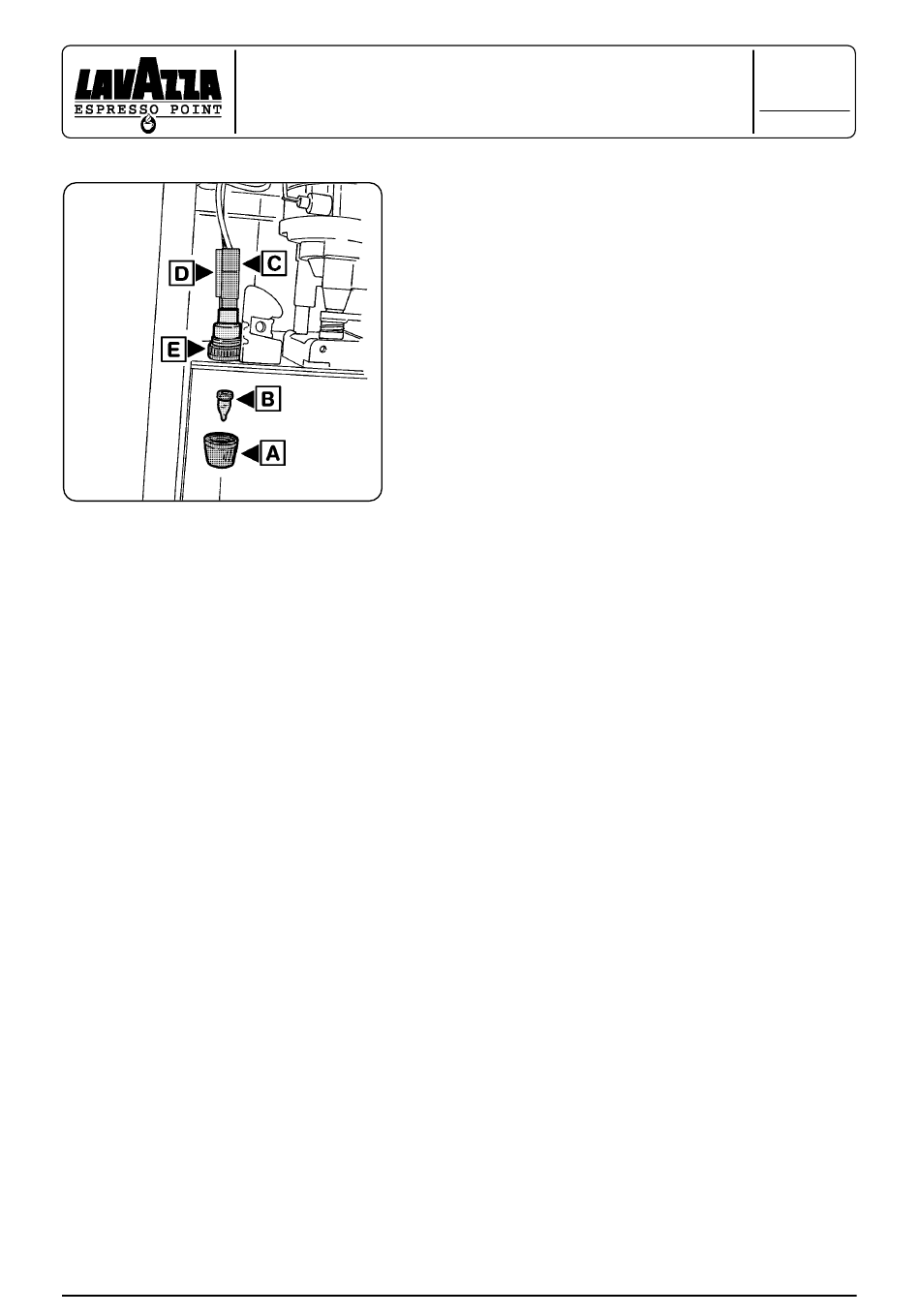

Unscrew the transparent cap (A) in the cup
department in a clockwise direction.
Unhook and replace the bulb (B) rotating it in a
clockwise direction.
To remove the light-holder it is necessary to
withdraw the two white wires (C) and (D).
Unscrew completely the ring nut (E) and remove
the light-holder.
