"E P . M " 120 V
SPRESSO OINT MOD ATINÈE
Volumetric dosing
device maintenance

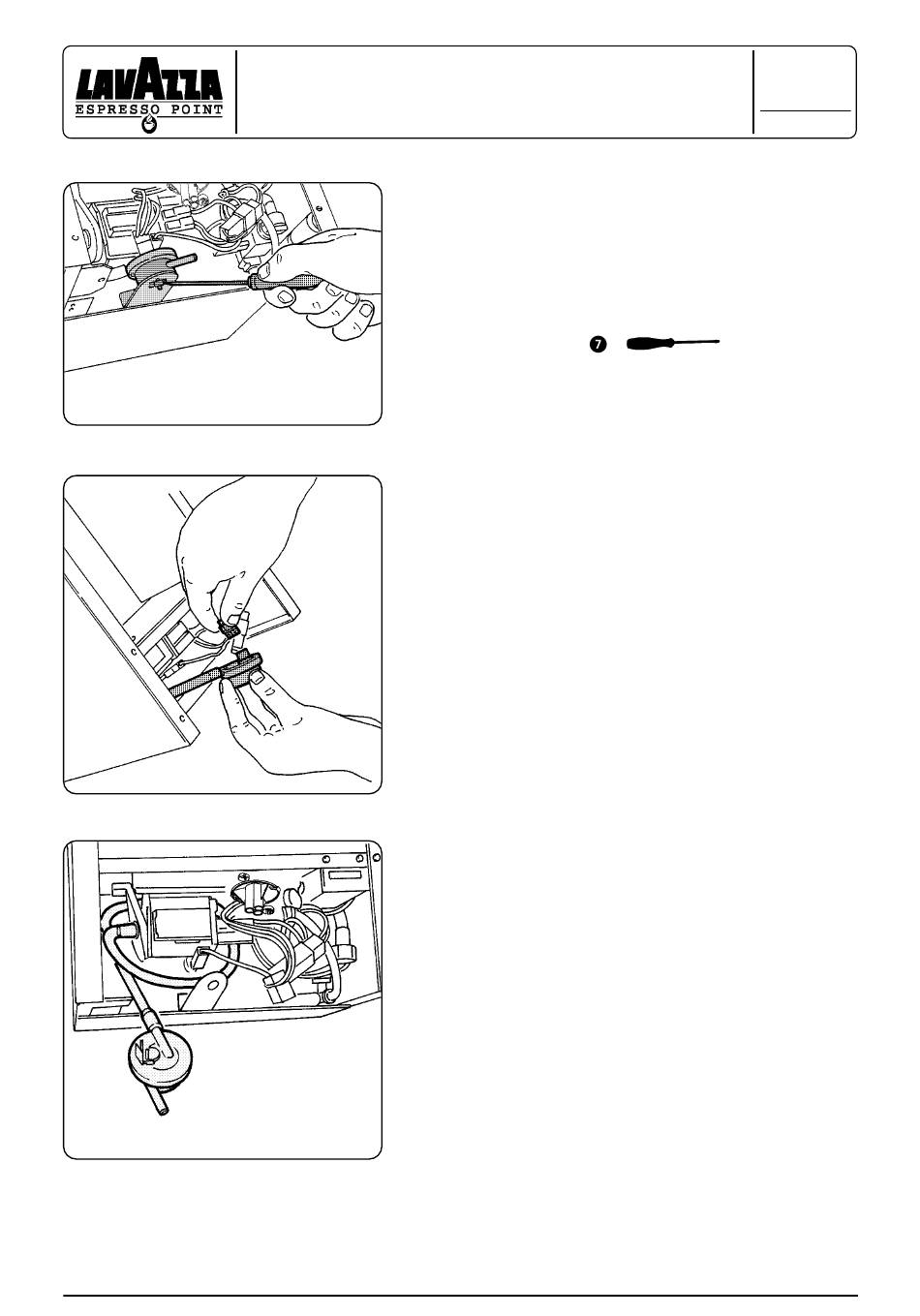

To extract the volumetric dosing device apply
pressure with a screwdriver removing the dosing
device locking spring.
Remove the dosing device from its bracket and
extract the electric harness.
Extract the pump-dosing device connection pipe
from the pump as indicated in the diagram.
When assemblying make sure that the pipe forms a
complete ring behind the pump and is not pinched,
as shown in the figure.
3.5
1/1
C . 83312 / R . 1.00 / F 2003
OD EL EBRUARY
