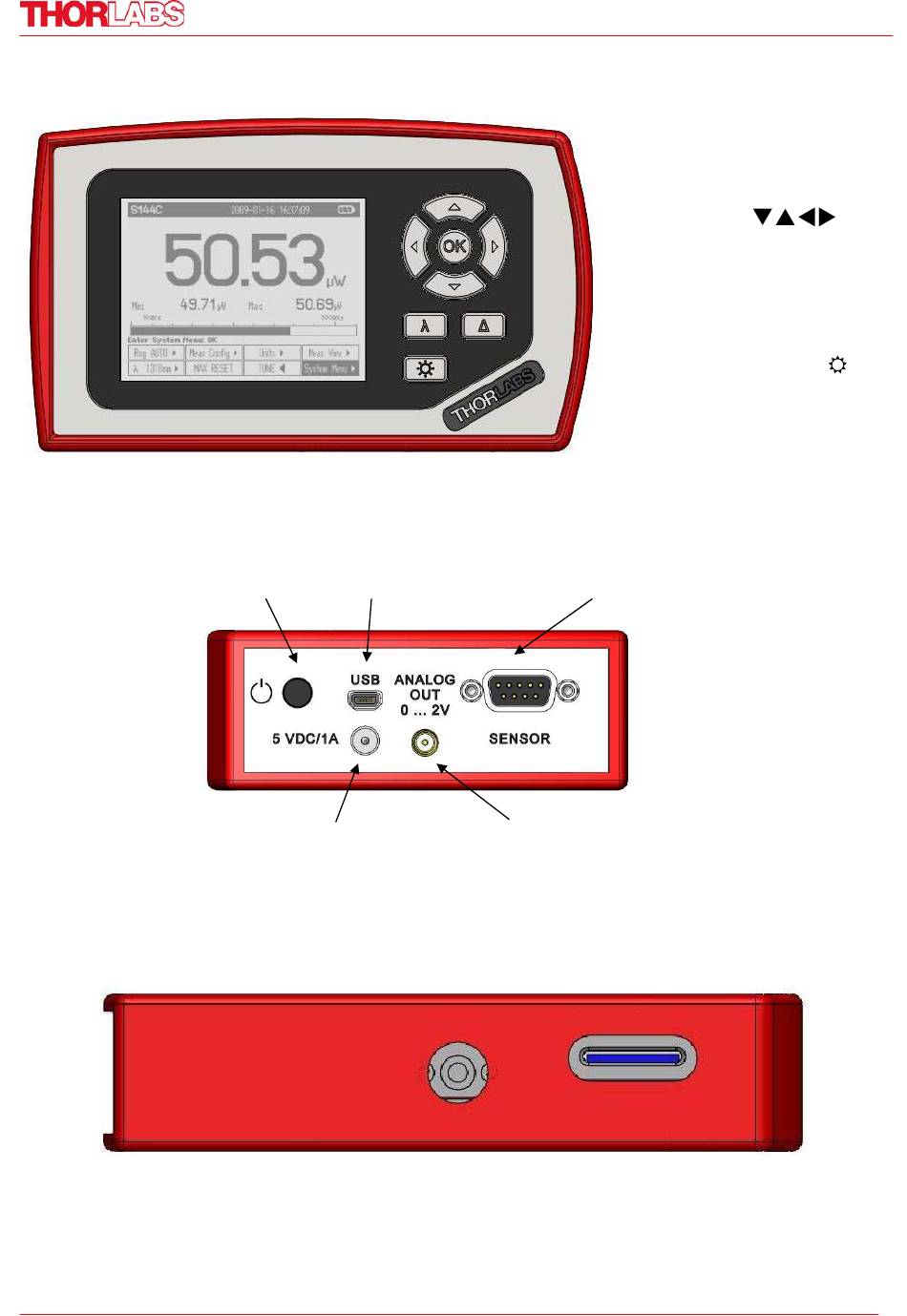

2.3 Physical Overview
On/Off Switch
4
Figure 1
USB Connector
DC Input (Charger)
Figure 2
Mounting Thread 1/4"-20
Figure 3
Front Panel
Sensor Connector
Analog Output (SMA)
Side Panel
SD Card Slot
Bottom View
Function Keys:
Navigation:
Enter/Edit:
Wavelength:
Relative Measure: Δ
Backlight:
(DB9 female)
OK
λ
