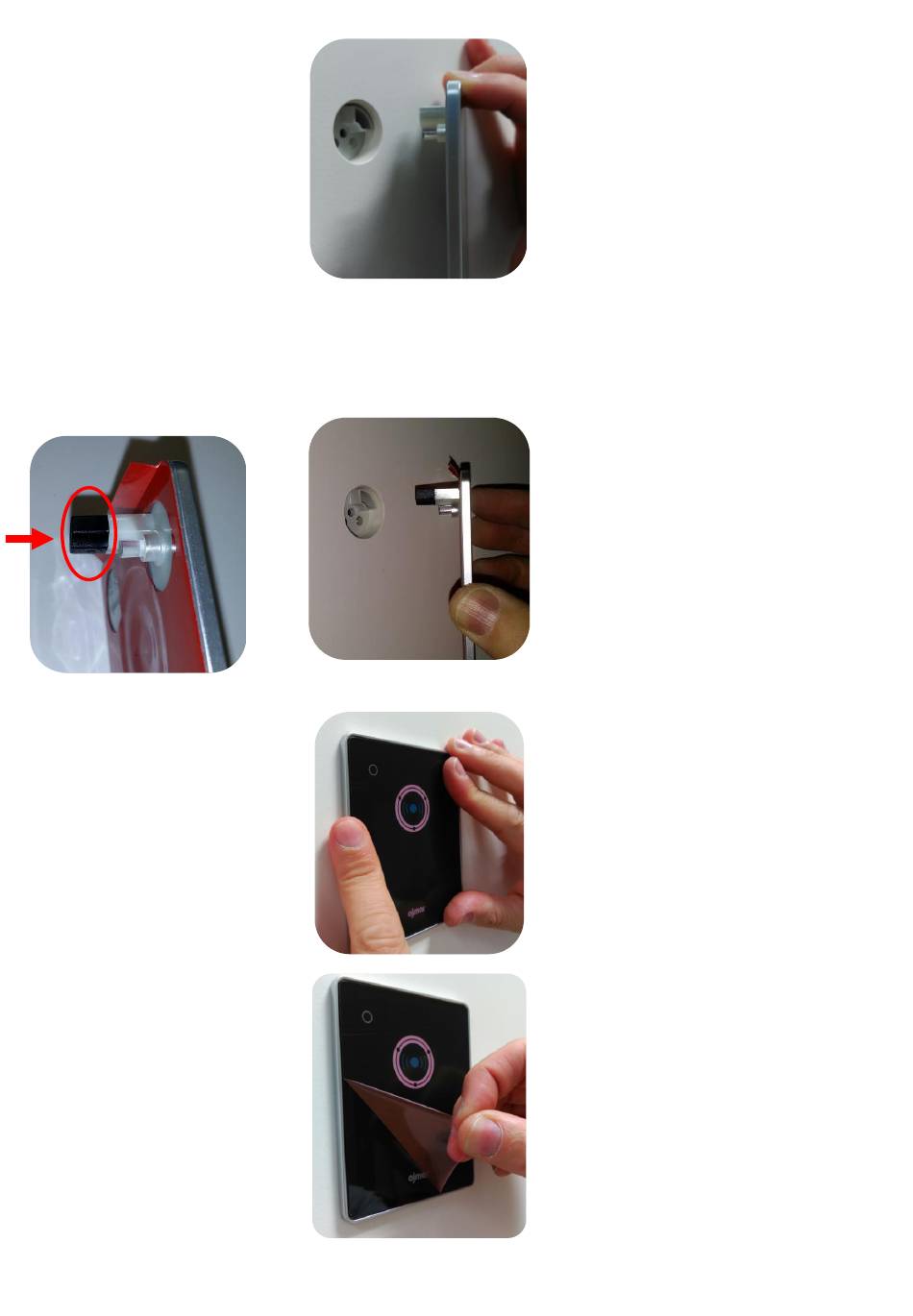

Insert front panel bulge
c.
in the hole connecting of
the lock and make sure
that the led viewer is
aligned with the locker
door.
NB: For door thickness between 14
mm. and 20 mm. (both included), fit
the adapter.
d. Press the front
firmly so that it is correctly
stuck in the door.
Remove the protective
e.
film from the
panel.
7. Remove plastic strip from the bottom side of the lock
NLX1_LOCK INSTALLATION AND ASSEMBLY
panel
front
