1.3. STEPS TO FOLLOW FOR ASSEMBLY

To assemble a NLX1 lock on a support or furnishing follow steps in this order:
1. Mark the holes according to Figure 1.4. Fixing holes must be done at the internal side of the locker door.
2. Drill the central hole of Ø23 (+0.1/0).
3. If necessary, drill the holes to fasten the lock.
Screw the lock with four fixing screws. Ensure that the plastic strip is visible after fixing the lock.
4.

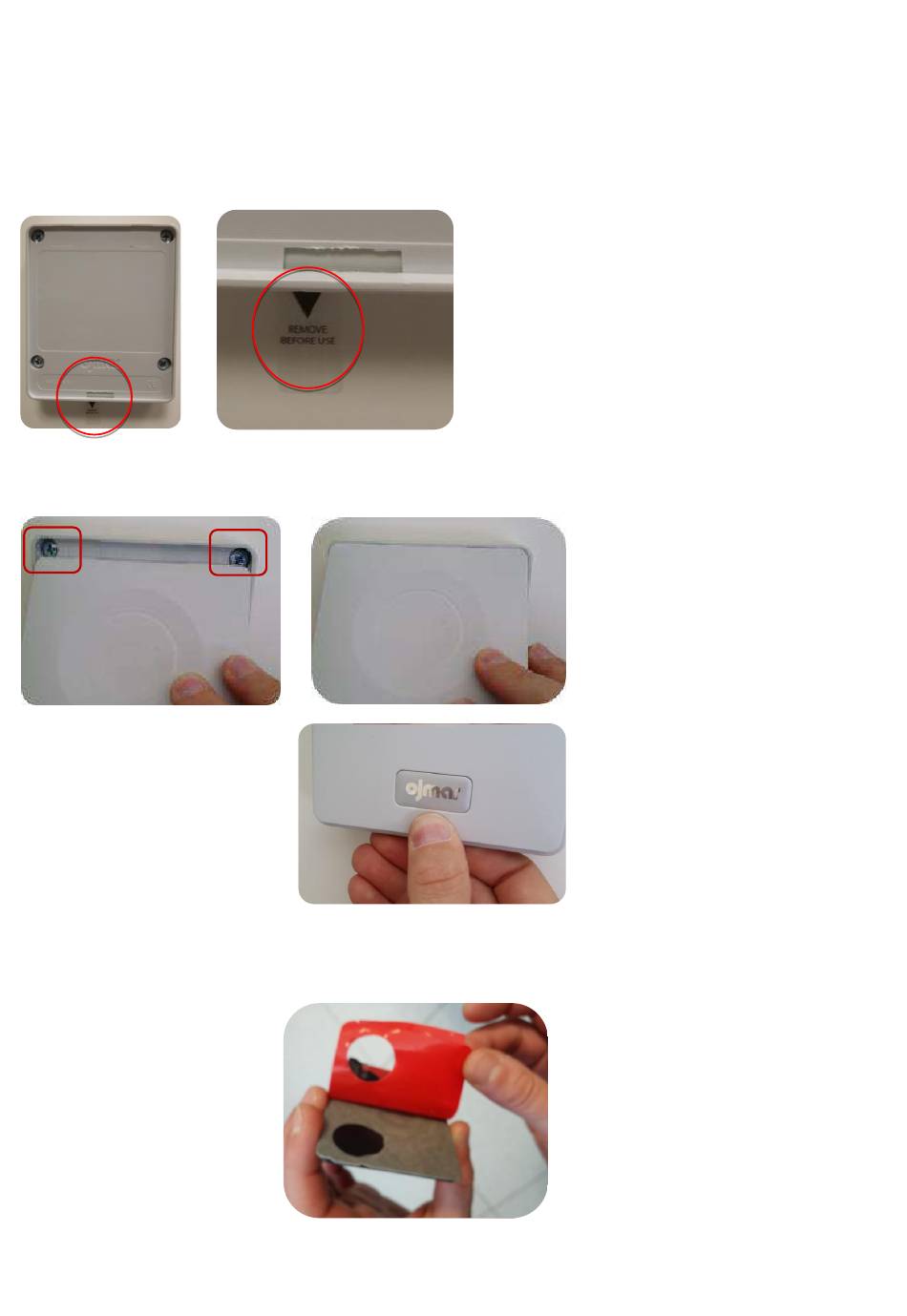

5. Assemble the rear cover:
a. Insert the two tabs of the cover at the top of the lock.
b. Press the cover at the bottom
for clipping the cover onto
the lock.
6. Assembly of the led viewer:
a. Clean the surface of the door and make sure it is dry.
b. Peel off the plastic film
from the emblem.
NLX1_LOCK INSTALLATION AND ASSEMBLY
Click!!!
OJMAR 5
