Ojmar NEXO NLX1 Assembly Instructions

NEXO
NLX1
®
ASSEMBLY INSTRUCTIONS

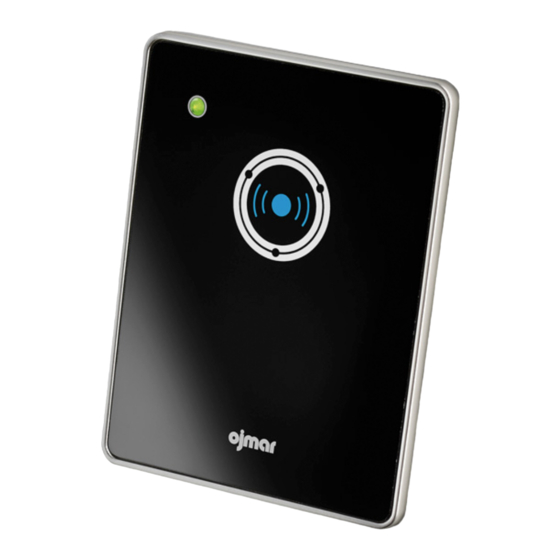

NEXO NLX1 LOCK INSTALLATION AND ASSEMBLY
The NEXO NLX1 lock can be installed on doors with thicknesses between 9 mm and 20 mm.
The assembly of the lock in the locker door must be correctly carried out to ensure the correct operation of the lock.
The positioning of the holes, the distance of the lock on the locker body and the distance of the lock to the locking device, as shown in designs 1.2 and
1.3, must be correctly measured to prevent any subsequent problems when locking.
LOCK DIRECTION
Lock installation must be carried
out with screws in four drilled
holes.
Lock assembly depending on if
it is right handed or left handed
is as follows.
CERRADURA DERECHA
NEXO NLX1
CERRADURA IZQUIERDA
TAQUILLA
PUERTA TAQUILLA
NEXO NLX1
