FRAME IT ALL Stack & Extend Manual page 6

JOINING MULIPLE ANIMAL BARRIER KITS - (continued)

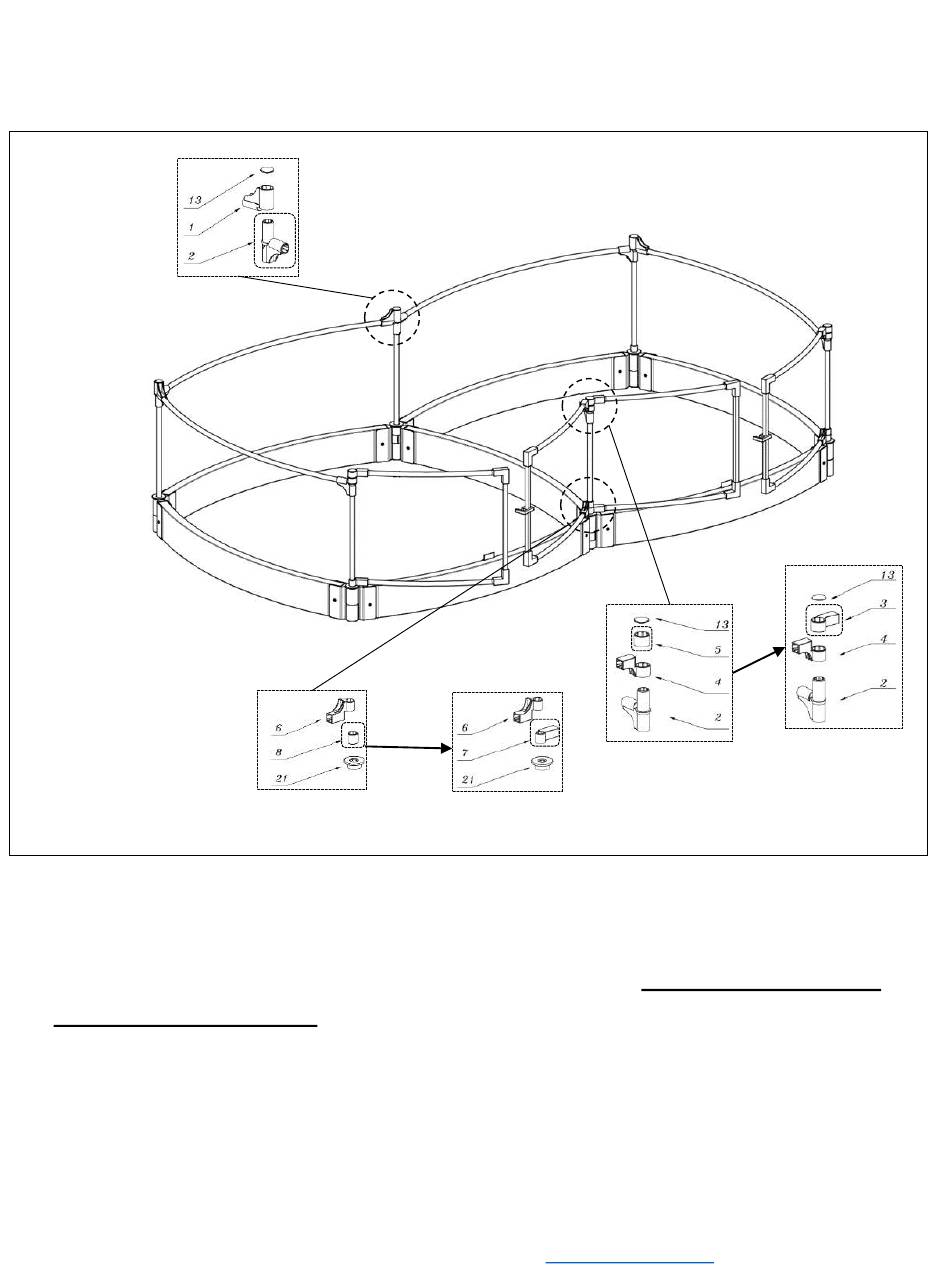

EXTENSION OPTION 2: PLACING THE GATES NEXT TO EACH OTHER
Remove Small Sleeve (8)
from the right gate of Kit
1 and replace it with
Gate Hinge (7) from the
Kit 2. The round tube
now supports the
bottom gate hinges from
both kits.
NOTE: When installing an extension kit on the left side of the Kit 1,
instead of on the right side as shown in the diagram, Large Sleeve (5)
from the right gate of Kit 1 will be replaced with Gate Hinge (4) from
the right gate of Kit 2.
Customer Service: 1800-914-9835 |
Remove Large Sleeve (5) from the right gate
of Kit 1 and replace it with Gate Hinge (3) from
the left gate of Kit 2.
