FRAME IT ALL 300001058 Assembly Instructions

300001058/300002058/300003058/300004058
300001425/300002425/300003425/300004425
300001424/300002424/300003424/300004424
300001080/300001084/300003084/300004084

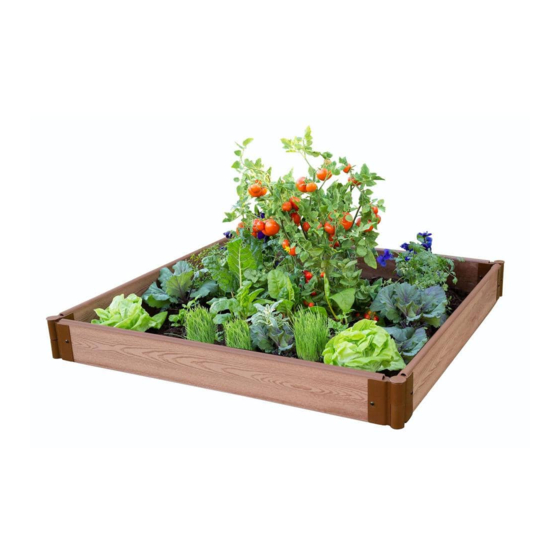

RAISED GARDEN BED
1 LEVEL KIT CONTAINS:
•
Composite timbers 4' x 4
•
Brackets x 8
•
**Stakes x 4
•
Plugs x 16
•
Caps x 4
Layout your timbers along the borderline
and connect each timber together by
inserting the top of the stake through the
bracket loops with the stake pointing to
the sky. This enables you to freely position
your border to get your desired location.
FOR INDOOR & HARD SURFACE:
If you plan to assemble raised bed on a hard surface, use
hacksaw to remove the spike of each stake. Use these cut
Trim stake spike with
down stakes for the base level only of your raised garden.
hacksawfor use indoor
or on hard surfaces
Customer Service: 1800-914-9835 |
support@frameitall.com
© Frame It All. All Rights Reserved.
4' x 4'
4 LEVELS
**NOTE
Stacking stakes can be used on all levels
and when creating additional levels.
ONLY Stacking Stakes can stack!
ASSEMBLY INSTRUCTIONS – For the First Level
STEP 1:
Assemble the timbers by sliding one end of timber into channel end
of one of the brackets. Use plugs to cover the holes on both sides to
lock the bracket in place.
Repeat this process on the opposite end of the timber flipping the bracket in the opposite
direction (see image). Repeat for all timbers.
STEP 2:
Layout the base level of your raised garden in a straight square shape, using 4 timbers.
Insert stake through the hole of the bracket and into each of the corners to lock all sides
in place.
ASSEMBLY INSTRUCTIONS – For Product with Two to Four Levels
STEP 3:
For the second level, use 4 timbers and the stacking stakes. Insert one stake through the
brackets into the hole on top of the stake beneath it to lock the second level in place.
LEVEL 3 & 4: Repeat step 3
Lastly, add the caps to each of the top corner joint.
How the Joints Work
Use a Cap to
complete the
top level.
Use stacking
stakes for
ground level
Use plugs (included)
frames and
Use plugs to
stacking to cover the holes on
cover the holes
additional levels.
– two plugs are
both side of timbers
required per
bracket (1 on
each side)
STEP 2a: For one level, add caps to each of the top
corner joints to finish off the raised garden.
HAPPY GARDENING!
Use stacking
stake when
creating a
multi-level
Stacking stake fit
into the tops other
Stacking stakes
