FRAME IT ALL 200001100 Quick Start Manual

200001100/200002100/200003100/200004100
200001101/200002101/200003101/200004101
200001102/200002102/200003102/200004102
200001103/200002103/200003103/200004103
RAISED GARDEN BED
1 LEVEL KIT CONTAINS:
•
Composite boards 2' x 2
•
Composite boards 4' x 4
•
Stacking Brackets x 12
•
Stacking Stakes x 6
•
Plugs x 24
•
Caps x 6
2 LEVEL KIT CONTAINS:
•
Composite boards 2' x 5
•
Composite boards 4' x 8
•
Stacking Brackets x 22
•
4-way Brackets x 4
•
Stacking Stakes x 12
•
Plugs x 52
•
Caps x 6
Layout your boards along the borderline and connect each board together by inserting
the top of the stake through the bracket loops with the stake pointing to the sky. This
enables you to freely position your border to get your desired location.
FOR INDOOR & HARD SURFACE:
If you plan to assemble raised bed on a hard surface, use
hacksaw to remove the spike of each stake. Use these cut
Trim stake spike with
down stakes for the base level only of your raised garden.
hacksawfor use indoor
or on hard surfaces
Customer Service: 1800-914-9835 |
support@frameitall.com
© Frame It All. All Rights Reserved.
2 LEVELS
3 LEVEL KIT CONTAINS:
•
Composite boards 2' x 7
•
Composite boards 4' x 12
•
Stacking Brackets x 34
•
4-way Brackets x 4
•
Stacking Stakes x 18
•
Plugs x 76
•
Caps x 6
4 LEVEL KIT CONTAINS:
•
Composite boards 2' x 10
•
Composite boards 4' x 16
•
Stacking Brackets x 44
•
4-way Brackets x 8
•
Stacking Stakes x 24
•
Plugs x 104
•
Caps x 6

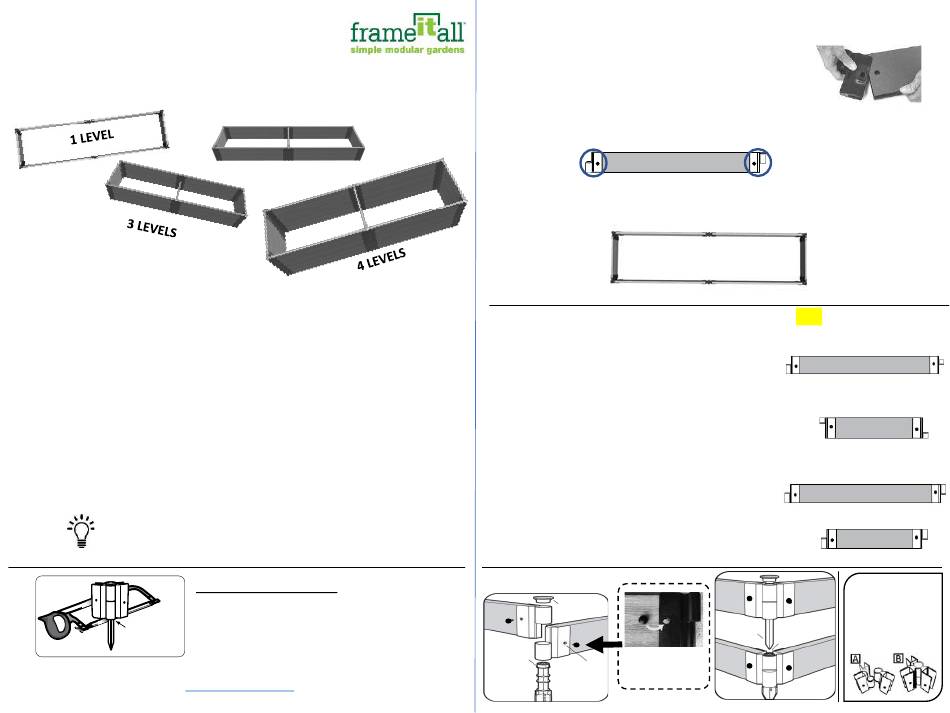

ASSEMBLY INSTRUCTIONS – Level 1
STEP 1:
Assemble the boards by sliding one end of board into channel end
of one of the brackets. Use plugs to cover the holes on both sides to
lock the bracket in place.
STEP 1a:
2' x 8'
Repeat this process on the opposite end of the board flipping the bracket in the
opposite direction (see image below). Repeat for 4 x 4ft boards & 2 x 2ft boards.
STEP 2:
Layout the base level of your raised garden in a straight rectangular shape, using 2 x 2' & 4 x
4' boards. Insert stake through the hole of the bracket and into each of the corners to lock
all sides in place.
STEP 2a: For one level, add caps to each of the top corner joints to finish off the raised garden.
ASSEMBLY INSTRUCTIONS – For Product with Two to Four Levels
STEP 3:
For the second level, connect 2 x 4ft boards with a
stacking bracket on one end and a mid-section 4-
way bracket on the other end in alternating
orientation.
Then, connect 1 x 2ft board with top 4-way brackets
on both ends in alternating orientation as shown to
the right. These 3 boards will be used to install the
cross board.
Connect 2 x 4ft boards with stacking brackets on
both ends as you did for the first level.
Finally, connect 2 x 2ft boards with stacking brackets
on both ends.
How the Joints Work
Use a Cap to
complete the
top level.
Use stacking
stakes for
ground level
frames and
Use plugs to
stacking
cover the holes
additional levels.
– two plugs are
required per
bracket (1 on
each side)
2 x
1 x
2 x
2 x
Use stacking
Stacking stake fit
stake when
into the tops other
creating a
Stacking stakes
multi-level
Use plugs (included)
to cover the holes on
both side of boards
A
B
C
D
3-Way Connection:
Combining one half of a
4-way bracket and a
stacking bracket (A), will
result in a 3-way
junction (B).
