FRAME IT ALL RAISED GARDEN BED Quick Start Manual

FRAME IT ALL RAISED GARDEN BED Quick Start Manual

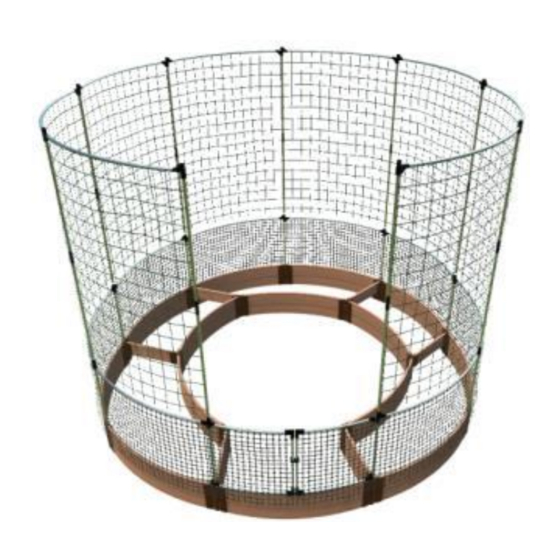

10' x 10' roundabout

Advertisement

Quick Links

RAISED GARDEN BED
Veggie Wall Garden
GARDEN BED KIT CONTAINS:
Composite Boards 2' x 8
Composite Curved Boards x 27
Cut Curved Board (Gate) x 2
Stacking Brackets x 48
4-way Bracing Brackets x 24
Stacking Stakes x 15
Anchor Stakes x 15
Plugs x 144
Finishing Caps x 15
Adapter cap x 9
Recommended Tools:
-
Hammer
-
Power Drill
-
Flathead Screwdriver
FOR INDOOR & HARD SURFACE:
If you plan to assemble raised bed on a hard surface, use
hacksaw to remove the spike of each stake. Use these cut
Trim stake spike with
down stakes for the base level only of your raised garden.
hacksawfor use indoor
or on hard surfaces
Customer Service: 1800-914-9835 |
support@frameitall.com
© Frame It All. All Rights Reserved.
TBD
10' x 10' Roundabout
Animal Barrier Garden
VEGGIE WALL COMPONENTS:
T-Connector x 9
L-connector x 7
Green Nylon Netting Bundle x 4
Cut Composite Board (Gate) x 8
Lower Tube x 9
Middle Tube x 9
Upper Tube x 9
Curved Horizontal Pole x 8
Zip tie Pack x 4
Layout your Boards along the borderline and connect each
Board together by inserting the top of the stake through the
bracket loops with the stake pointing to the sky. This enables
you to freely position your border to get your desired location.
Animal Barrier & Veggie Wall
Garden
ASSEMBLY INSTRUCTIONS – Level 1
STEP 1:
Assemble the Boards by sliding one end of Board into channel end
of one of the brackets. Use plugs to cover the holes on both sides to
lock the bracket in place. Connect the brackets with respect to the curvature of the board.
10
1. Connect
x 4ft Curved Boards with Stacking
brackets on both ends in alternating orientation.
2
2. Connect
x 2ft Boards with a stacking bracket on
one end and a mid-section 4-way bracket on the
other end in alternating orientation.
1
3. Connect
x 4ft Curved Board with stacking brackets
on both ends in the down position.
1
4. Connect
x 4ft Curved Board with stacking brackets
on both ends in the up position with respect to
the curve of the board.
1
5. Connect
x 4ft Curved Board with a top-section
4-way bracket on one end and a stacking bracket on
the other in the up position.
1
6. Connect
x 4ft Curved Board with a top-section
4-way bracket on one end and a stacking bracket on
the other end in alternating positions as shown to
the right
ANIMAL BARRIER COMPONENTS:
T-Connector x 9
L-Connector x 7
Black Netting Bundle x 3
AB Part 19-C x 8
AB Part 20 x 9
Zip tie Pack x 3
Gate Assembly Pieces
(see Animal Barrier assembly
section for details)
1
2
3
4
5
6
