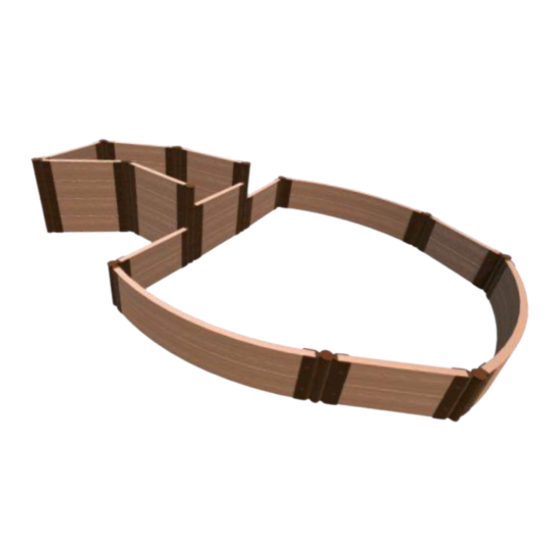

FRAME IT ALL Crooked Falls Assembly Instructions

70001042-MD250, 71001042-MD350
72001042-MD550, 73001042-MD750
70002042-MD250, 71002042-MD350
72002042-MD550, 73002042-MD750
1 LEVEL KIT CONTAINS:
•
3 x Composite Timbers 4' Curved
•
21 x Composite timbers 2' Straight
•
44 x Stacking Brackets
•
4 x 4-Way Bracing Brackets (1 Bag)
•
2 x Finishing Sleeves (1 Bag)
•
12 x Stacking Stakes (**See Note Below)
•
12 x Anchor/Ground Level Serrated Stakes
•
72 x Plugs/Locking Nubs
•
12 x Caps
•
2 x Rubber Liners (Pond/Waterfall)
•
2 x Underlayments (Pond/Waterfall)
•
1 x Water Pump
•
1 x Pump Tubing
Required Tools:
•
Shovel
•
Levelling tool
•
Hammer
Recommended Tools:
•
Pond Safe Foam
Sealant
•
Grading Rake
**NOTE
Stacking stakes should only be used
when stacking boards for water
garden application.
ONLY Stacking Stakes can stack!
Customer Service: 1800-914-9835 |
support@frameitall.com
© Frame It All. All Rights Reserved.
Water Garden
Crooked Falls
2 LEVEL KIT CONTAINS:
•
6 x Composite Timbers 4' Curved
•
31 x Composite timbers 2' Straight
•
66 x Stacking Brackets
•
8 x 4-Way Bracing Brackets (2 Bags)
•
2 x Finishing Sleeves (1 Bag)
•
24 x Stacking Stakes (**See Note Below)
•
12 x Anchor/Ground Level Serrated Stakes
•
112 x Plugs/Locking Nubs
•
12 x Caps
•
2 x Rubber Liners (Pond/Waterfall)
•
2 x Underlayments (Pond/Waterfall)
•
1 x Water Pump
•
1 x Pump Tubing
IMPORTANT: READ ALL
INSTRUCTIONS BEFORE
STARTING YOUR BUILD!

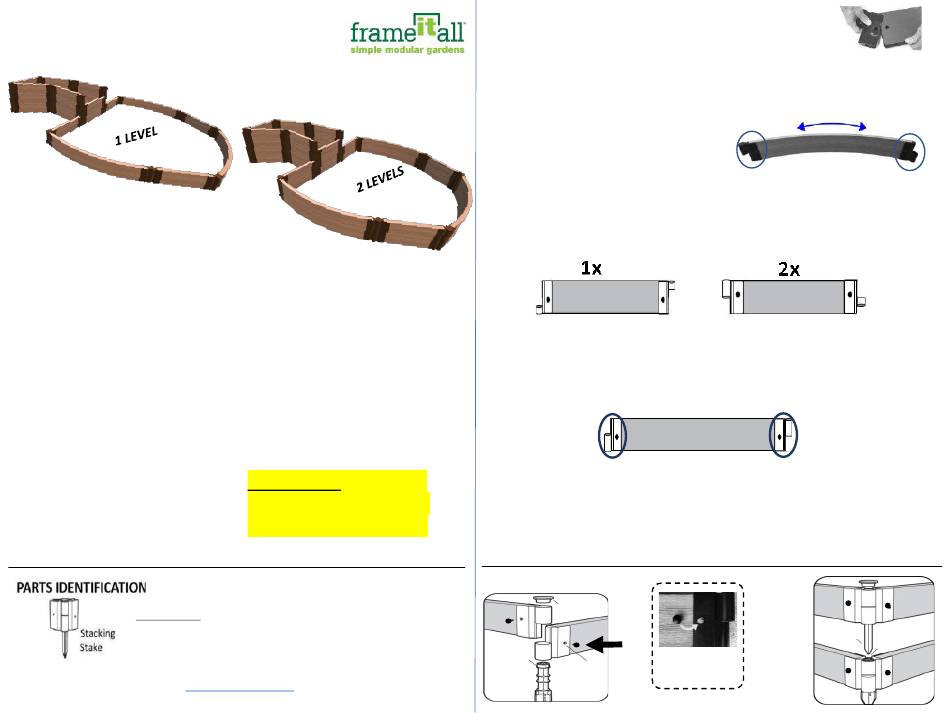

ASSEMBLY INSTRUCTIONS – Building the Frame
STEP 1a:
Assemble the curved timbers by sliding one end of the timber into the channel end of one
of the brackets. Use plugs to lock the bracket in place.
Repeat this process on the other end of the timber flipping the bracket in the opposite
direction. Make sure that all your curved timbers have brackets connected in the same
way with relation to the curve.
(see example). Repeat for all curved timbers.
STEP 1b.
For a 1 level pond design, connect a 2ft board with 2 x 4-way brackets as shown and 2
x 2ft boards with a 4-way bracket on one end and a normal bracket on the other end as
shown. For 2 level, double these board amounts.
(See example).
STEP 1c.
Connect all other 2ft boards with brackets with each side having a bracket oriented the
opposite way.
(See example). Repeat for all remaining 2ft timbers.
How the Joints Work
Use a Cap to
complete the
top level.
Use anchor
stakes for
ground level
Use plugs (included)
frames and
Use plugs to
to cover the holes on
stacking stakes
cover the holes
for additional
– two plugs are
both side of timbers
levels.
required per
bracket (1 on
each side)
Use stacking
stake when
creating a multi-
level
