- Page 1 ISC-007BW Smoker Controller...
- Page 2 Contents Introduction --------------------01 Specification -------------------03 Wireless Connection -----------04 Precautions --------------------08...
-
Page 3: Introduction

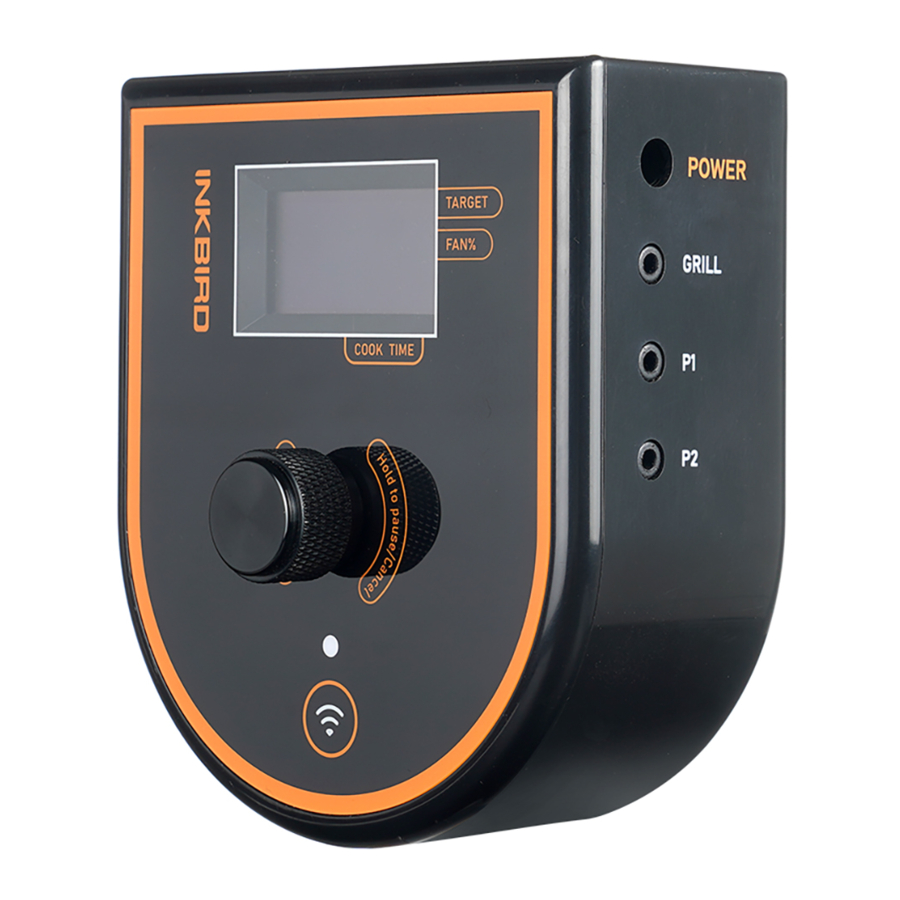

Introduction 1.1 Description Press the knob to enter menu or confirm selection. Turn the knob to change between selections. Hold the knob to exit the menu page and back to home screen. Hold the knob to pause the fan before opening the lid. Power Port P1 Ambient Probe P2 Food Temp Probe... - Page 4 Place the smoker controller on a stable and firm surface. Let the controller gradually increase the temperature, it will take 30-45 minutes to stabilize the grill temperature. 1.3.2 Menu Setting Click the Knob to enter Main Menu. Manual Fan Set Alert Reset Select “Reset”...
-
Page 5: Specification
on smaller grills. Please set the fan, the temperature alarm, the temperature unit, the furnace size manually according to the above operations. Specification Input voltage: AC 120v 60Hz (US), AC 220~240v 50Hz(EU, UK, AU) Short Time Measurement Range: from 0℃ to 300℃(32℉~572℉) Continuous Monitoring Range: from 0℃... -
Page 6: Wireless Connection
Wireless Connection 3.1 Get Inkbird Pro app for your phone Search the Inkbird Pro app from Google Play or App Store to download it for free, or you can scan the QR code to download it directly. Android Scan QR code to download Inkbird Pro APP 3.2 Account Registration... - Page 7 3.3 Wi-Fi Connection 3.3.1 Connect to your phone 1. Plug in the Inkbird ISC-007BW smoker controller, the smoker controller will turn on automatically. 2. Open the app and click “+” to start the connection, check if the Wi-Fi icon of the...
- Page 8 password. Go back to the app and enter the automatic connection interface to click “Done”. 4. Connection succeed. 3.3.3 Wi-Fi Reset Press and hold the “Wi-Fi” button for 5 seconds to reset the Wi-Fi, then repeat the steps to connect with your phone. 3.4 Bluetooth Connection 1.
- Page 9 3.5 Main Interface of the ISC-007BW Smoker Controller on Inkbird Pro Connection Status High Temperature Alarm Setting Stove Size Current Temperature Target value of the Stove Fan Output Run Time Fan Output Rate Fan Output Control Switch Stove Control Setting...
-
Page 10: Precautions
Precautions The maximum temperature for short time measurement is 300℃/572℉ and the maximum temperature for long time measurement is 250℃/482℉, the probe and the metal wire will be burned out if the temperature go beyond the maximum number. Do not put probes or metal wire into fire or contact the heating tube directly. - Page 12 INKBIRD TECH.C.L Support@ink-bird.com www.ink-bird.com +86-755-25738050 Shenzhen,GD,518000,China...
- Page 13 尺寸：80x160mm 印刷：骑马钉...
