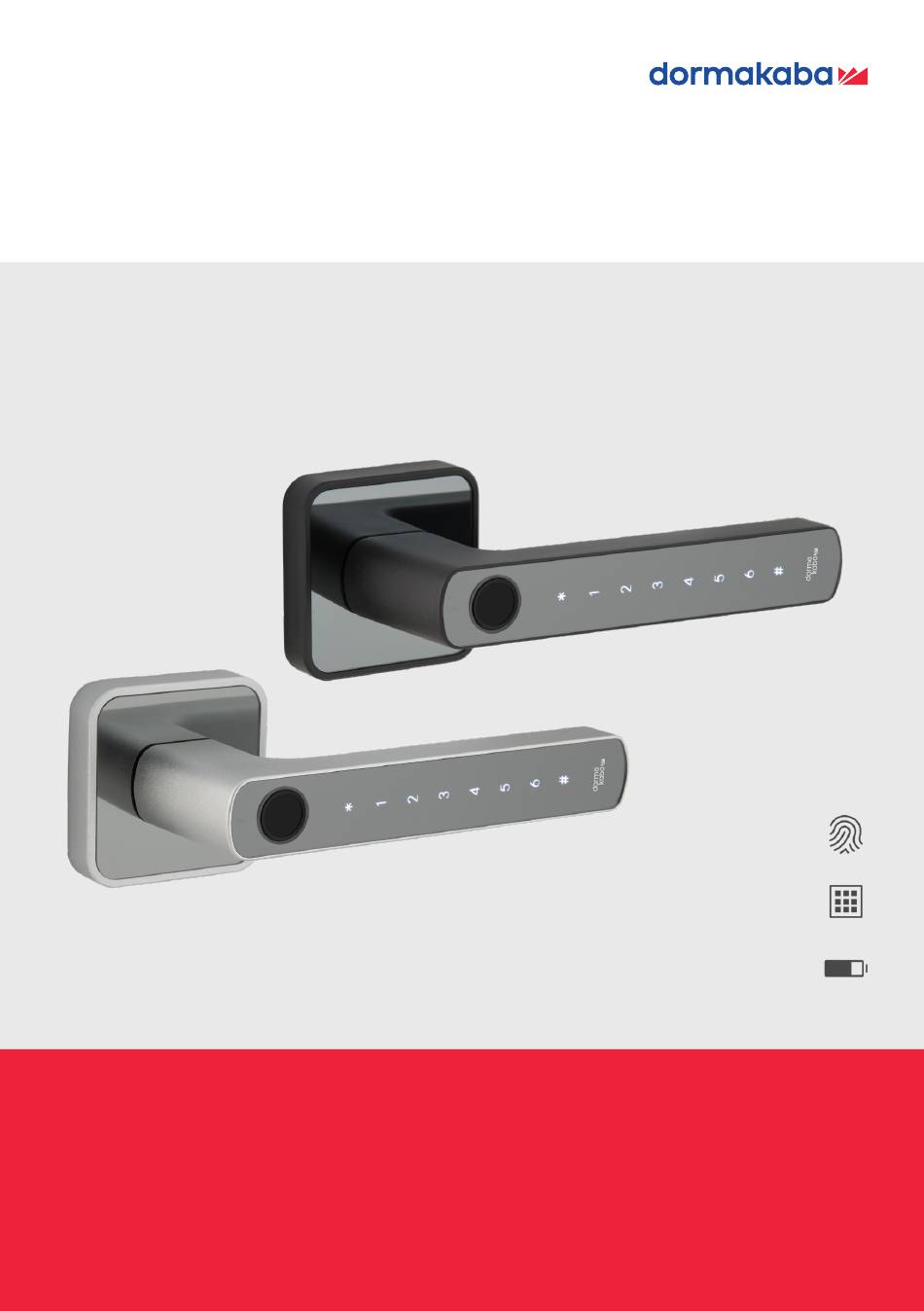

- Page 1 Rosé User‘s Guide...

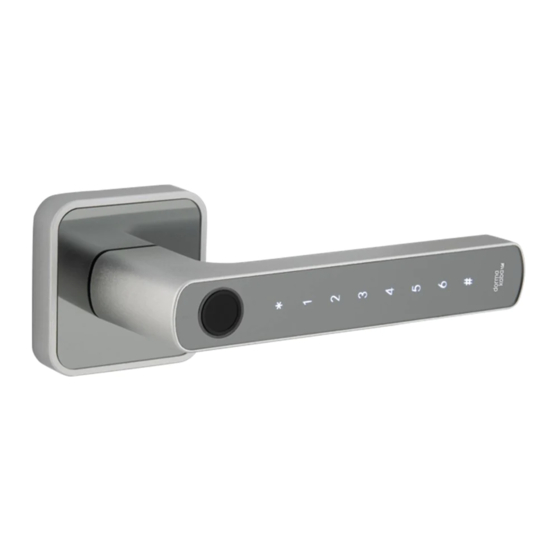

- Page 2 Outside Lever Code key pad USB-Type C Fingerprint sensor Inside Lever Reset button Battery case...
-
Page 3: Installation Instructions
The lock is powered by 3 AAA alkaline batteries (included). A USB-Type C port is at the end of the outside handle for emergency power supply. The Rose lock has three possible modes: Standard mode: single code/fingerprint needed to unlock... - Page 4 Screw holes Screw the two (2) posts (groove side) Place the inside lever onto the door. onto the small black screws attached to Line up holes with posts, then using the inside face of the outside lever. the two (2) screws provided, secure the Place the outside lever onto the door inside and outside levers onto the door.
- Page 5 1. Register Master Codes 1.1 Register Master Code for a brand new lock or after factory reset The following procedure is only required when the Rosé lock is brand new or after the lock has been factory reset. Note: The programming of user codes or fingerprints cannot be made until a new master code has been created.
- Page 6 1. Register Master Codes 1.2 Register Second Master Code (optional) Note: Keep the door open while master codes are being created. Step 1 Step 2 MASTER CODE • Wake up the key pad by touching any of • Enter the master code created in step 1.1 the numbers.
- Page 7 2. Register Users 2.1 Register User Fingerprint Please make sure a master code is registered in the lock. Step 1 Step 2 MASTER CODE • Wake up the key pad by touching any of • Enter the 6 to 10 digit master code the numbers.
- Page 8 2. Register Users 2.2 Register User Codes Please make sure a master code is registered in the lock. Step 1 Step 2 MASTER CODE • Wake up the key pad by touching any of • Enter the 6 to 10 digit master code the numbers.
- Page 9 3. Delete User Codes and Fingerprints Please make sure the master code is registered in the lock. Step 1 Step 2 MASTER CODE • Wake up the key pad by touching any of • Enter the 6 to 10 digit master code the numbers.
- Page 10 3. Delete User Codes and Fingerprint continued... Use this option to delete a single user Step 4 Note: Go to step 4a to delete single user or 4b to delete single fingerprint • Audible message - “1 to delete a single user”...
- Page 11 3. Delete User Codes and Fingerprint continued... Use this option to delete all users Step 5 • Audible message - “2 to delete all normal users” • Press 2 to delete all users (fingerprints and codes) • Audible message - “delete users, press # key to confirm”...
-
Page 12: Passage Mode
4. Passage Mode When the lock is required to unlock frequently, set the lock in passage mode. Step 1 Step 2 MASTER CODE • Wake up the key pad by touching any of • Enter the 6 to 10 digit master code the numbers. - Page 13 5. Dual User Mode To activate the dual user mode a combination of either two different codes or two different fingerprints or a code and a fingerprint is needed. Step 1 Step 2 MASTER CODE • Wake up the key pad by touching any of •...
-
Page 14: Volume Settings
6. Volume Settings Please make sure the master code is registered in the lock. Step 1 Step 2 MASTER CODE • Wake up the key pad by touching any of • Enter the 6 to 10 digit master code the numbers. Press * and then # •... - Page 15 7. Reset Lock To Factory Settings The lock can be restored to its factory default settings. Step 1 • Press the reset key in the inside handle for 8 seconds to reset the lock to factory default settings • Audible message - “initialised successfully” User Code List There are 202 code users (included 2 master code) available on the Rosé...
-
Page 16: Menu Summary
Menu summary Creating a master code after factory reset or brand new lock New 6 to 10 New 6 to 10 digit master digit master code code Adding a second master code (optional) Enter 6 to 10 New 6 to 10 New 6 to 10 digit master digit master... - Page 18 BACK OF FITTING TEMPLATE...
- Page 19 Products will be free from defects for a period of 1 year. 1. If a defect covered by warranty appears before the end of the Warranty Period, then dormakaba will, in its sole discretion, either: (a) replace or repair the Product or the defective part of the Product free of charge;...
- Page 20 Australia dormakaba New Zealand Head Office Head Office 12-13 Dansu Court Building P, 61-69 Patiki Road Hallam VIC 3803 Avondale, Auckland 1026 T: 1800 675 411 T: 0800 436 762 info.au@dormakaba.com info.nz@dormakaba.com www.dormakaba.co.nz www.dormakaba.com.au DDL -Rosé Users Guide_A4_AU_NZ_JULY 2021 - DDL00002. Subject to technical alterations.
