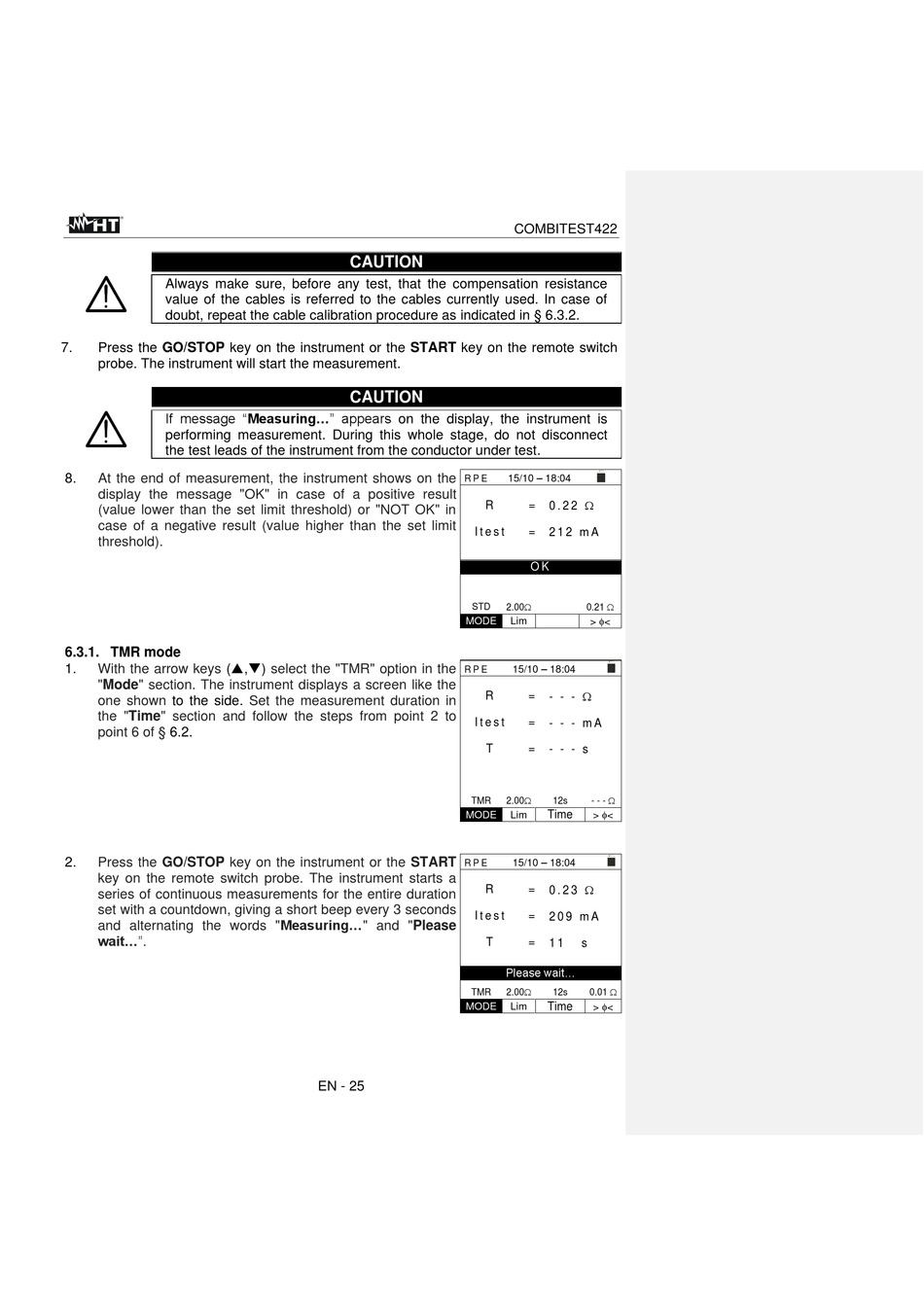

Tmr Mode - HT COMBITEST422 User Manual

Always make sure, before any test, that the compensation resistance
value of the cables is referred to the cables currently used. In case of
doubt, repeat the cable calibration procedure as indicated in § 6.3.2.
7. Press the GO/STOP key on the instrument or the START key on the remote switch
probe. The instrument will start the measurement.
If message "Measuring..." appears on the display, the instrument is
performing measurement. During this whole stage, do not disconnect
the test leads of the instrument from the conductor under test.
8. At the end of measurement, the instrument shows on the
display the message "OK" in case of a positive result
(value lower than the set limit threshold) or "NOT OK" in
case of a negative result (value higher than the set limit
threshold).

6.3.1. TMR mode

1. With the arrow keys (,)
"Mode" section. The instrument displays a screen like the
one shown to the side.
the "Time" section and follow the steps from point 2 to
point 6 of § 6.2.
2. Press the GO/STOP key on the instrument or the START
key on the remote switch probe. The instrument starts a
series of continuous measurements for the entire duration
set with a countdown, giving a short beep every 3 seconds
and alternating the words "Measuring..." and "Please
wait...".
CAUTION
CAUTION
select the "TMR" option in the
Set the measurement duration in
EN - 25
COMBITEST422
15/10 – 18:04
R P E
0 . 2 2 
R =
I t e s t =
2 1 2 m A
O K
0.21 
STD 2.00
> <
MODE Lim
15/10 – 18:04
R P E
- - - 
R =
I t e s t =
- - - m A
T =
- - - s
- - - 
TMR 2.00 12s
> <
Time
MODE Lim
15/10 – 18:04
R P E
0 . 2 3 
R =
I t e s t =
2 0 9 m A
T =
1 1 s
Please wait...
0.01 
TMR 2.00 12s
> <
Time
MODE Lim
