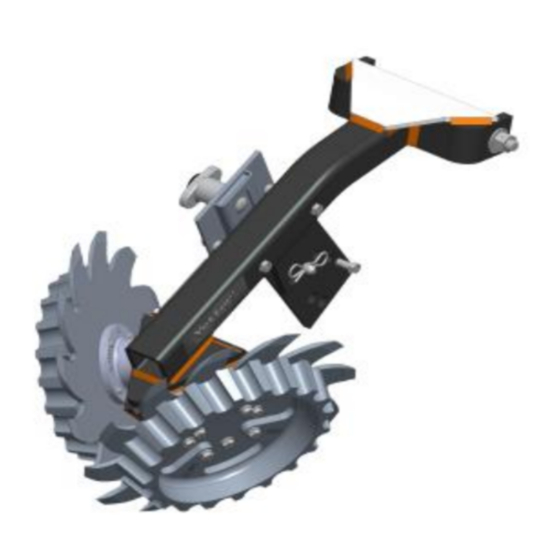

2959 OFFSET INJECTION COULTER
OPERATOR'S / INSTRUCTION MANUAL
YETTER MANUFACTURING CO.
FOUNDED 1930
Colchester, IL 62326-0358
Toll free: 800/447-5777
309/776-3222 (Fax)
Website:
www.yetterco.com
E-mail:
info@yetterco.com
2967-180B
RESIDUE MANAGER
FOR
W/ PARTS IDENTIFICATION
2565-483_REV_E
06/2021
Advertisement
Related Manuals for Yetter 2967-180B
Summary of Contents for Yetter 2967-180B
- Page 1 2967-180B RESIDUE MANAGER 2959 OFFSET INJECTION COULTER OPERATOR’S / INSTRUCTION MANUAL W/ PARTS IDENTIFICATION 2565-483_REV_E 06/2021 YETTER MANUFACTURING CO. FOUNDED 1930 Colchester, IL 62326-0358 Toll free: 800/447-5777 309/776-3222 (Fax) Website: www.yetterco.com E-mail: info@yetterco.com...
-
Page 3: Safety
SAFETY A brief description of signal words that may be used in this manual: CAUTION: Used as a general reminder of good safety practices or to direct attention to unsafe practices. WARNING: Denotes a specific potential hazard. DANGER: Denotes the most serious specific potential hazard. SAFETY PRECAUTIONS You can make your farm a safer place to live and work if you observe the safety precautions given. -
Page 4: Table Of Contents
TABLE OF CONTENTS FOREWORD…………………………………………………………….2 SAFETY…………………………………………………………………3 TABLE OF CONTENTS………………………………………………..4 ASSEMBLY INSTRUCTIONS……………………………………….5-8 OPERATION……………………………………………….………..…..9 MAINTENANCE………………………………………………..…..…10 TROUBLESHOOTING………………………………………………..11 PARTS IDENTIFICATION………………………………………..12-15... -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS GENERAL INFORMATION Examine all equipment carefully for damage or shortages. Lubricate all bearings and moving parts as assembled. Reference to front, rear, left and right in this installation instruction are made when sitting in the operator’s seat facing direction of forward travel. BOLT TORQUE READ THESE INSTRUCTIONS FIRST: 1. - Page 6 ASSEMBLY INSTRUCTIONS WARNING: NEVER WORK UNDER THE EQUIPMENT WHILE IN A RAISED POSITION WITHOUT USING SAFETY LOCK UPS. FAILURE TO DO SO MAY LEAD TO PERSONAL INJURY OR DEATH. STEP 1. Remove the coulter blade from the 2959 hub-assembly before attaching the residue manager bracket.
- Page 7 ASSEMBLY INSTRUCTIONS STEP 2. Attach the 2959-206 R.M. arm to the coulter arm using the 5/8” x 9” bolt, 4) 5/8” flat washers, 2) pivot bushings (2967-553) and 5/8” lock hex nut. STEP 3. Insert the adjustment pin into the arm and the Adjustment Plate. Check the alignment of all the adjustment holes, move adjustment plate as needed then securely tighten the 5/8”...
- Page 8 ASSEMBLY INSTRUCTIONS STEP 4. Attach the 2967-181 Quick Adjust Assembly to the residue manager arm using 2) 3/8” x 3 1/4” bolts, 2) spacer bushings and 3/8” lock hex nuts. STEP 5. Fasten the R.M. wheel assemblies to the 2959-206 R.M. arm using 5/8” lock washers and 5/8”...
-
Page 9: Operation
OPERATION Where rocks are present the residue manager should be set in the “float” CAUTION: position, not locked down. STEP 1. Adjust the residue manager to move crop residue aside and not move any soil. Adjustments to the residue manager may have to be made when changing field conditions and type and amount of residue. -
Page 10: Maintenance
Clean machine thoroughly to remove all dirt, debris and crop residue, which would hold moisture and cause rusting. Inspect machine for worn or broken parts. See your Yetter Farm Equipment dealer during the off-season so that parts or service can be acquired when machine is not needed in the field. -
Page 11: Troubleshooting
Consult your planter operator’s manual for the proper height adjustment of the hitch. Note – The drawbar extension kit (6600-128) offered by Yetter Mfg. Co. may be used to alleviate the condition shown in figure B. - Page 12 PARTS IDENTIFICATION...
- Page 13 PARTS IDENTIFICATION...
- Page 14 PARTS IDENTIFICATION 2966-140-ST-FW 2966-140-BW-FW...
-
Page 15: Parts Identification
PARTS IDENTIFICATION 2966-141-FW... - Page 16 2565-483_REV_E 06/2021...
