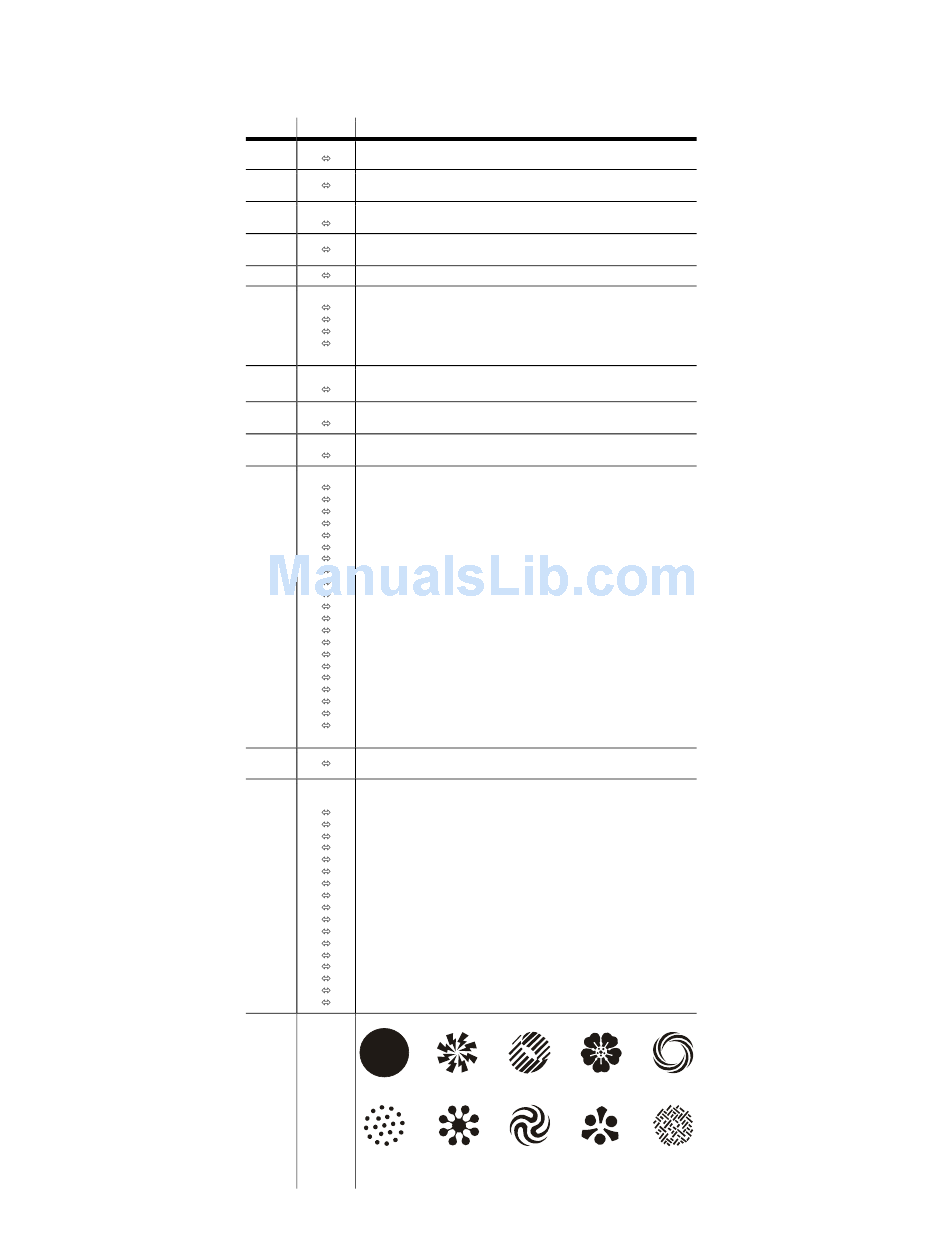

Chauvet MiN Spot Supplementary Manual

DMX Channel Values (13 Channel)
C
HANNEL
1
2
3
4
5
6
7
8
9
10
11
12
13
MinSpot
V F
ALUE UNCTION
Pan
000 255
Pan Fine
000 255
Tilt
000 255
Tilt Fine
000 255
255 Vector Speed: (Normal → Slow)
000
Dimmer/Strobe
000 007 Closed
008 134 100-0%
Strobe (slow → fast)
135 239
240 255 Open
Red
000 255 0-100%
Green
000 255 0-100%
Blue
000 255 0-100%
Color Macros
000 007 No Function
008 018 Magenta
019 031 Purple
032 043 Orange
044 055 Pink
056 067 Yellow
068 079 Pale Green
080 091 Light Blue
092 103 Teal
104 115 Sky Blue
116 127 Blue
128 139 Olive
140 151 Turquoise
152 163 Orange
164 175 Yellow
176 187 Magenta
188 199 White
200 212 Color-Change Macro 1
213 225 Color-Change Macro 2
226 239 Color-Change Macro 3
240 255 Color-Change Macro 4
000 255 Vector Speed (Color)
Movement Macros
000 007 No Function
008 022 Auto Program 1
023 037 Auto Program 2
038 052 Auto Program 3
053 067 Auto Program 4
068 082 Auto Program 5
083 097 Auto Program 6
098 112 Auto Program 7
113 127 Auto Program 8
128 142 Sound Active1
143 157 Sound Active 2
158 172 Sound Active 3
173 187 Sound Active 4
188 202 Sound Active 5
203 217 Sound Active 6
218 232 Sound Active 7
233 255 Sound Active 8
Gobo
0~12 13~25
65~77 78~90
Scrolling Gobo Effect slow → fast
128-255
14
26~38 39~51 52~64
91~103 104~116 117~127
2007-08-23/15:49
